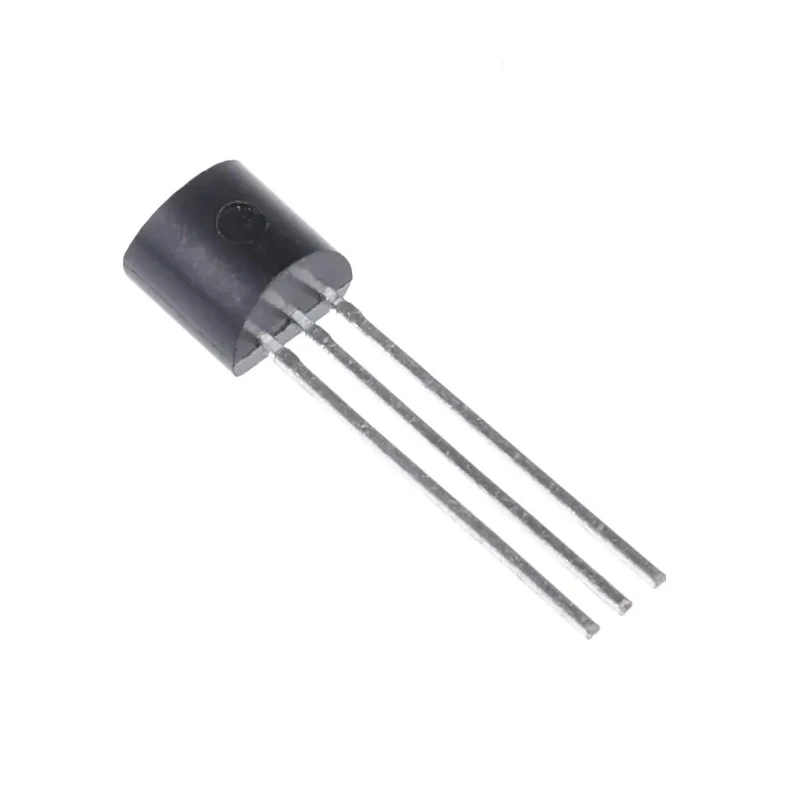

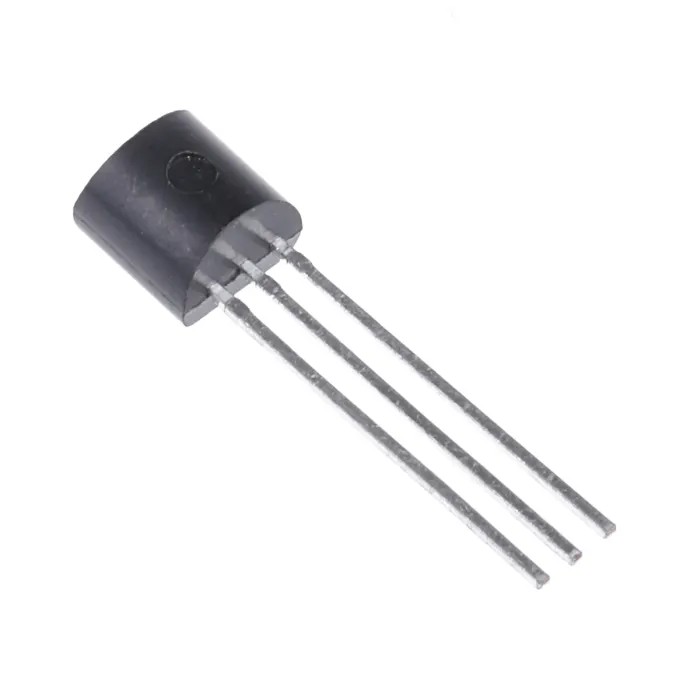

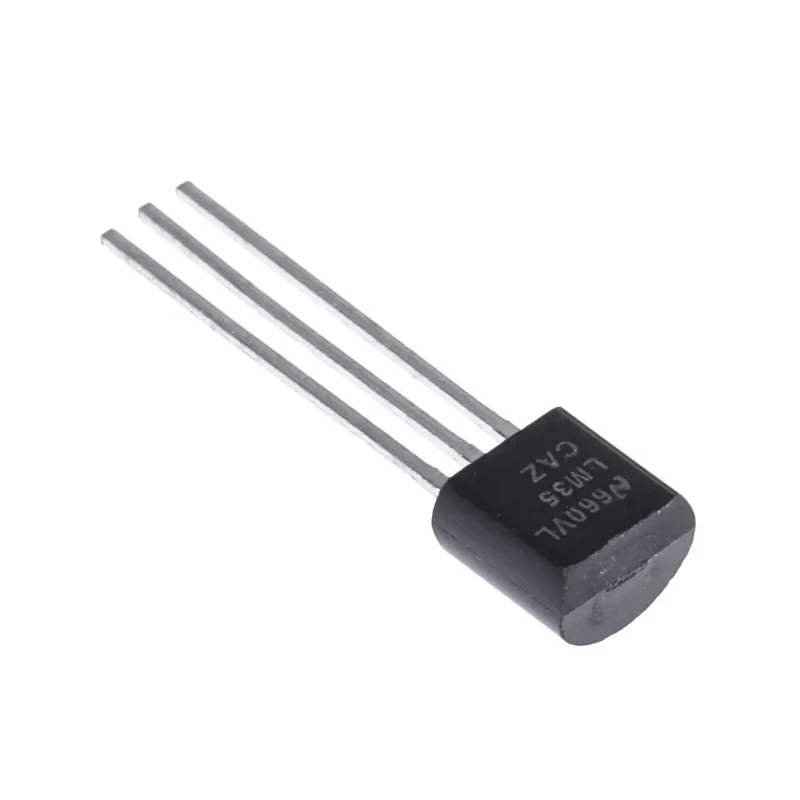

Texas Instruments Voltage Output Temperature Sensor, Through Hole Mount, Analogue, ±0.2°C Accuracy, 3-Pin TO-92 LM35
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | ±0.2°C |
| Brand | Texas Instruments |
| Height | 5.2mm |
| Temperature range | -40 to +110°C (LM35C), 0 to +100°C (LM35D) |
| Length | 5.2mm |
| Model | LM35 |
| Width | 4.19mm |
| Mount Type | Through Hole |
| Output type | Voltage |
| Series | LM35 |
| Maximum Operating Temperature | 110°C |
| Package Type | TO-92 |
| Sub Type | Temperature Sensor |
| Minimum Operating Temperature | -40°C |
| Supply Voltage | +4V to +30Vdc |
| Interface Type | Analogue |
| Pin Count | 3 |
| Maximum Supply Voltage | 30V |
| Minimum Supply Voltage | 4V |
| Sensor Gain | 10mV/°C |
Key Features
- The sensor operates with a supply voltage range from 4 V to 30 V.
- It is designed for through hole mounting with a compact 3-pin TO-92 package.
- The device measures temperature from -40°C to 110°C with a sensor gain of 10mV/°C.
- Low self-heating of 0.08°C in still air ensures minimal measurement error.
- Suitable for various electronic applications requiring precise temperature monitoring.
- Compact dimensions of 5.2 mm height, 5.2 mm length, and 4.19 mm width.
- The sensor offers reliable operation over a wide temperature range and robust analogue interface.
Product Description
Texas Instruments LM35 is a high-precision analogue temperature sensor providing voltage output proportional to measured temperature. This through hole mounted sensor features a 3-pin TO-92 package and operates with supply voltages from 4 V to 30 V, making it versatile for multiple applications.
Designed for temperature sensing tasks in home appliances, mobile devices, gaming consoles, disk drives, battery management systems, portable medical instruments, and printers, it delivers accurate readings with ±0.2°C accuracy. The sensor’s 10mV/°C gain facilitates straightforward temperature conversion and integration with electronic circuits.
The operating temperature range spans -40°C to +110°C, supporting challenging environments. Low self-heating of 0.08°C reduces measurement distortion, enhancing reliability. Its compact dimensions (5.2 mm height and length, 4.19 mm width) enable seamless PCB implementation.
The LM35 sensor outputs analogue voltage directly proportional to Celsius temperature, calibrated for precise centigrade monitoring. It requires minimal external components and provides easy signal interfacing for industrial, laboratory, HVAC, and manufacturing temperature monitoring systems.
The sensor operates with supply voltages between 4 V to 30 V. It has a temperature accuracy of ±0.2°C. Supports measurement range from -40°C to 110°C. Low power consumption and low self-heating characteristics ensure stable operation.
Compact 3-pin TO-92 package facilitates through hole mounting. The output is an analogue voltage proportional to temperature with a 10mV/°C gain.
Use the Texas Instruments LM35 sensor for precise temperature measurement needs in electronic circuits and embedded systems. Explore more Temperature Sensors and electronic components within EnvMart’s Sensors category to meet your project requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The sensor measures temperature from -40°C to +110°C.
It has an accuracy of ±0.2°C.
This model provides an analogue voltage output that is proportional to the measured temperature.
It operates with a supply voltage range from 4 V to 30 V.
The sensor has compact dimensions of 5.2 mm in height, 5.2 mm in length, and 4.19 mm in width.
The sensor has a gain of 10mV/°C, facilitating straightforward temperature conversion.
The sensor has a low self-heating of 0.08°C in still air, which minimizes measurement error.
It is designed for through hole mounting with a 3-pin TO-92 package.
It is suitable for various electronic applications including home appliances, mobile devices, and battery management systems.
The maximum operating temperature is 110°C.
The minimum operating temperature is -40°C.
This model features a 3-pin configuration.
