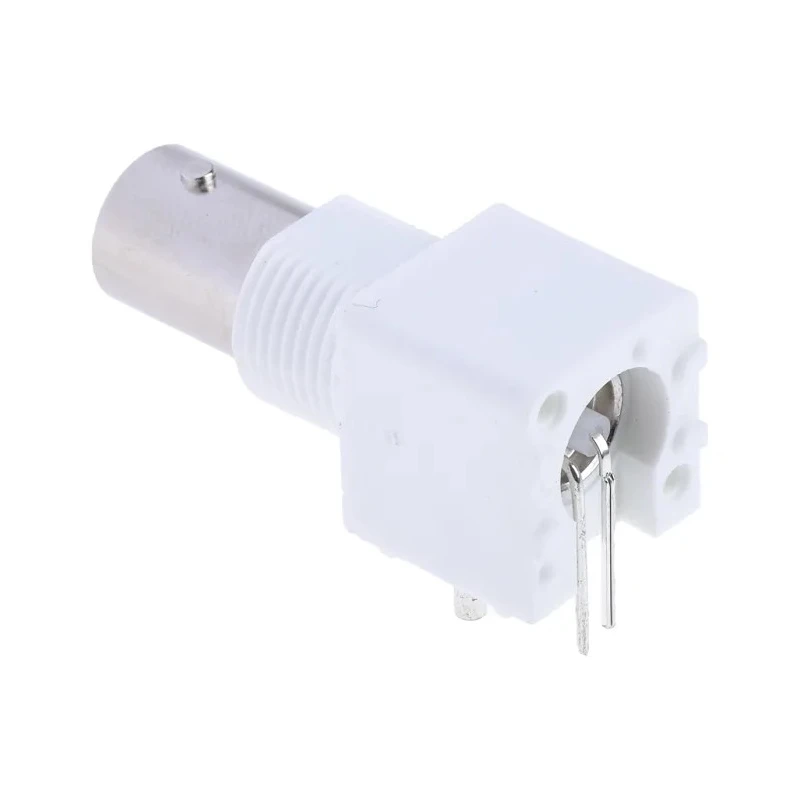

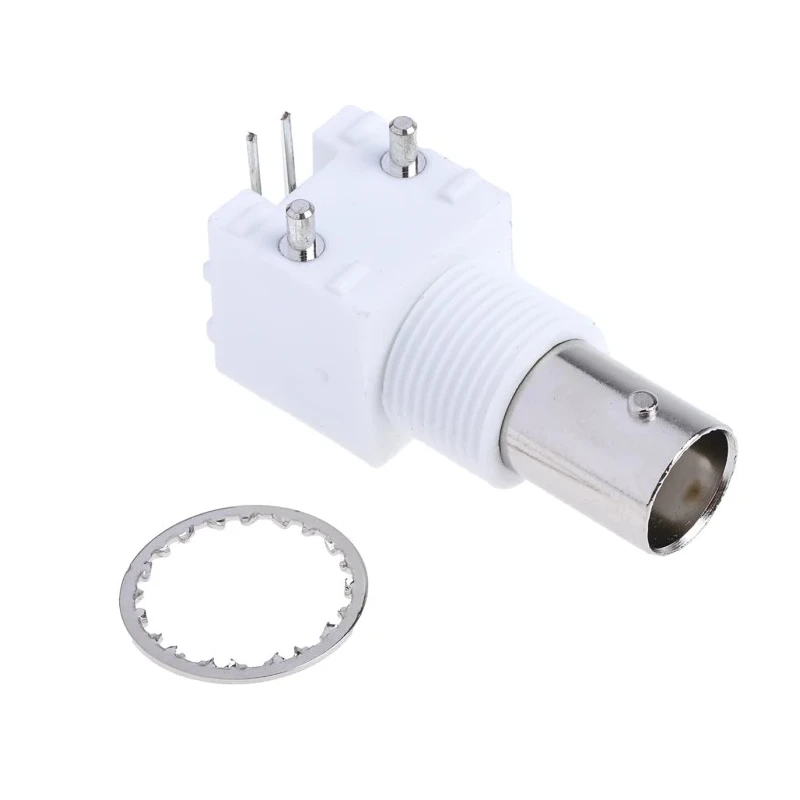

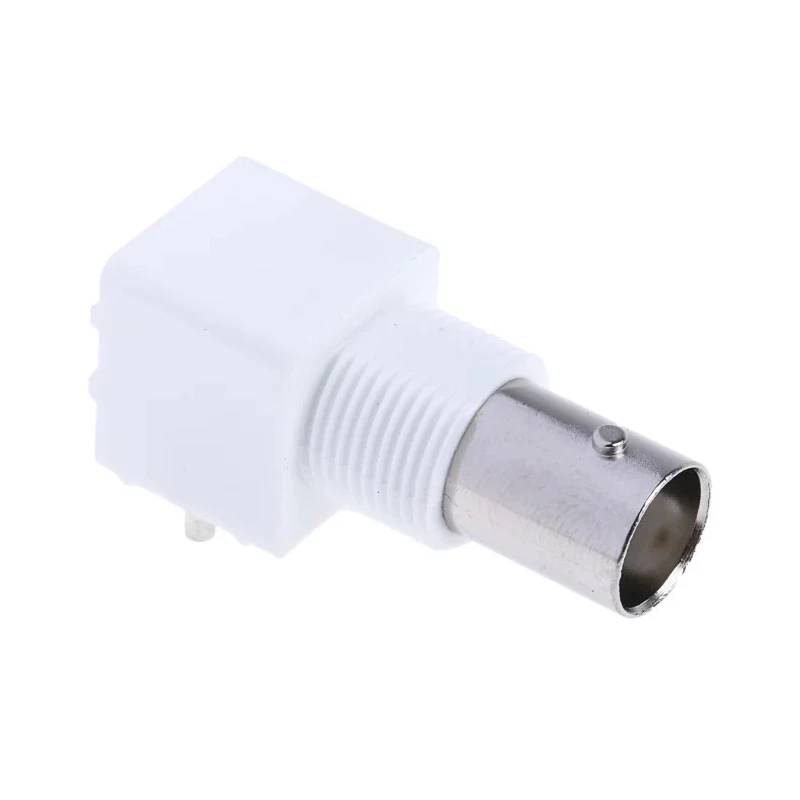

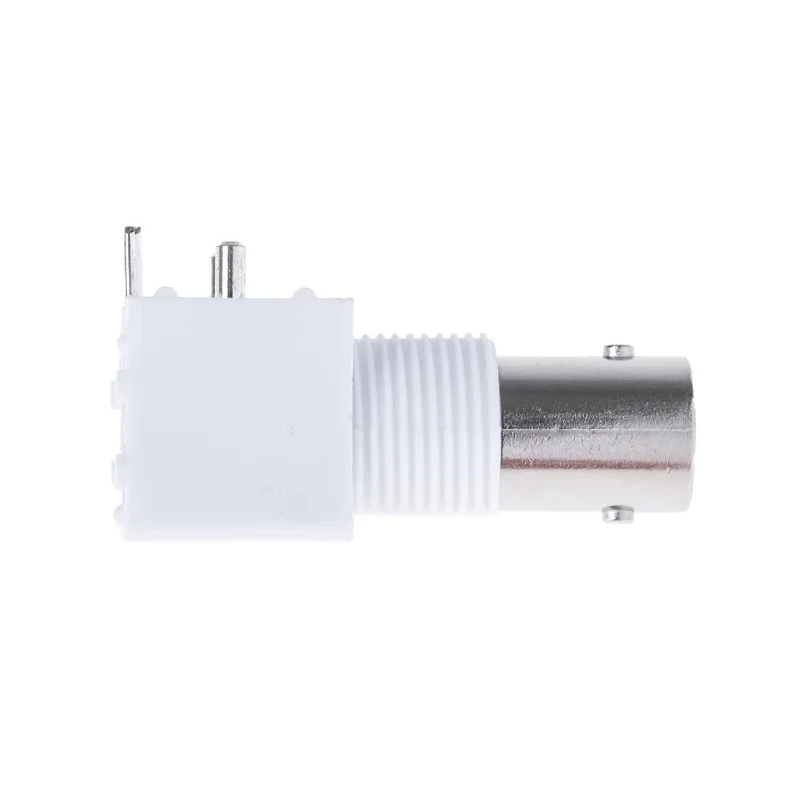

RS PRO Coaxial Connector PCB Female BNC, 50 Ω, Right Angle Body Through Hole 526-5864
Specifications
| Country of Origin | Taiwan |
|---|---|
| Size | Standard |
| Brand | RS PRO |
| Orientation | Right Angle |
| Model | 526-5864 |
| Mount Type | PCB |
| Operating Frequency | 1GHz |
| Contact Material | Phosphor Bronze |
| Series | RS PRO |
| Termination Type | Through Hole |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | BNC |
| Body Plating | Nickel |
| • Insulation material | PTFE |
Key Features
- The connector is designed for PCB mounting with a secure bayonet coupling system.
- Gold-plated female contact ensures excellent conductivity and durability.
- Operates effectively up to 1 GHz frequency range.
- Nickel plating provides corrosion resistance to the connector body.
- Suitable for applications in telecom, medical equipment, CCTV, and satellite communications.
- Operating temperature range is -40°C to 60°C for reliable performance in diverse environments.
- The product includes a bulkhead design for panel or chassis mounting.
- The connector uses phosphor bronze contact material with gold plating for enhanced conductivity.
Product Description
RS PRO 526-5864 Coaxial Connector PCB Female BNC is a specialized RF Coaxial Connector designed for PCB mounting with a right-angle body and through hole termination. It supports a 50 Ω impedance and operates up to 1 GHz, making it ideal for reliable signal transmission in various industrial and commercial electronic applications.
The product features a robust nickel-plated body for durability and corrosion resistance, coupled with gold-plated female contacts made of phosphor bronze to ensure excellent conductivity and long service life. Its low profile design allows for secure mounting on printed circuit boards and chassis using a bulkhead panel design.
The PTFE insulator enhances insulation and overall connector reliability. With an operating temperature range of -40°C to 60°C, the connector performs well in harsh environmental conditions.
This connector is commonly used in telecommunications, medical devices, CCTV systems, satellite communications, and various RF signal applications requiring dependable and durable connectivity.
RS PRO brand guarantees high quality and rigorous testing, delivering components trusted by engineers globally for demanding environments and long-lasting operation. The connector supports low-profile PCB mounting with a secure bayonet coupling for easy installation.
Gold plating on contacts ensures maximum efficiency and signal integrity. Designed to operate effectively within a 1 GHz frequency. Nickel plating on the body offers enhanced corrosion resistance and durability. Construction materials include phosphor bronze contacts and PTFE insulation.
Right-angle orientation and through-hole termination support tight PCB layouts. Applications include antenna connections, telecom, medical equipment, CCTV, and satellite communication devices. Operating temperature ranges from -40°C to 60°C, allowing reliable use in varied environments.
Explore more high-quality electronic components and connectors from RS PRO at EnvMart for your industrial and commercial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating frequency of this coaxial connector is 1 GHz, making it suitable for various RF signal applications.
This model has an impedance rating of 50 Ω, which is standard for many RF applications.
The connector features phosphor bronze for the contacts, gold plating for enhanced conductivity, and PTFE insulation for improved reliability.
The operating temperature range is from -40°C to 60°C, allowing it to perform reliably in diverse environments.
It is designed for PCB mounting with a right-angle orientation and through-hole termination, allowing for secure installation on printed circuit boards.
Yes, the connector body is nickel-plated, providing corrosion resistance and enhancing durability.
The contact gender of this connector is female, designed for secure connections with compatible male connectors.
This connector is commonly used in telecommunications, medical devices, CCTV systems, and satellite communications.
It uses a secure bayonet coupling system, which ensures a reliable connection during operation.
The connector has a right-angle orientation, which is beneficial for tight PCB layouts and space-constrained applications.
This is a BNC type coaxial connector, commonly used for RF signal transmission.
The body of this connector is nickel-plated, which helps to provide corrosion resistance.
