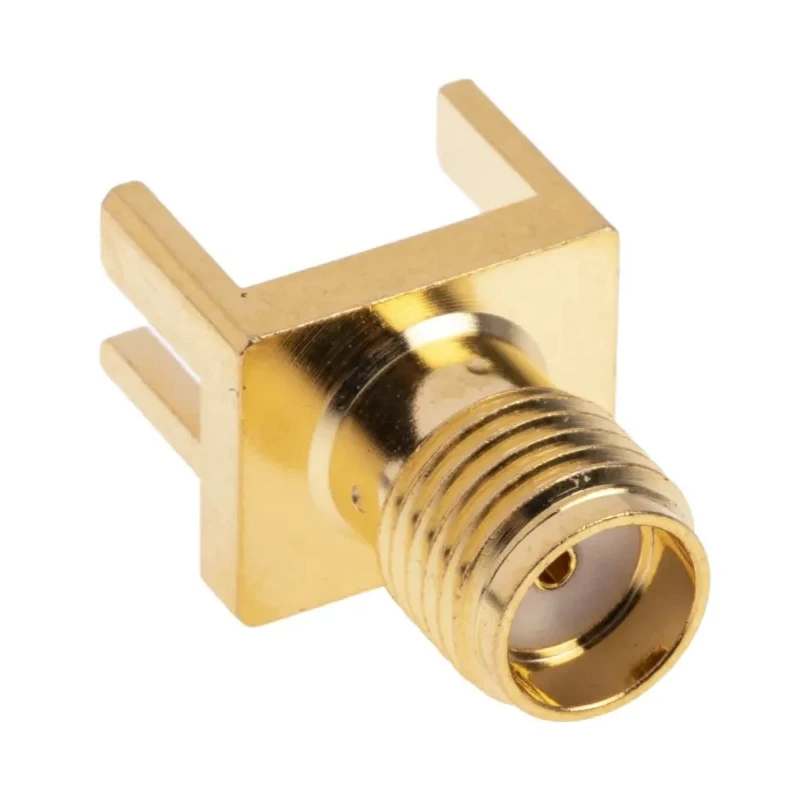

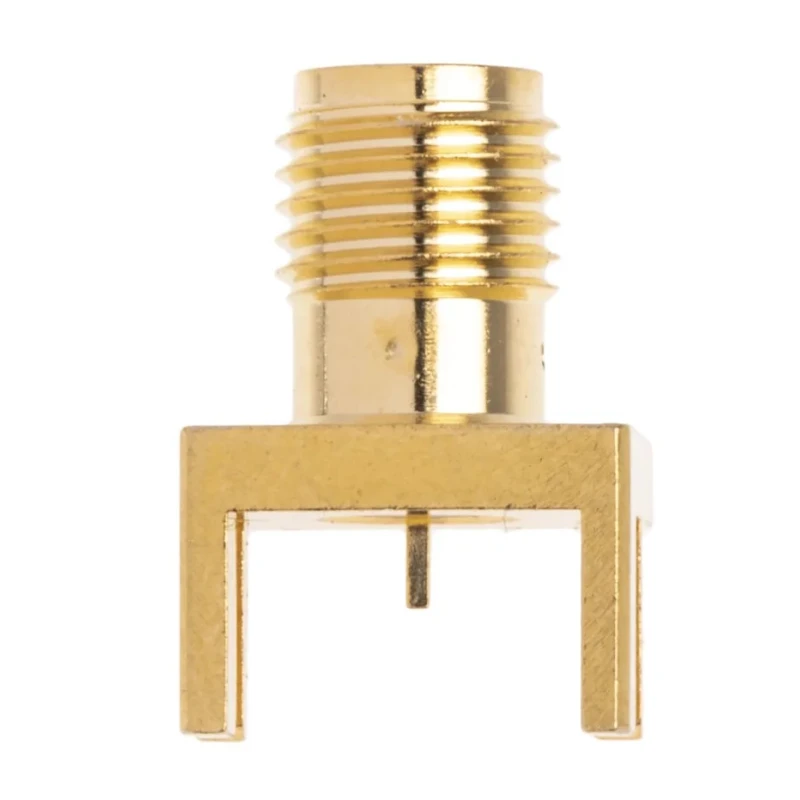

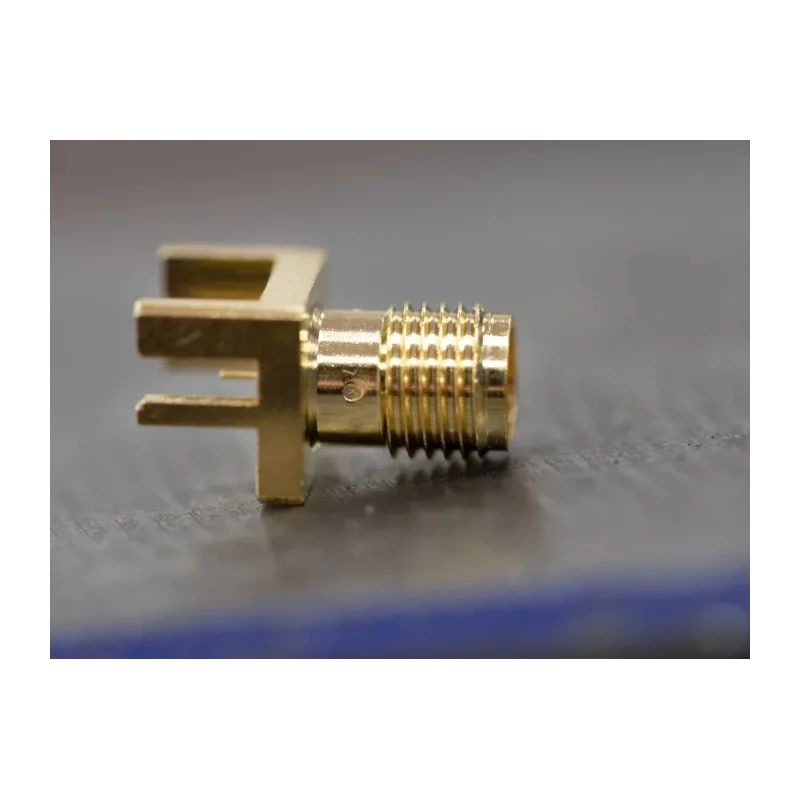

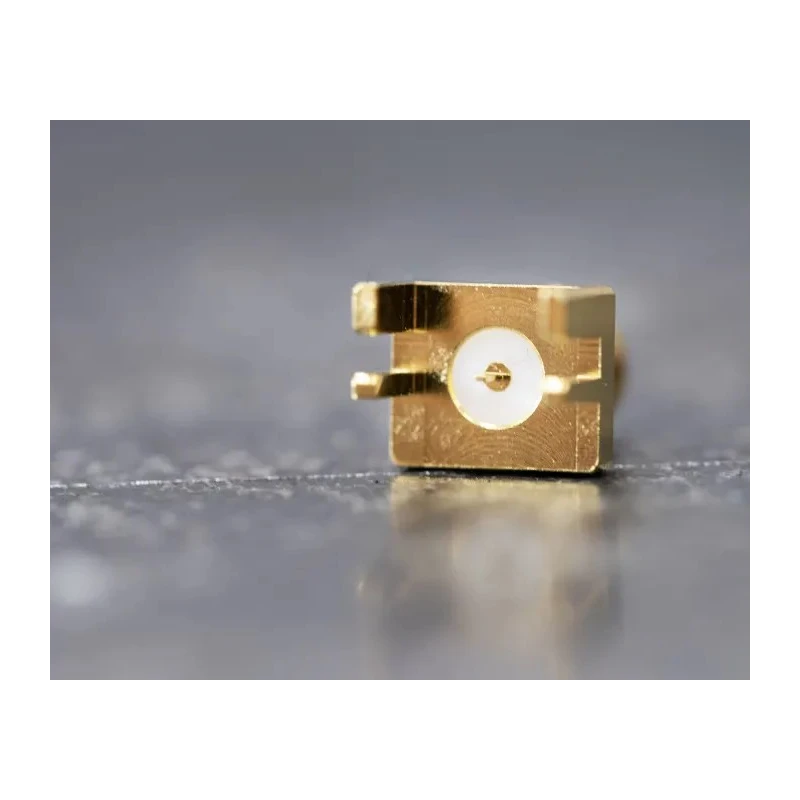

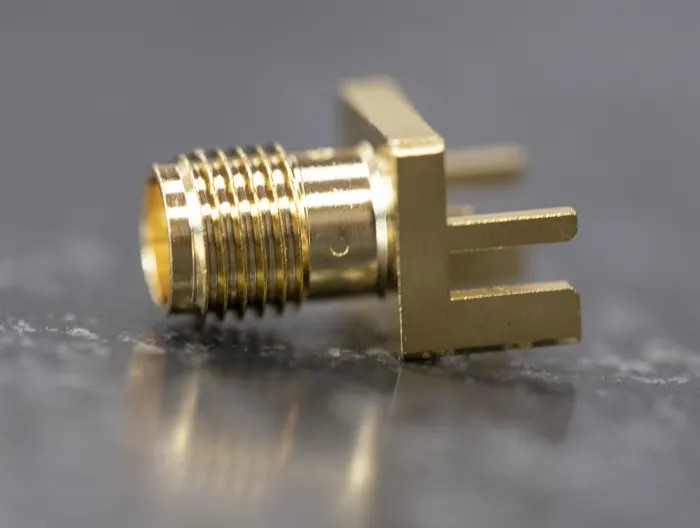

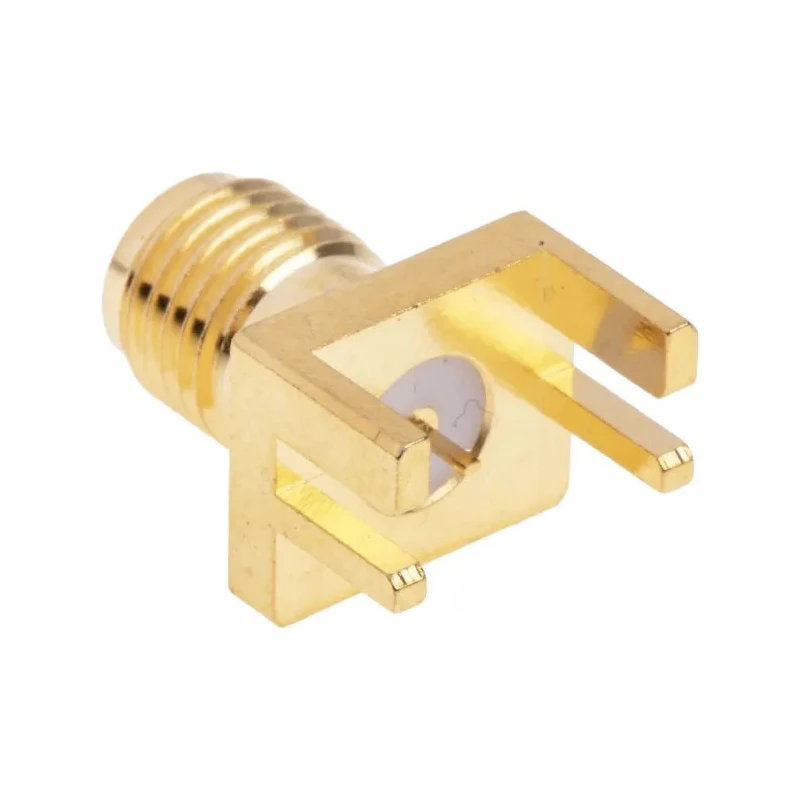

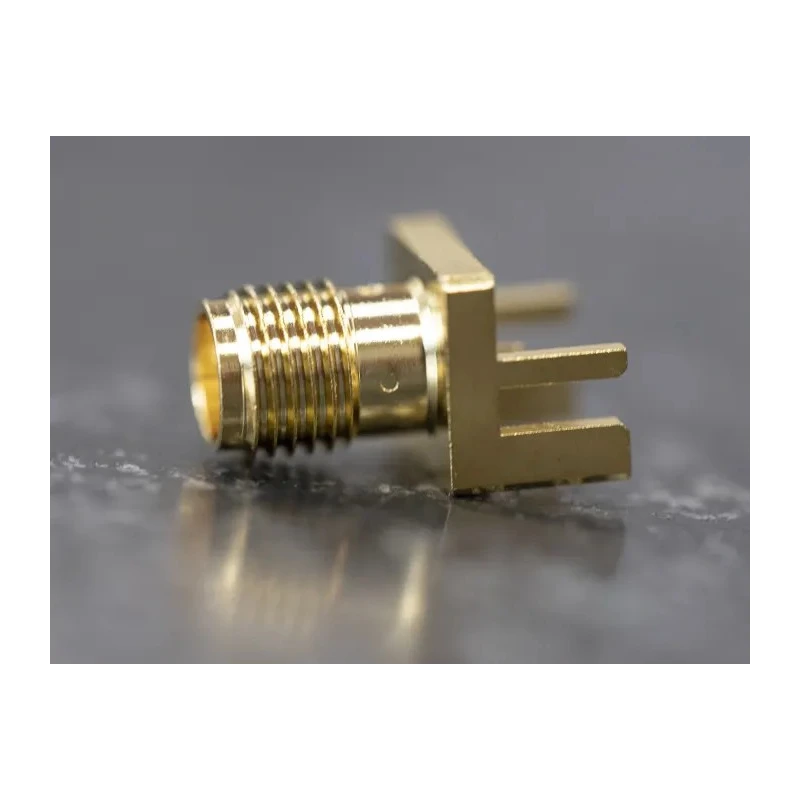

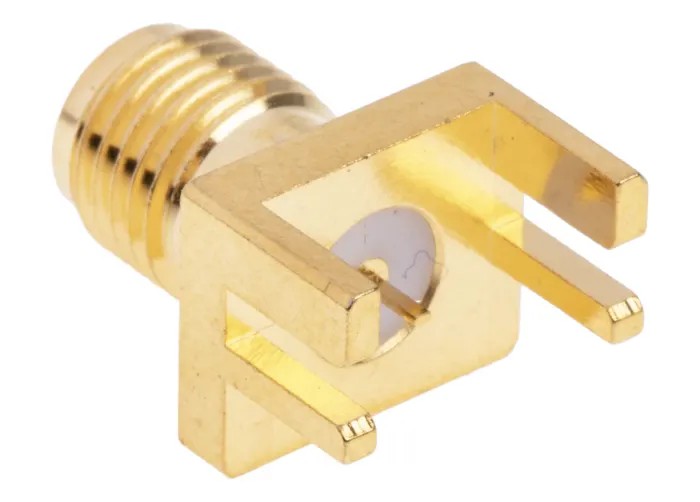

RS PRO SMA Series Coaxial Connector Edge Female SMA, 50 Ω, Straight Body Solder 526-5757

RS PRO 526-5757 Coaxial Connector Edge Female SMA is a precision-engineered SMA connector designed for RF applications requiring stable and high-frequency signal transmission up to 18 GHz. Featuring a 50 Ω impedance, this connector offers a straight body solder termination tailored for edge mounting on printed circuit boards with a thickness of approximately 1.7mm.

The connector's gold-plated beryllium copper contacts deliver excellent conductivity and corrosion resistance, ensuring reliable performance in demanding conditions. With an operating temperature range from -65°C to 165°C, it is suitable for a wide variety of industrial, commercial, and telecommunications environments.

This SMA connector edge mount jack is ideal for use in Wi-Fi antenna systems, board-to-board connections, and other applications requiring a compact but robust RF interface. The subminiature size and female connector gender further enhance its versatility and integration potential.

Designed to meet RS PRO’s rigorous quality standards, this component ensures dependable solder termination and system polarity, providing consistent connectivity and signal integrity.

Operates efficiently at frequencies up to 18 GHz for high performance signal transmission. Gold-plated beryllium copper contact material ensures corrosion resistance and excellent conductivity. Edge mount type designed to fit PCB thickness of approximately 1.7mm.

Supports minimum and maximum operating temperatures from -65°C to 165°C for diverse environments. Provides secure solder termination with normal polarity and female connector gender. Constructed with a straight orientation and subminiature size for compact PCB integration.

Suitable for Wi-Fi antenna systems and various RF applications requiring board-to-board connection.

Engineers and technicians can rely on RS PRO's SMA series Coaxial Connectors for robust RF interfacing needs across telecommunications, industrial equipment, and electronic component manufacturing sectors. Explore more RS PRO connectors and components for your precise RF and electronic assembly requirements.
