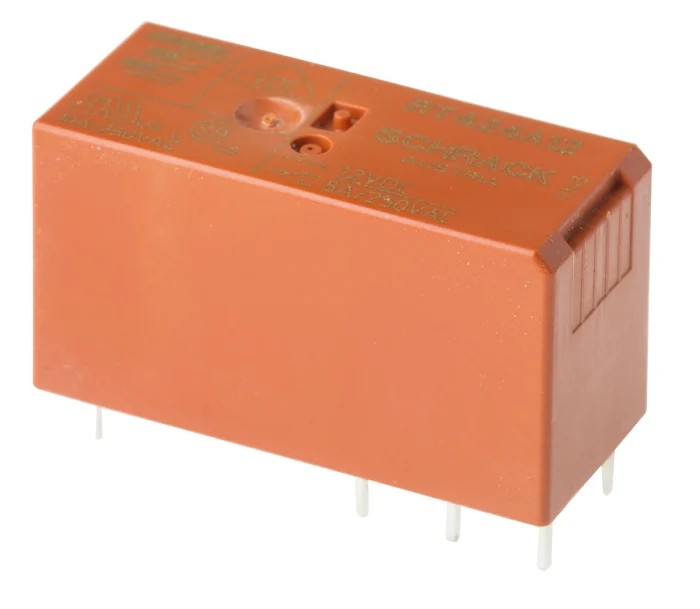

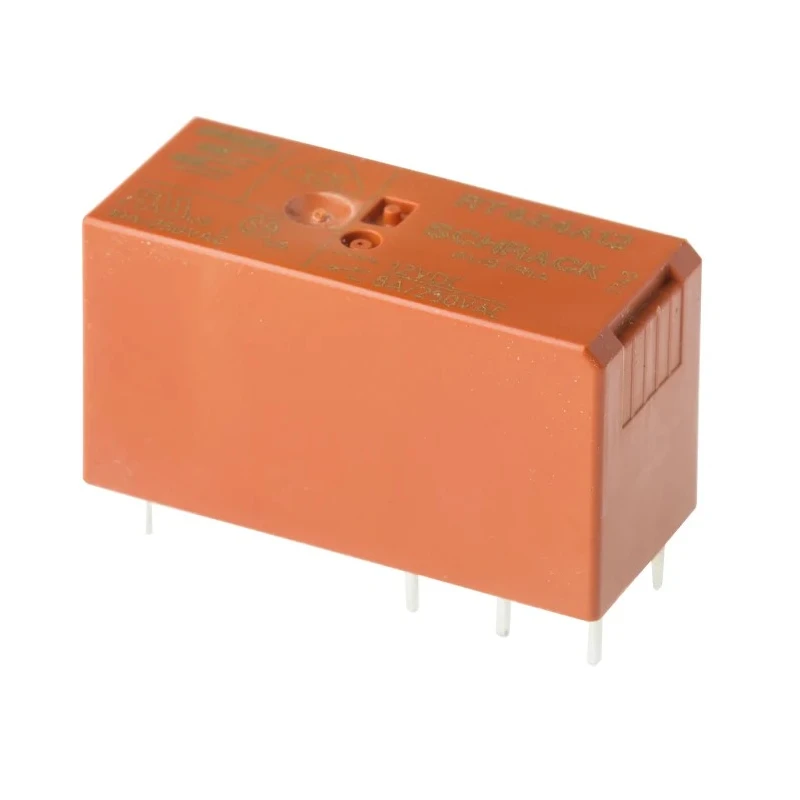

TE Connectivity PCB Power Relay 12V DC Coil 8A Switching Current DPDT RT424A12
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RT424A12 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | SCHRACK |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -10°C |
| Switching Current | 8A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 360Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
Key Features
- Operates with a 12V DC coil voltage to control circuit switching efficiently.
- Double Pole Double Throw (DPDT) contact configuration for versatile applications.
- Capable of switching up to 8 amperes of current and 400V AC voltage.
- Constructed with silver alloy contact material for enhanced conductivity and durability.
- Designed for PCB mounting with solder terminal type for secure connections.
- Wide operating temperature range from -10°C to 85°C suitable for diverse environments.
- Features reinforced insulation and shock resistance for robust operation in industrial settings.
- Complies with RoHS standards ensuring environmentally safe component manufacturing.
Product Description
TE Connectivity RT424A12 PCB Power Relay is a highly reliable component designed for industrial and electronic applications requiring a bistable latching relay solution with memory function capabilities, such as power failure scenarios. It operates with a 12V DC coil and supports switching currents up to 8 amperes, making it ideal for controlling AC circuits up to 400V.
The relay features a Double Pole Double Throw (DPDT) contact configuration, offering flexibility in circuit design. Constructed with silver alloy contacts, it ensures low contact resistance and long-term durability. Mounting is designed for PCB attachment with solder terminals, enabling easy incorporation into printed circuit boards for automation, manufacturing, and control systems.

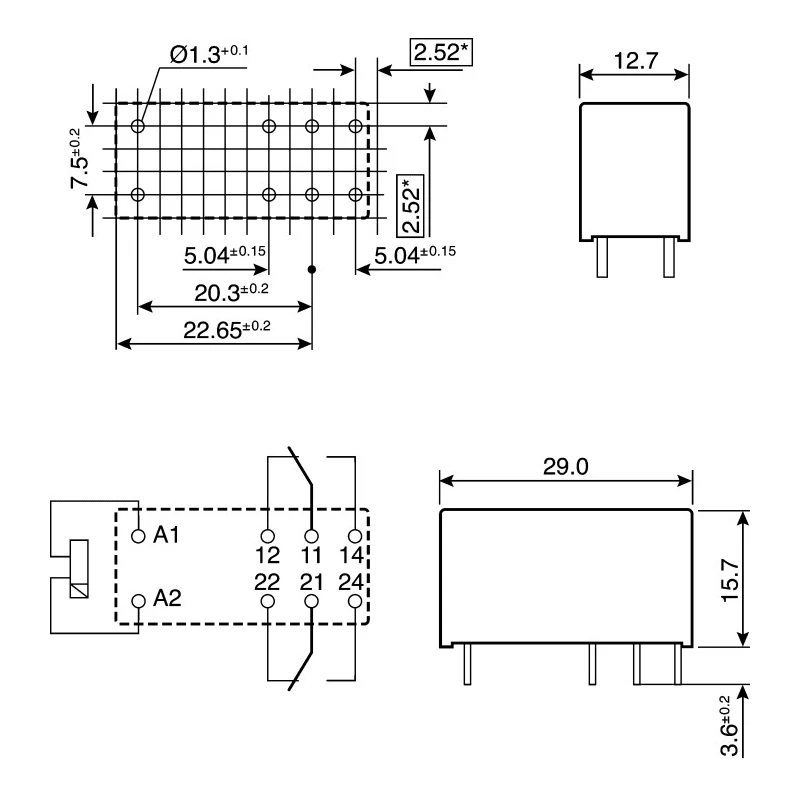

Compact dimensions of 29mm length, 12.7mm width, and 15.7mm height allow space-efficient installation, while its operating temperature range of -10°C to 85°C ensures performance in varied industrial environments. Reinforced insulation and flux-proof design augment its robustness and resistance to mechanical shock up to 100g.
The RT424A12 model belongs to the SCHRACK series and is compliant with RoHS regulations, reflecting responsible manufacturing standards. Typical applications include power relays in automation, industrial controls, HVAC systems, and battery-powered devices requiring memory functionality during power interruptions.
Operates with 12V DC coil voltage for electrical control. DPDT contact configuration supports versatile switching needs. Switching current rated at 8A and switching AC voltage up to 400V AC. Silver alloy contact material ensures reliable operation and conductivity.
Designed for PCB mounting with solder terminals for robust connections. Compact size optimizes use in tight electronic assemblies. Wide temperature tolerance from -10°C to 85°C for harsh conditions. Reinforced insulation and flux proof features enhance durability and shock resistance.
RoHS compliance guarantees environmentally safe component.
This product is ideal for industrial, laboratory, automation, and electronic manufacturing applications where efficient and reliable switching is critical. Use the RT424A12 for enhanced control in electrical circuits within machinery and electronic systems.
Explore more precision relays and power electronics components in the Power Relay category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a 12V DC coil voltage.
It is capable of switching up to 8 amperes of current.
This model features a Double Pole Double Throw (DPDT) contact configuration.
The relay can switch AC voltage up to 400V.
The relay has dimensions of 29mm in length, 12.7mm in width, and 15.7mm in height.
It operates within a temperature range of -10°C to 85°C.
This relay is designed for PCB mounting with solder terminals for secure connections.
The contacts are constructed with silver alloy material, enhancing conductivity and durability.
The coil resistance is rated at 360Ω.
Yes, it complies with RoHS standards, ensuring environmentally safe manufacturing.
It is suitable for applications in automation, industrial controls, HVAC systems, and battery-powered devices requiring memory functionality.
The RT424A12 belongs to the SCHRACK series.
