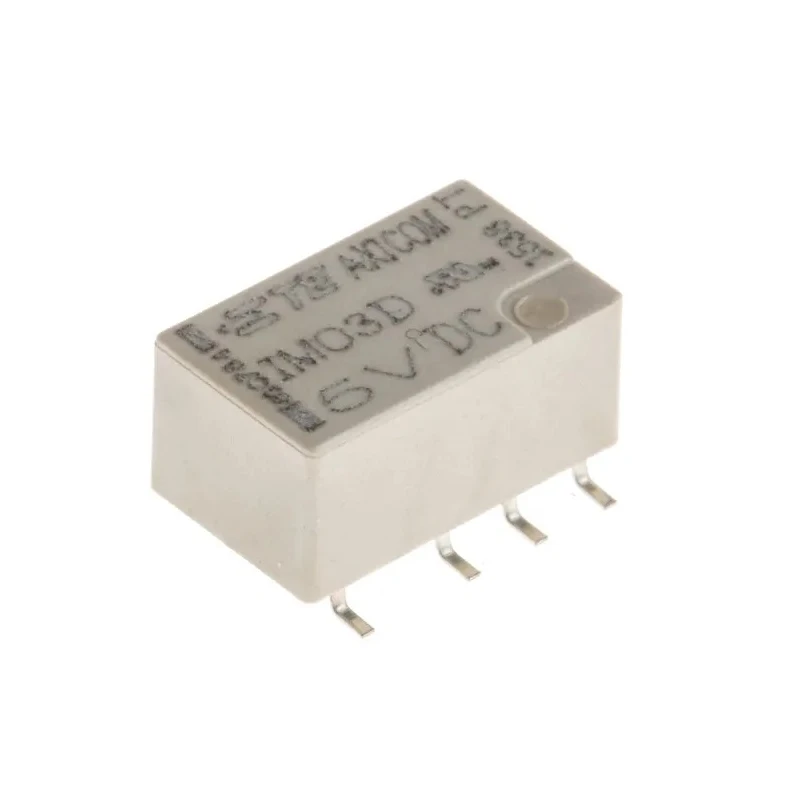

TE Connectivity PCB Power Relay 5V DC Coil 5A Switching Current DPDT 9-1462038-9 IM03DGR

TE Connectivity 9-1462038-9 IM03DGR PCB Power Relay is designed for industrial and electronic applications requiring dependable power switching. Featuring a 5V DC coil and supporting a switching current of 5A, the DPDT configuration allows switches for dual circuits with multiple contact positions.

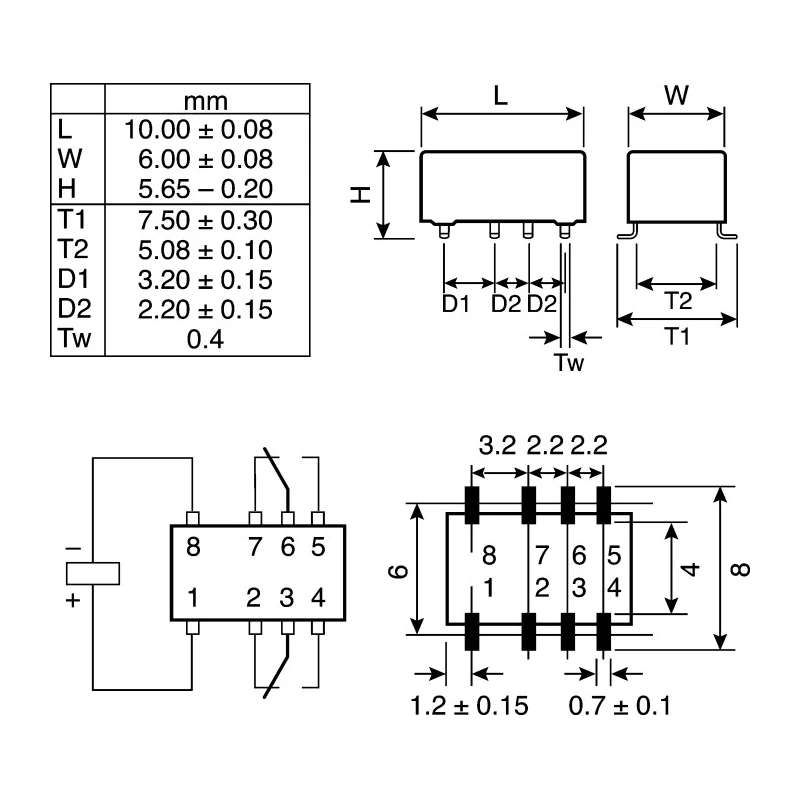

Its surface mount PCB form factor with gull wing SMT legs offers compact installation in modern circuit boards. The relay's gold plated bifurcated contacts ensure superior electrical performance and durability under various load cycles.

The relay operates across a wide temperature range from -40°C to a maximum of 85°C, maintaining stability in harsh environments. Its switching AC voltage rating is 400V AC with a switching power of 62.5VA, suitable for various electrical control systems.

It is hermetically sealed with IP67 rating, offering protection against moisture and dust, making it suitable for telecom, signal conditioning, and automation applications. The relay is compliant with IEC 61810 and RoHS standards, guaranteeing safety and environmental compliance.

Key industrial use cases include power distribution, signal relay in telecom hardware, automated machinery control, and other electrical automation systems. Its high mechanical shock resistance up to 300G functional and 500G survival further enhances robustness under demanding conditions.

Coil voltage is 5V DC suitable for low voltage control circuits. Double Pole Double Throw (DPDT) contact configuration ensures versatile switching. Surface mount PCB type with slimline low profile design for efficient space utilization.

Gold plated contacts provide reliable conductivity and corrosion resistance. Operates reliably between -40°C to 85°C temperatures. Switching AC voltage rating up to 400V AC. High insulation resistance exceeding 10⁹ Ohms at 500V DC.

Meets IEC 61810 and RoHS standards for quality assurance.

This TE Connectivity PCB Power Relay is essential for professional electronic engineers seeking reliable, compact, and IEC certified relays for industrial and commercial equipment. Explore more Power Relay solutions and related components to enhance your automation and control designs at EnvMart.
