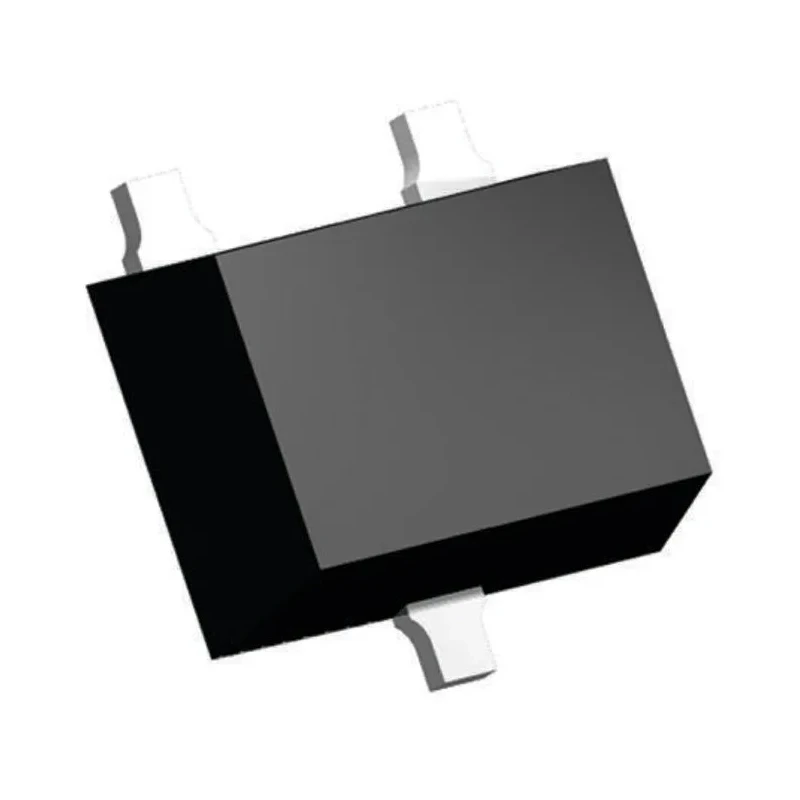

Nexperia 2 Element Common Anode Surface Mount Voltage Regulator Zener Diode 7.5 V 425 mW 5% Tolerance 3-Pin BZB984-C7V5,115

Nexperia BZB984-C7V5,115 is a precision 2 element common anode zener diode fabricated for voltage regulation purposes, delivering a nominal zener voltage of 7.5 volts and capable of dissipating a maximum power of 425 milliwatts. It is housed in a surface mount SOT-663 package featuring 3 pins, facilitating seamless assembly on printed circuit boards for compact electronic designs.

This zener diode exhibits a voltage tolerance of ±5%, providing reliable voltage clamping and stabilization in electronic circuits. Its maximum zener impedance of 15 ohms ensures effective voltage regulation performance particularly at the specified test current of 5 milliamperes.

The device supports a wide operating temperature range from -65°C to 150°C, making it suitable for industrial, commercial, and consumer electronics requiring stable performance in varying temperature conditions. A low maximum reverse leakage current of 1 microampere minimizes leakage losses and increases circuit efficiency.

With dimensions of 1.7 mm length and 0.6 mm height, the Nexperia BZB984-C7V5,115 enables integration into densely packed circuit designs where board space is critical. While it does not comply with automotive standards, this zener diode is well-suited for various applications in power regulation, voltage reference, and protection circuits in semiconductors and discrete electronic components.

The device features a compact surface mount SOT-663 package with 3 pins. Nominal zener voltage is 7.5 V with ±5% tolerance for precise voltage regulation. Maximum power dissipation rating of 425 mW supports moderate load conditions.

Operating temperature range extends from -65 to 150 degrees Celsius. Maximum reverse leakage current is limited to 1 microampere. Maximum zener impedance of 15 ohms ensures voltage regulation stability. Length of 1.7 mm and height of 0.6 mm provide a small form factor.

This Nexperia zener diode is applicable in electronic product manufacturing, laboratory device circuits, power supply regulation, and semiconductor discrete component assembly. It is ideal for tasks requiring reliable voltage regulation in industrial and commercial electronics. EnvMart invites you to explore more Nexperia semiconductor components and Zener Diode products within our comprehensive Electronics & Electricals category.
