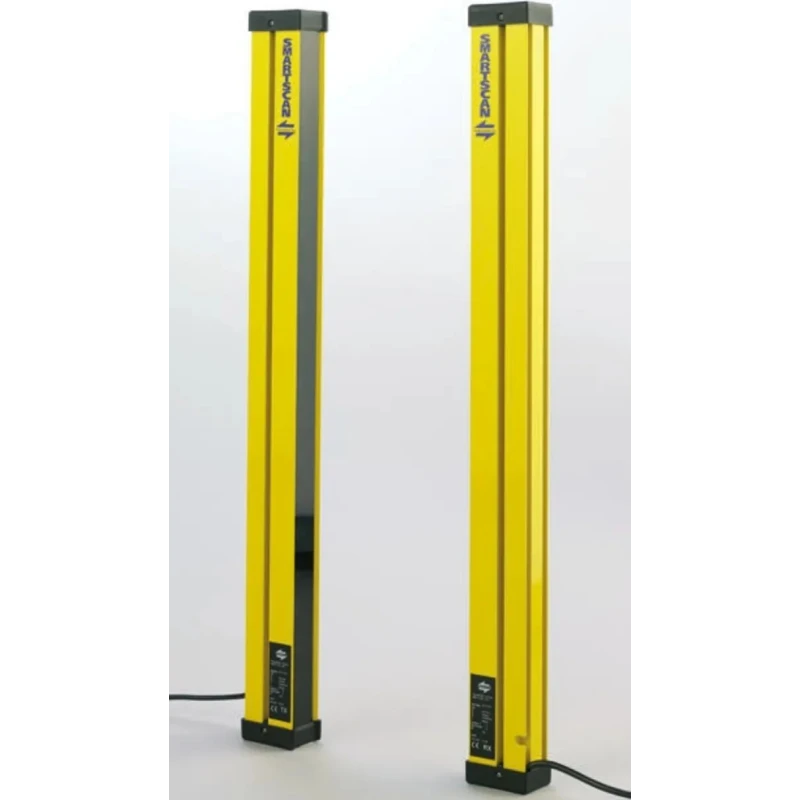

Smartscan 1K3 Series Light Curtain Receiver and Sender, 2 Beams, 24V DC Power, Type 3 Safety, 5m Max Scanning 1K3-125

Smartscan 1K3-125 Light Curtain Receiver and Sender is a Type 3 safety light curtain system designed for machine safeguarding applications. It operates with a 24V DC power supply and features two beams providing a reliable scanning range of up to 5 meters. Manufactured in the United Kingdom, it is constructed with slim-line aluminum enclosures finished in a durable yellow polyester powder coating treated with aluminum chromate for corrosion resistance.

The system comprises separate transmitter and receiver units with integral M6 threaded slots on the sides and back for versatile mounting options without requiring special fixtures. Installation is simplified with diagnostic indicators for ease of alignment and ongoing system monitoring without the need for test inputs. The light curtain system is waterproof with an IP65 rating, making it suitable for demanding industrial environments.

The maximum protective height is 550 mm with a maximum protective width of 65 mm, and device dimensions of height 640 mm, length 41 mm, and width 28 mm. The maximum response time for safety signals is 40 ms, ensuring rapid reaction for safety-critical operations. Terminal connections are via cables, facilitating straightforward integration.

This product is ideal for applications in machine safeguarding across industries such as mining and quarrying, factory automation, pharmaceuticals, railway, and transport sectors. It provides fail-safe dual-channel electronic outputs that enhance safety integrity and complies with relevant international standards including EN61496-1, IEC 61496-2, and EN954-1.

The Smartscan 1K3 Series Light Curtain can be connected to the Smartscan Multifunction Safety Unit (MFU) which offers relay output switching, muting options, emergency stop inputs, manual and automatic restart functions, and external device monitoring features to enhance system safety and flexibility.

The light curtain offers simple installation and alignment with diagnostic indicators. It features dual-channel, fail-safe electronic outputs for reliable control. The system is waterproof with an IP65 rated enclosure. Compact and slim-line design with aluminum chromate treated enclosures.

Compatible with Smartscan Multifunction Safety Units for enhanced safety functions. Suitable for diverse industrial applications requiring high integrity safeguarding. Explore the comprehensive range of Safety Light Curtains and sensors in the EnvMart catalogue to find the perfect products for your industrial safety needs.
