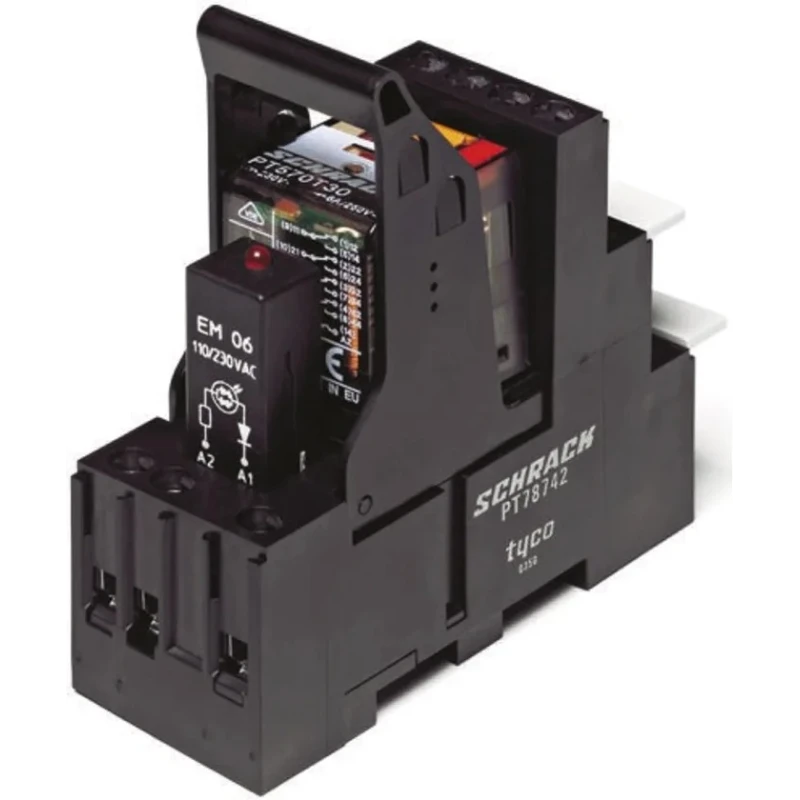

TE Connectivity DIN Rail Power Relay 115V ac Coil 6A Switching Current 4PDT PT5L7SB5 1-1415535-3
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 78.3mm |
| Length | 77mm |
| Model | PT5L7SB5 1-1415535-3 |
| Width | 27.2mm |
| Mount Type | DIN Rail |
| Contact Material | Silver Nickel Alloy |
| Series | PT |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | 4PDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 6A |
| Terminal type | Screw |
| Standards/Approvals | IEC, RoHS, UL, VDE |
| Coil Resistance | 4.8kΩ |
| Coil Voltage | 115V ac |
| Switching AC Voltage | 240V ac |
| Coil Power | 1W |
Key Features
- Designed for DIN rail mounting with screw terminal type for secure installation.
- Compact dimensions of 77mm length, 27.2mm width, and 78.3mm height support space-saving setups.
- Coil resistance of 4.8kΩ and coil power consumption of 1W ensures efficient operation.
- Wide operating temperature range from -40°C to 70°C supports harsh environments.
- Contact material made of silver nickel alloy for durability and reliable conductivity.
- Complies with IEC 61810-1 standards and holds approvals including IEC, RoHS, UL, and VDE.
- Includes relay, DIN rail socket, module, retainer, and marking tab in the package.
- Manual test tab and mechanical/electrical indicator for ease of maintenance and status checking.
Product Description
TE Connectivity PT5L7SB5 1-1415535-3 is a high-quality DIN Rail Power Relay equipped with a 115V AC coil and capable of handling a switching current of 6A, making it ideal for various industrial and electrical automation applications.
This relay features a 4PDT (four pole double throw) contact configuration mounted on a DIN rail with screw terminals for robust and secure connection. It measures 77mm in length, 27.2mm in width, and 78.3mm in height, allowing for compact installation in control panels and electrical enclosures.
The coil has a resistance of 4.8kΩ and consumes 1W of power, ensuring efficient coil operation. It is designed to operate reliably across a broad temperature range from -40°C to 70°C, suitable for demanding industrial environments.
Constructed with silver nickel alloy contacts, this relay provides excellent conductivity and durability. It meets important international standards, including IEC 61810-1, and holds certifications from IEC, RoHS, UL, and VDE, assuring quality and compliance.
The package includes the relay itself, DIN rail socket, module, retainer, and marking tab. Additional features include a manual test tab and mechanical/electrical indicators for easy testing and monitoring of relay status.
This power relay is widely applicable in industrial, electrical automation, manufacturing, HVAC, and water treatment sectors where reliable switching of power circuits is required.
Designed for DIN rail mounting with screw terminal type for secure installation. Compact dimensions of 77mm length, 27.2mm width, and 78.3mm height support space-saving setups. Coil resistance of 4.8kΩ and coil power consumption of 1W ensures efficient operation.
Wide operating temperature range from -40°C to 70°C supports harsh environments. Contact material made of silver nickel alloy for durability and reliable conductivity. Complies with IEC 61810-1 standards and holds approvals including IEC, RoHS, UL, and VDE.
Includes relay, DIN rail socket, module, retainer, and marking tab in the package. Manual test tab and mechanical/electrical indicator for ease of maintenance and status checking. Explore the complete range of Power Relays at EnvMart for efficient and dependable switching solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This power relay has a switching current rating of 6A.
The coil voltage for this model is 115V AC.
The relay measures 77mm in length, 27.2mm in width, and 78.3mm in height.
It operates within a temperature range of -40°C to 70°C.
This relay features a 4PDT (four pole double throw) contact configuration.
The contacts are made of silver nickel alloy, ensuring reliable conductivity.
It complies with IEC 61810-1 standards and holds approvals from IEC, RoHS, UL, and VDE.
The coil resistance is 4.8kΩ.
This model is designed for DIN rail mounting with screw terminals for secure installation.
The package includes the relay, DIN rail socket, module, retainer, and marking tab.
Yes, it includes a manual test tab and mechanical/electrical indicators for ease of maintenance and status checking.
This relay is widely applicable in industrial, electrical automation, manufacturing, HVAC, and water treatment sectors.
