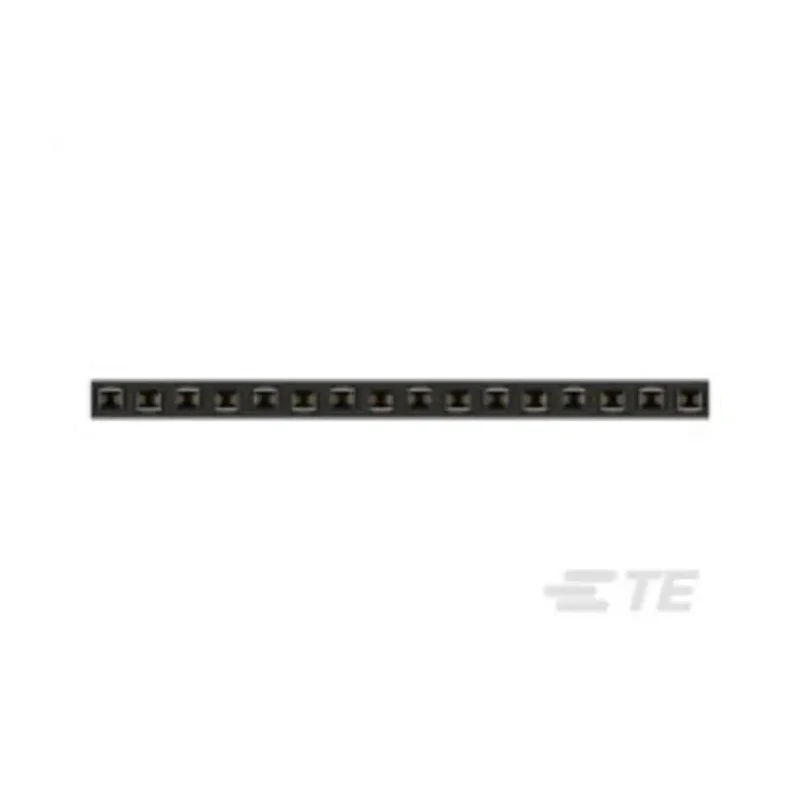

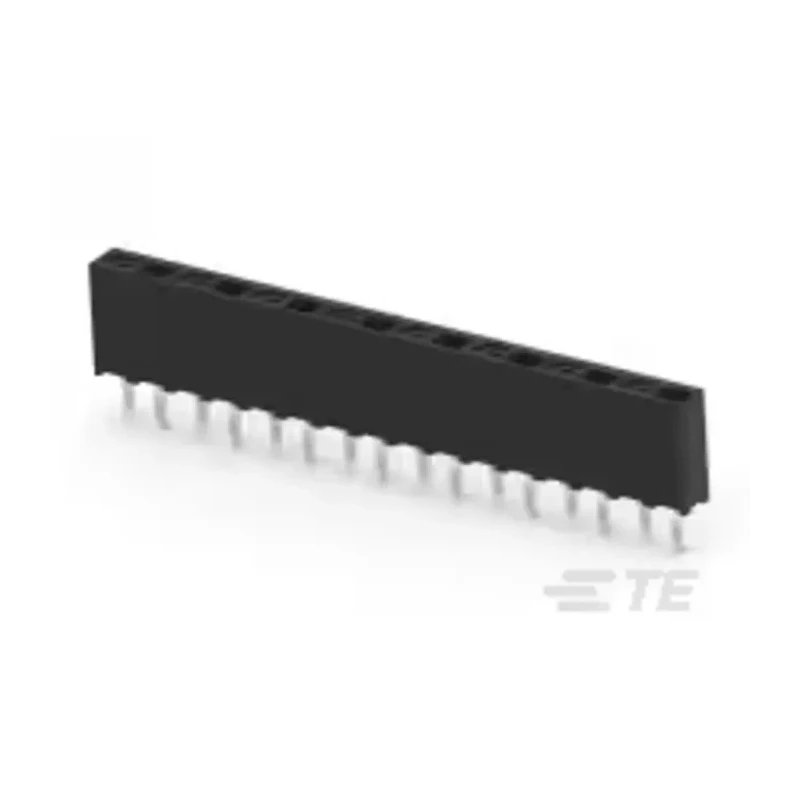

TE Connectivity AMPMODU HV100 Series Straight Through Hole PCB Socket, 16-Contact, 1 Row, 2.54 mm Pitch Solder HV100
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 12A |
| Model | HV100 |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Bronze |
| Series | AMPMODU HV100 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Socket Strip |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Number of Contacts | 16 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- The straight through hole socket features kinked solder legs for secure PCB retention.
- Constructed with flame retardant polybutylene terephthalate housing compliant with UL 94V-0 standard.
- Supports a current rating of 12 A for robust electrical performance.
- Suitable for operating temperatures from -40°C to 105°C ensuring durability in varied environments.
- Female bronze contacts plated with tin provide excellent electrical conductivity.
- Ideal for stacking applications with varying mounting heights available.
- Connector system supports board-to-board connections with 2.54 mm pitch spacing.
Product Description
TE Connectivity HV100 PCB Socket, model HV100, is engineered for precision electronic applications requiring a straight through hole mounting type with high reliability. This PCB socket features 16 female contacts arranged in a single row with a 2.54 mm pitch, making it ideal for many board-to-board connector needs.
The socket's housing is constructed from polybutylene terephthalate, a flame retardant thermoplastic certified to UL 94V-0 standards, enhancing safety and durability. Its solder termination uses kinked legs to ensure secure retention on printed circuit boards, essential for maintaining robust electrical connections in industrial and manufacturing settings.
Rated for a current of 12 A, this connector supports demanding power requirements and operates reliably across a temperature range of -40°C to 105°C, suitable for various industrial, commercial electronics, and automation environments.
The bronze contacts plated with tin provide excellent conductivity and resistance to corrosion, ensuring long-term performance. Designed for stacking applications, different mounting heights are available, allowing flexibility in system design and integration.
This AMPMODU HV100 series socket is extensively used in industrial tools, electronic manufacturing, automation controls, and related laboratory equipment requiring high-quality PCB connectivity solutions.
The straight through hole socket features kinked solder legs for secure PCB retention. Constructed with flame retardant polybutylene terephthalate housing compliant with UL 94V-0 standard. Supports a current rating of 12 A for robust electrical performance.
Suitable for operating temperatures from -40°C to 105°C ensuring durability in varied environments. Female bronze contacts plated with tin provide excellent electrical conductivity. Ideal for stacking applications with varying mounting heights available.
Connector system supports board-to-board connections with 2.54 mm pitch spacing. Explore the extensive TE Connectivity range at EnvMart for reliable electronic components and connectors.
Explore more products in our PCB Sockets category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The HV100 PCB Socket supports a current rating of 12 A, making it suitable for robust electrical performance in various applications.
This model features a pitch size of 2.54 mm, which is standard for many board-to-board connector applications.
The housing is made from polybutylene terephthalate, and the contacts are constructed from bronze and plated with tin for excellent conductivity.
The HV100 PCB Socket operates reliably within a temperature range of -40°C to 105°C, suitable for various environments.
This socket has 16 female contacts arranged in a single row, designed for efficient connectivity.
The socket features a solder termination type, utilizing kinked legs for secure retention on printed circuit boards.
Yes, the housing material is compliant with UL 94V-0 standards and the product is RoHS compliant.
This model is designed for through hole mounting, which is common for PCB applications.
Yes, it is ideal for stacking applications and offers varying mounting heights for flexibility in design.
The HV100 PCB Socket has a straight orientation, which is typical for many PCB connections.
The HV100 PCB Socket is manufactured in India, ensuring a specific origin for the product.
This socket is extensively used in industrial tools, electronic manufacturing, automation controls, and laboratory equipment requiring reliable PCB connectivity.
