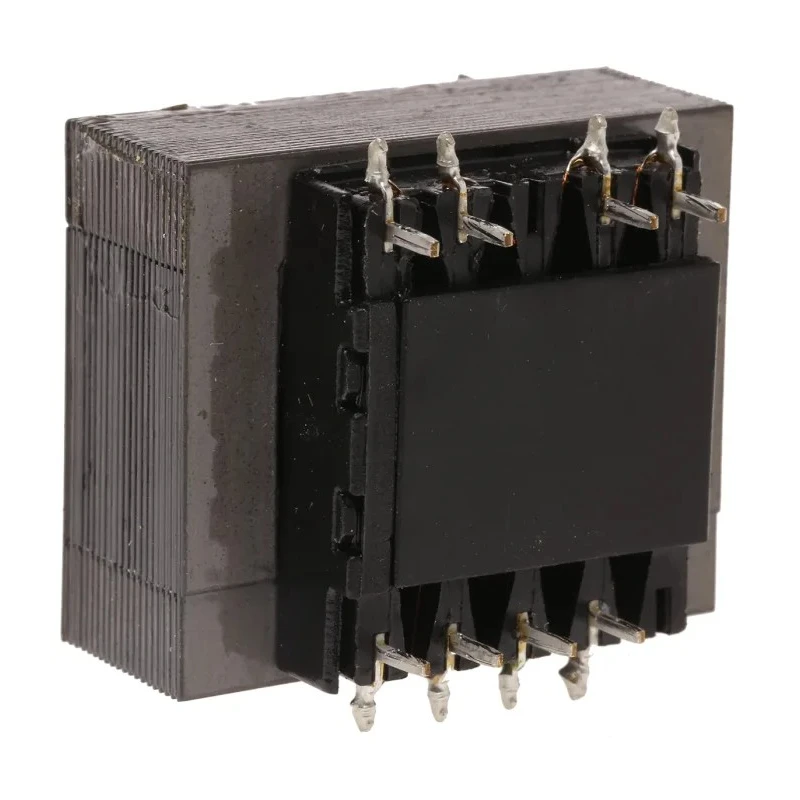

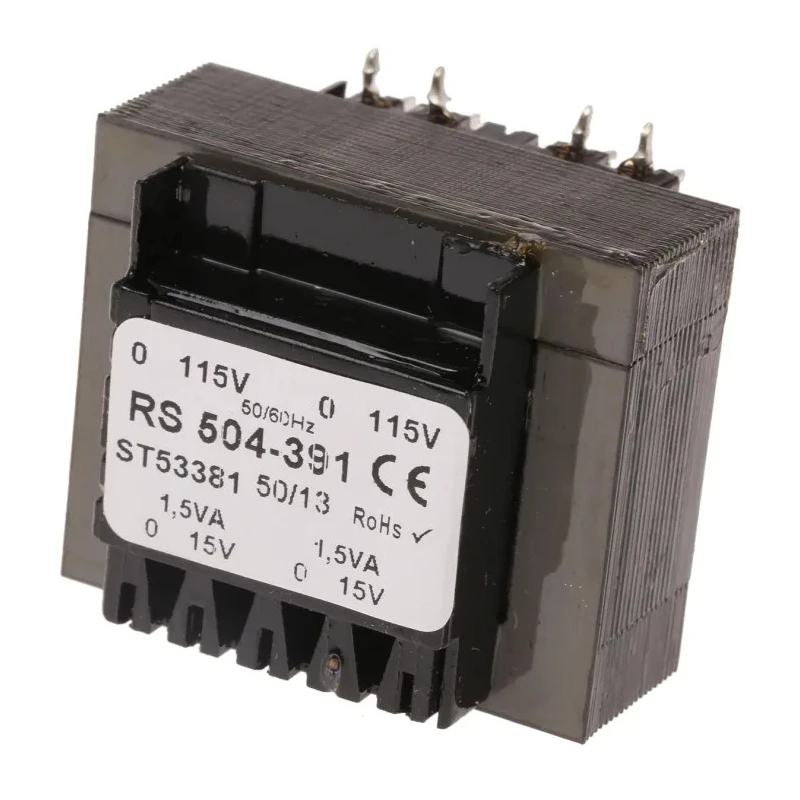

RS PRO 24 V ac 2 Output Through Hole PCB Transformer IECBSEN 615586 RoHS CE ASNZS 61558.1 504-391

RS PRO 504-391 24 V ac 2 Output Through Hole PCB Transformer is an industrial grade transformer designed to meet stringent standards including IECBSEN 615586, RoHS, CE, and ASNZS 61558.1. This transformer is well suited for precision PCB mounting applications, delivering efficient power conversion with high reliability and safety compliance.

The transformer incorporates twin 115 V ac primary windings which can be connected in series for 230 V operation or in parallel for 115 V operation, providing flexible installation options. It features two secondary outputs delivering 24 V ac each, supporting a variety of electronic power supply requirements in industrial and commercial electrical systems.

Its construction utilizes fully shrouded bobbins, double section metric bobbin design, and complete varnish impregnation ensuring robust insulation and longevity. The product is 100% electrically and flash tested under BS3535 and EN 60742 standards, guaranteeing safe and reliable operation in demanding environments.

The transformer is designed for through hole mounting on PCBs, providing secure and stable electrical connections. It operates reliably across a frequency range of 50 to 60 Hz with a maximum temperature rating of 130°C, making it suitable for diverse industrial, laboratory, and manufacturing applications.

Compact in size with dimensions of 38 mm length, 35 mm width, and 30 mm depth, and weighs approximately 400 grams, it facilitates easy integration into existing PCB layouts without compromising footprint. Manufactured in Poland, this transformer meets high quality and safety standards essential for professional electronic components.

Operates with twin 115 V ac primary windings configurable in series or parallel. Delivers 24 V ac secondary voltage from dual outputs. Designed for through hole mount providing strong PCB attachment. Features fully shrouded bobbins with 100% electrical and flash testing for safety.

Supports frequency range from 50 Hz to 60 Hz for versatility. Maximum operating temperature is rated at 130°C to ensure durability. Constructed with double section metric bobbin and full varnish impregnation for quality.

Meets stringent IECBSEN 615586, RoHS, CE, and ASNZS 61558 standards. Compact dimensions: 38 mm length, 35 mm width, and 30 mm depth. Manufactured in Poland for assured quality control.

This RS PRO PCB Transformer is ideal for industrial electronic applications, power supplies, HVAC systems, manufacturing machinery, and laboratory equipment where reliable voltage transformation and defined standards compliance are critical.
