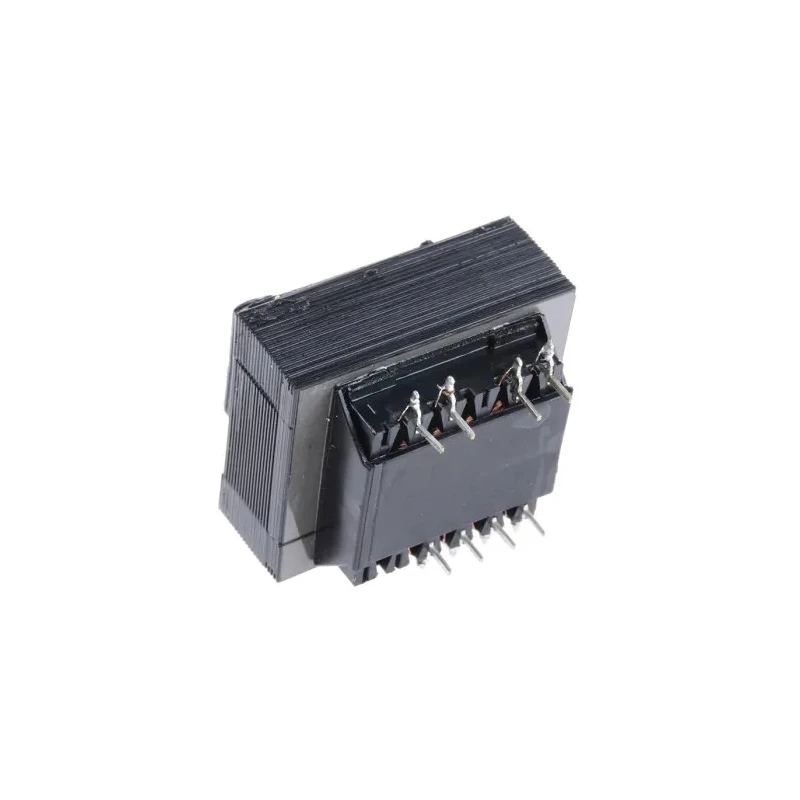

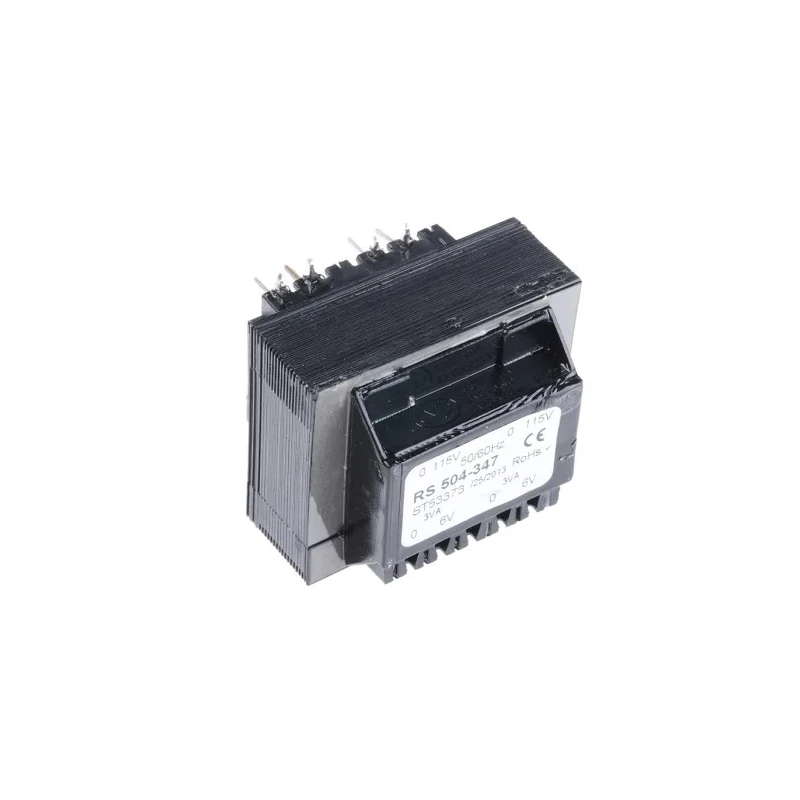

RS PRO 24 V AC 2 Output Through Hole PCB Transformer, Dual Secondary Windings, 12VA Power, CE, AS/NZS 61558.2.6 504-347

RS PRO 504-347 is a 24 V AC 2 Output Through Hole PCB Transformer designed for reliable power supply needs in electronic circuits. It features dual secondary windings capable of supplying two separate output voltages simultaneously. The transformer offers a power rating of 12VA and can operate safely up to a maximum temperature of 130°C, making it suitable for demanding industrial and commercial applications.

This transformer is designed for through hole PCB mounting, ensuring a secure and stable installation. It includes twin 115V AC primary windings that can be connected in series for 230V or parallel for 115V operation, enhancing flexibility in diverse electrical setups. The unit operates within a frequency range of 50Hz to 60Hz for compatibility with standard power sources.

Fully shrouded bobbins and full varnish impregnation provide robust insulation and mechanical protection. The product has undergone 100% electrical and flash testing to ensure safety and reliability. It meets key international standards and approvals including CE, AS/NZS 61558.2.6, IEC/BS/EN 61558-1, and RoHS compliance, supporting environmental safety and regulatory requirements.

The transformer is compact, measuring 43mm in length, 36mm in width, and 33mm in depth, with a weight of 400g. It offers an isolation voltage of 4kVrms which enhances its protection capabilities against voltage surges and faults. This makes it a preferred choice for use in industrial, laboratory, HVAC, manufacturing, and electronic equipment design sectors.

Industrial users benefit from its dual-output versatility and compliance with multiple standards ensuring seamless integration in power supply and distribution applications. The robust construction and quality testing assure long service life and dependable operation in critical environments.

Dual secondary windings offer flexible output configurations. High operating temperature and isolation voltage rating ensure safety. Compact through hole design supports PCB mounting requirements. Meets multiple international safety and environmental standards.

Ideal for use in industrial, commercial, and manufacturing environments. Explore more RS PRO transformers and power supplies in the Electronics & Electricals category on EnvMart to find compatible components for your project needs.
