| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Current | 5A |
| Gender | Male |
| Contact Material | Brass |
| Series | Micro MATE-N-LOK |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Interfaces | lance mechanism for secure retention in housing |
| For Use With | Micro MATE-N-LOK Connector Housing |
| Contact Plating | Bright Tin |
| Minimum Wire Size mm² | 0.05mm² |
| Maximum Wire Size mm² | 0.1mm² |
| Minimum Wire Size AWG | 30AWG |
| Maximum Wire Size AWG | 26AWG |
| Maximum Contact Resistance | 20mΩ |

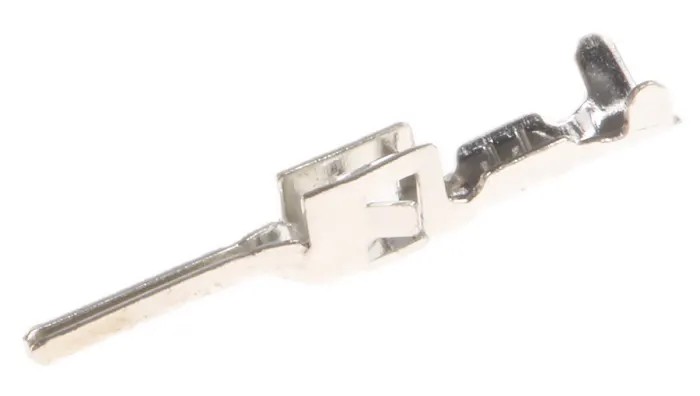

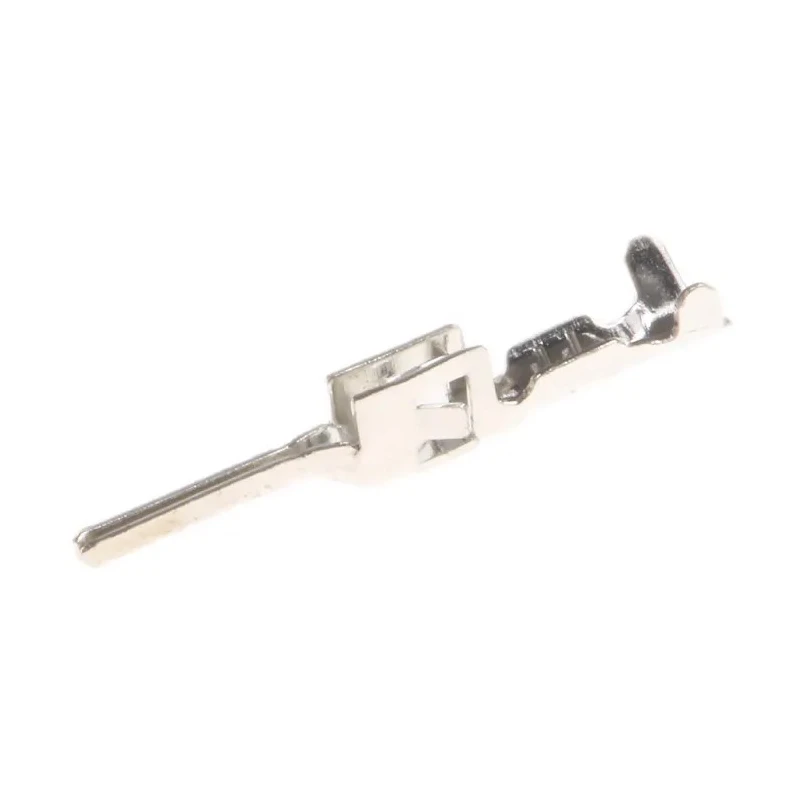

TE Connectivity 1-794613-0 Micro MATE-N-LOK Series Male Crimp Terminal is a high-quality crimp contact designed for use with Micro MATE-N-LOK connector housings. This component features a brass contact with bright tin plating, optimizing durability and corrosion resistance for industrial and commercial electrical applications.
The terminal supports wire sizes from a minimum of 0.05 mm² (30 AWG) to a maximum of 0.1 mm² (26 AWG) and is rated for a current capacity of up to 5 amps. Its dual beam contact design ensures a reliable and stable electrical connection, while the locking lance mechanism secures the contact firmly within the connector housing, preventing disconnection under vibration or mechanical stress.
Operating temperature range spans from -40°C to 105°C, making it suitable for various operating environments including electronic assembly, industrial machinery wiring, and control panels. The crimp termination type facilitates quick and reliable wire connections, enhancing assembly efficiency.
The Micro MATE-N-LOK 3mm connector system offers a wire-to-wire and wire-to-board solution, employing contacts spaced on a 3 mm centerline with a compact mating height, ideal for compact electronic devices and LED lighting applications.
Constructed with brass contact for excellent electrical conductivity and mechanical strength. Bright tin plating improves corrosion resistance. Dual beam contact design provides stable electrical connections. Locking lance mechanism ensures secure retention within connector housing.
Compatible for gauge sizes from 30 AWG to 26 AWG. Crimp termination enables efficient and reliable wire attachment. Temperature rating suitable for harsh industrial environments. Rated current capacity of 5 amps.
This product is engineered for industrial, commercial, and electronic component manufacturing applications requiring dependable wire connection solutions. The contact suits diverse scenarios including enclosure wiring, control systems, and LED lighting assembly environments.
Explore a broad range of electronic components and connectors on EnvMart to find compatible parts and accessories for your project needs.
