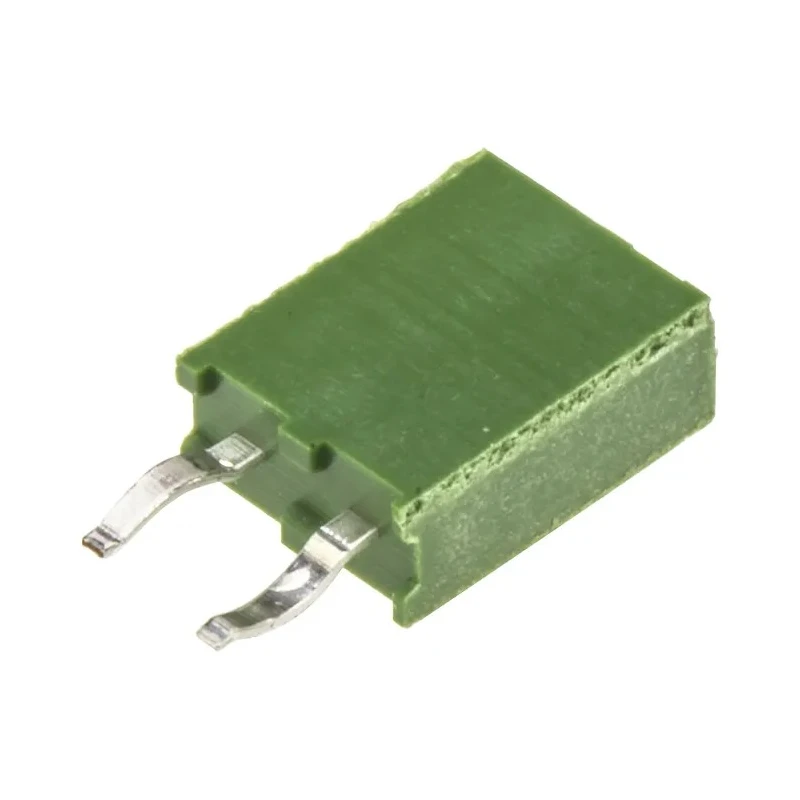

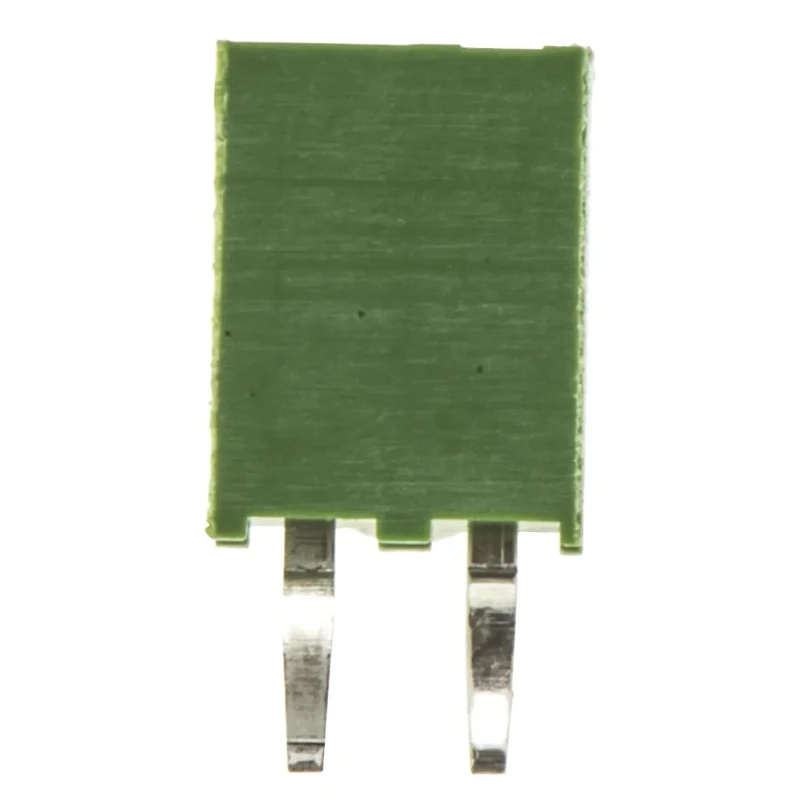

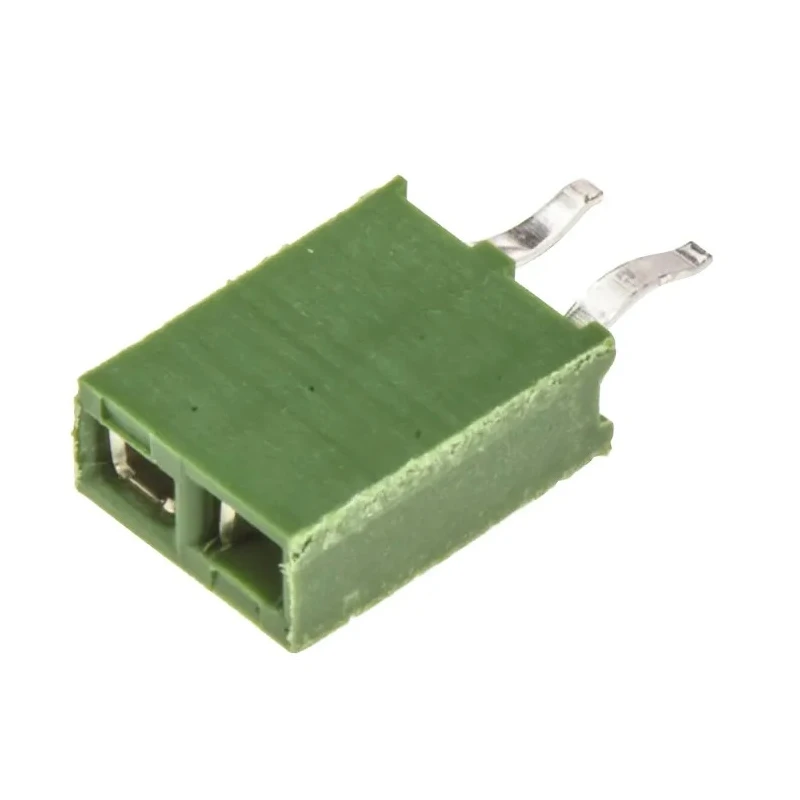

TE Connectivity AMPMODU HV100 Series Straight Through Hole PCB Socket, 2-Contact, 1 Row, 2.54 mm Pitch Solder HV100
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 12A |
| Model | HV100 |
| Mount Type | Through Hole |
| Contact Material | Bronze |
| Series | AMPMODU HV100 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Socket Strip |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 2 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Designed for board-to-board connector systems with a 2.54 mm pitch.
- Features a straight orientation with kinked solder legs for secure PCB retention.
- Constructed with bronze contacts plated in tin for reliable conductivity.
- Supports a maximum current of 12 A and operates between -55°C and 105°C.
- Housings made from UL 94V-0 flame retardant thermoplastic ensure safety and durability.
- Single row socket strip series AMPMODU HV100 ideal for stacking applications.
- Available in multiple mounting heights to suit various design requirements.
Product Description
TE Connectivity HV100 PCB Socket model 215297-2 is a high-quality straight through hole PCB socket designed with 2 contacts in a single row, using a 2.54 mm pitch solder termination suitable for reliable board-to-board connection in electronic assemblies.
The socket's bronze female contacts are plated with tin, ensuring excellent electrical conductivity and corrosion resistance. The kinked solder legs provide a secure retention mechanism to the PCB, enhancing mechanical stability during manufacturing and operation.
The housing is manufactured from UL 94V-0 rated flame retardant thermoplastic, providing robust insulation and safety compliance. Featuring board stand-offs, these sockets accommodate stacking heights of 7 mm or 8.5 mm depending on specific part numbers in the AMPMODU HV100 series, facilitating versatile use in complex PCB layouts.
This product supports up to 12 A current and withstands operating temperatures from -55°C to 105°C, making it suitable for use in demanding industrial, electronics manufacturing, and prototyping applications.
The compact single-row socket strip design optimizes space while maintaining durability and performance. The TE Connectivity AMPMODU HV100 series is widely used in electronic components, power and connectors, and PCB socket applications, providing reliability and design flexibility for various electronic devices and systems.
Designed for board-to-board connector systems with a 2.54 mm pitch. Features a straight orientation with kinked solder legs for secure PCB retention. Constructed with bronze contacts plated in tin for reliable conductivity.
Supports a maximum current of 12 A and operates between -55°C and 105°C. Housings made from UL 94V-0 flame retardant thermoplastic ensure safety and durability. Single row socket strip series AMPMODU HV100 ideal for stacking applications.
Available in multiple mounting heights to suit various design requirements.
Explore the TE Connectivity AMPMODU HV100 range for trusted PCB Socket solutions in electronics manufacturing and industrial applications. EnvMart offers a comprehensive selection of industrial electronic components to meet your design and production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current of 12 A.
It operates between -55°C and 105°C.
The socket features a solder termination type.
This socket has 2 contacts in a single row.
The contacts are constructed from bronze and are plated in tin for conductivity.
The pitch of this connector is 2.54 mm.
This socket uses through hole mounting.
The socket features a straight orientation.
The housing is made from UL 94V-0 rated flame retardant thermoplastic.
The kinked solder legs provide secure PCB retention, enhancing mechanical stability during operation.
This socket is part of the AMPMODU HV100 series.
The country of origin for this product is India.
