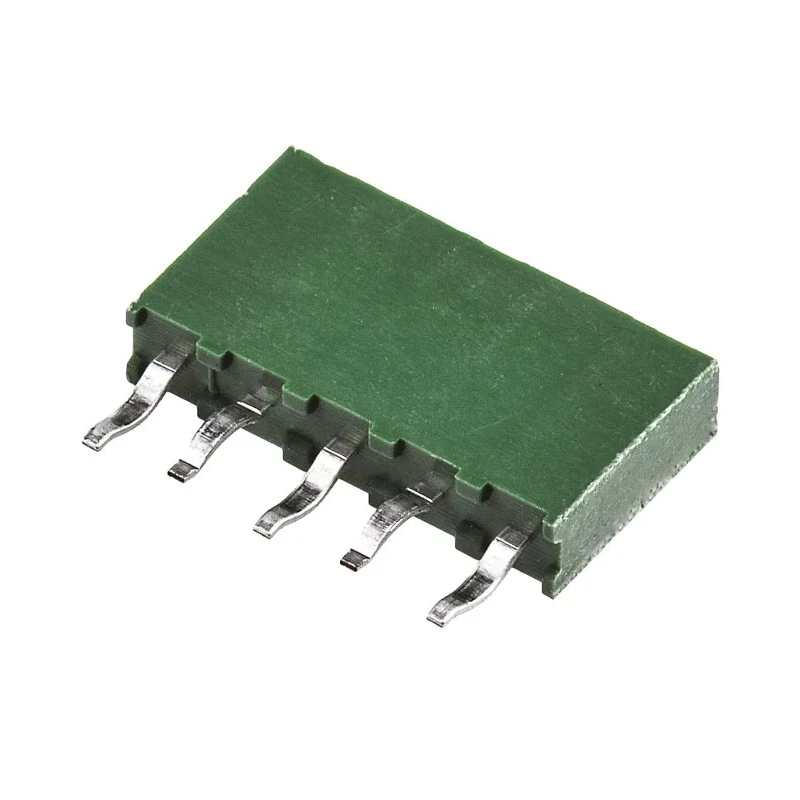

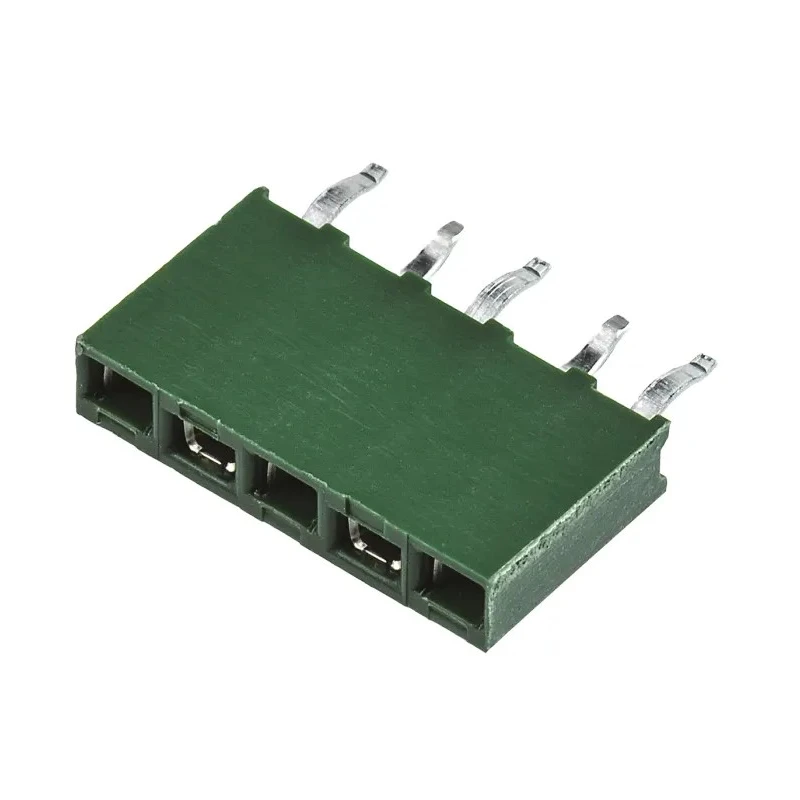

TE Connectivity AMPMODU HV100 Series 5-Contact 1 Row 2.54 mm Pitch Straight Through Hole PCB Socket HV100
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 12A |
| Model | HV100 |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Bronze |
| Series | AMPMODU HV100 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Socket Strip |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 5 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Rated current capacity of 12A for dependable electrical performance.
- Constructed with polyester housing for excellent flame retardancy and durability.
- Kinked solder legs provide secure retention to the PCB.
- Accommodates stacking applications with available mounting heights of 7 mm and 8.5 mm.
- Contact material is bronze with tin plating ensuring corrosion resistance.
- Designed for vertical mounting with top entry orientation.
- Temperature range from -55°C to 105°C for versatile environmental use.
- Connector system is board-to-board with female contact gender.
Product Description
TE Connectivity HV100 series PCB Socket HV100 provides a robust solution for electronic assembly requiring secure and reliable board-to-board connectivity. This 5-contact, 1-row socket features a 2.54 mm pitch and is designed for through-hole mounting with a straight orientation, facilitating easy assembly and maintenance.
The socket housing is made from UL 94V-0 flame retardant polyester thermoplastic, enhancing safety by preventing flame propagation. The contact elements are bronze plated with tin, offering superior conductivity and corrosion resistance. The solder legs incorporate a kinked design to ensure secure PCB retention and mechanical stability during operation.
Available in two mounting heights, 7 mm and 8.5 mm, these sockets support stacking applications, providing design flexibility in complex electronic systems. Operating temperature ranges from -55°C to 105°C make these sockets suitable for a wide variety of industrial, commercial, and consumer electronics environments.
This series supports a maximum current of 12 amperes, fitting applications that demand reliable power handling without compromising signal integrity. The female contact gender and board-to-board connector system design make it ideal for compact PCB assemblies where high-density and dependable connections are essential.
Rated for 12A current ensuring robust electrical performance. Polyester housing meets UL 94V-0 flame retardant specification for safety. Kinked solder legs ensure strong and durable PCB attachment. Multiple mounting heights (7 mm and 8.5 mm) support versatile stacking configurations.
Bronze contact material with tin plating provides long-lasting conductivity and corrosion protection. Top entry vertical mounting for ease of use in PCB assembly. Wide operating temperature range (-55°C to 105°C) enhances environmental usability.
Designed for board-to-board applications with female contacts. Ideal for industrial, laboratory, manufacturing, and commercial electronic assembly.
TE Connectivity is a leading global provider of connectivity and sensor solutions, trusted by professionals in electronics manufacturing. Explore more PCB Sockets in the Electronics & Electricals category on EnvMart for all your assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TE Connectivity HV100 series PCB socket has a rated current capacity of 12A, ensuring reliable electrical performance.
The housing is constructed from polyester, which meets UL 94V-0 flame retardant specifications, while the contacts are made of bronze with tin plating for corrosion resistance.
This socket features a pitch size of 2.54 mm, which is standard for many PCB applications.
The HV100 series socket is available in two mounting heights: 7 mm and 8.5 mm, accommodating various stacking applications.
This model operates within a temperature range of -55°C to 105°C, making it suitable for diverse environmental conditions.
The HV100 series socket utilizes through-hole mounting, which facilitates easy assembly and maintenance on PCBs.
This PCB socket features 5 contacts, designed for reliable board-to-board connectivity.
The socket is designed for straight orientation with top entry, simplifying installation in PCB assemblies.
Yes, the HV100 series socket is specifically designed for board-to-board applications with female contact gender, ideal for compact assemblies.
This model employs solder termination, ensuring a secure connection to the PCB.
The kinked solder legs provide secure retention to the PCB, enhancing mechanical stability during operation.
The TE Connectivity HV100 series socket is manufactured in India.
