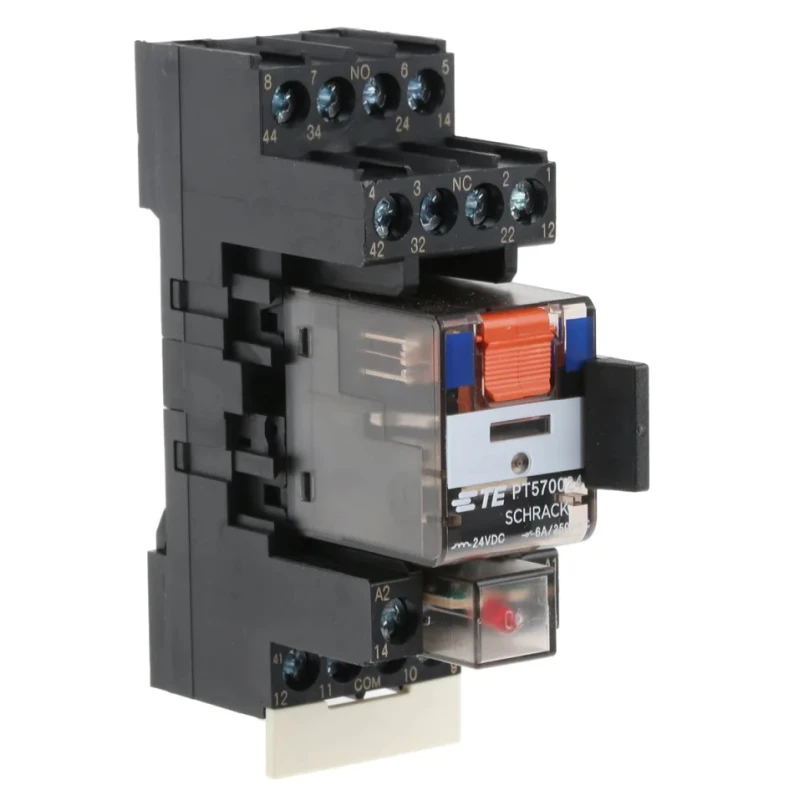

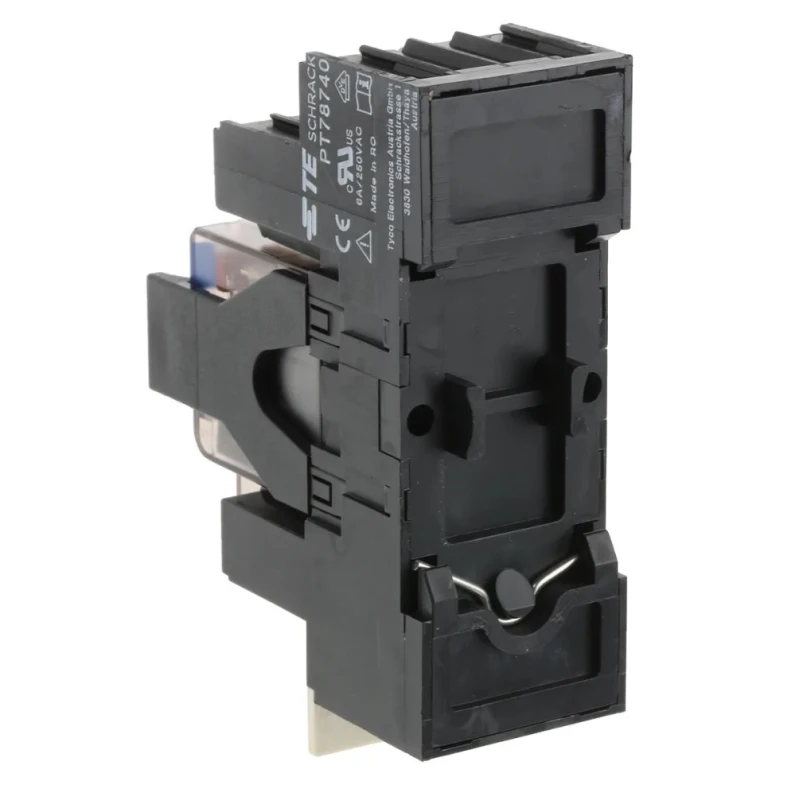

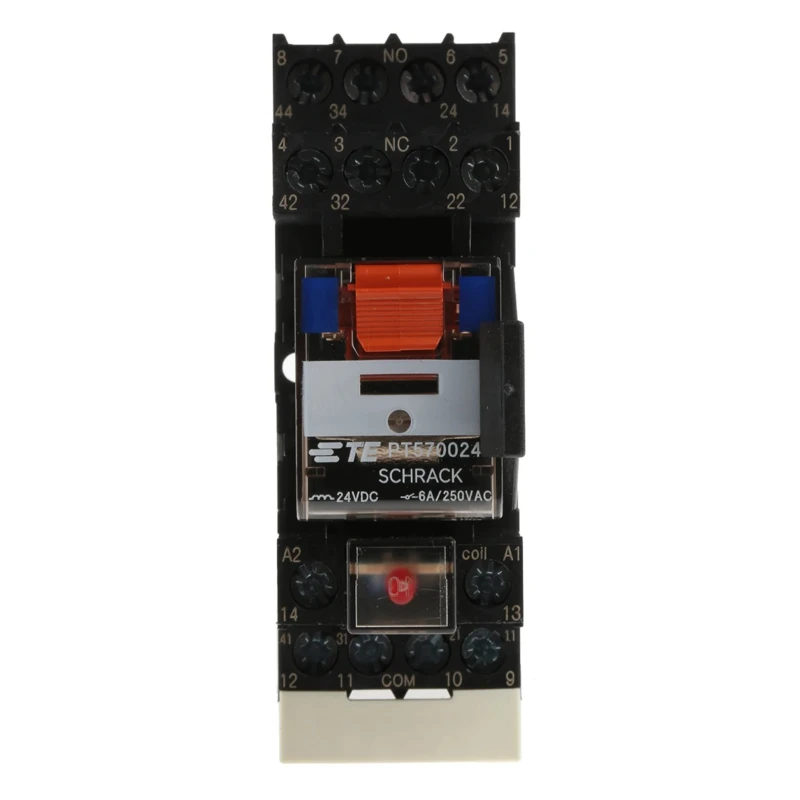

TE Connectivity DIN Rail Power Relay 24V DC Coil 6A Switching Current 4PDT PT5S7LC4 1415076-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 58mm |
| Length | 73.5mm |
| Model | PT5S7LC4 1415076-1 |
| Width | 27mm |
| Mount Type | DIN Rail |
| Contact Material | Silver Nickel Alloy |
| Series | PT |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | 4PDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 6A |
| Terminal type | Screw |
| Standards/Approvals | IEC, RoHS, UL, VDE |
| ANSI/ESD S20.20 | 2014 |
| BS EN 61340-5-1 | 2007 |
| Coil Resistance | 777Ω |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 240V ac |
| Coil Power | 750mW |
Key Features
- Non-latching relay designed for DIN rail mounting.
- Equipped with a mechanical and electrical indicator and manual test tab.
- Includes LED and protection diode module for enhanced reliability.
- Provides a screw terminal type for secure electrical connections.
- Coil resistance of 777 ohms with coil power of 750 mW.
- Operates within a temperature range of -40°C to 70°C.
- Contact material made of silver nickel alloy for durability.
- Complies with IEC, RoHS, UL, and VDE standards and approvals.
Product Description
TE Connectivity PT5S7LC4 1415076-1 is a DIN rail mountable non-latching power relay designed for industrial and electrical automation applications. Powered by a 24V DC coil, this relay supports a switching current of 6A with a 4PDT contact configuration, making it versatile for various control and switching tasks.
The relay features screw terminal connections offering secure and reliable mounting. It includes both mechanical and electrical indicators as well as a manual test tab for easy diagnostics and maintenance. A dedicated LED and protection diode module enhances the relay's operational safety and reliability.
Designed to operate effectively in temperatures ranging from -40°C to 70°C, the relay uses a durable silver nickel alloy for its contacts and meets internationally recognized standards such as IEC, RoHS, UL, and VDE. The coil resistance is precisely 777 ohms, and coil power consumption is 750 mW.
This product package includes the relay itself, DIN rail socket, module, retainer, and marking tab, providing a complete solution for industrial control panels and automation systems. The logical arrangement of terminals and additional A2 terminal facilitates easier wiring and looping in complex installations.
Non-latching relay designed for DIN rail mounting. Equipped with a mechanical and electrical indicator and manual test tab. Includes LED and protection diode module for enhanced reliability. Provides a screw terminal type for secure electrical connections.
Coil resistance of 777 ohms with coil power of 750 mW. Operates within a temperature range of -40°C to 70°C. Contact material made of silver nickel alloy for durability. Complies with IEC, RoHS, UL, and VDE standards and approvals.
Includes DIN rail socket, module, retainer, and marking tab for comprehensive installation.
This relay is suitable for use in electrical automation, industrial machines, control panels, and manufacturing environments requiring reliable and precise Power Relay solutions. Ensure efficient switching and protection in demanding industrial and commercial applications.
Explore EnvMart for a wide range of electrical components and relays from reputed brands such as TE Connectivity to meet your industrial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay supports a switching current of 6A.
This model operates with a coil voltage of 24V DC.
It features a 4PDT contact configuration, allowing for versatile control and switching tasks.
The relay has a height of 58mm, a length of 73.5mm, and a width of 27mm.
It provides screw terminal connections for secure electrical connections.
The coil resistance is 777 ohms.
It operates effectively within a temperature range of -40°C to 70°C.
The contacts are made of silver nickel alloy, which contributes to their durability.
This relay complies with IEC, RoHS, UL, and VDE standards and approvals.
It includes a mechanical and electrical indicator, a manual test tab, an LED, and a protection diode module.
The coil power consumption is 750 mW.
This relay is suitable for electrical automation, industrial machines, control panels, and manufacturing environments.
