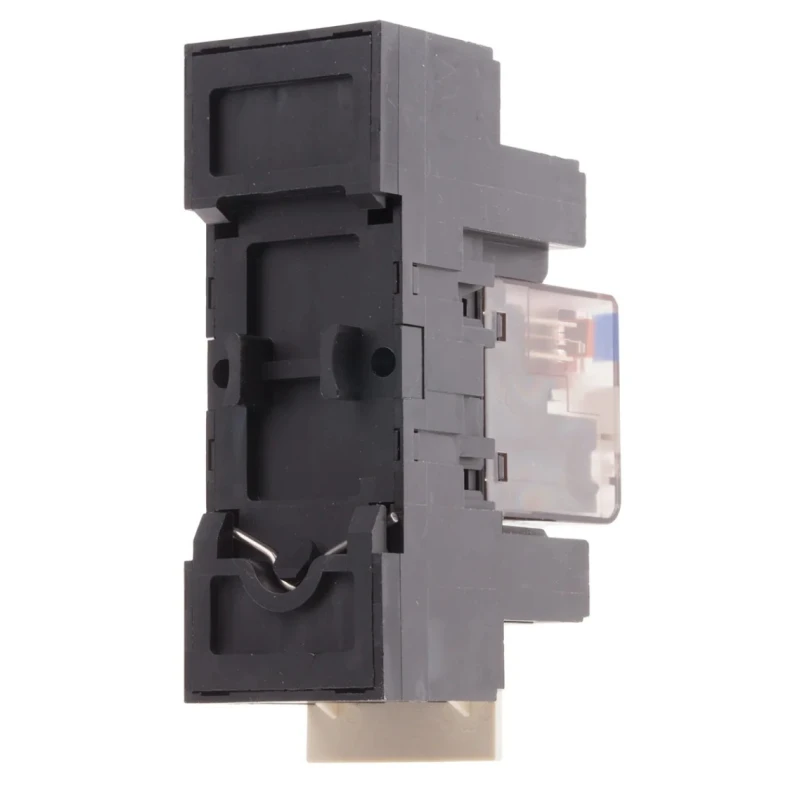

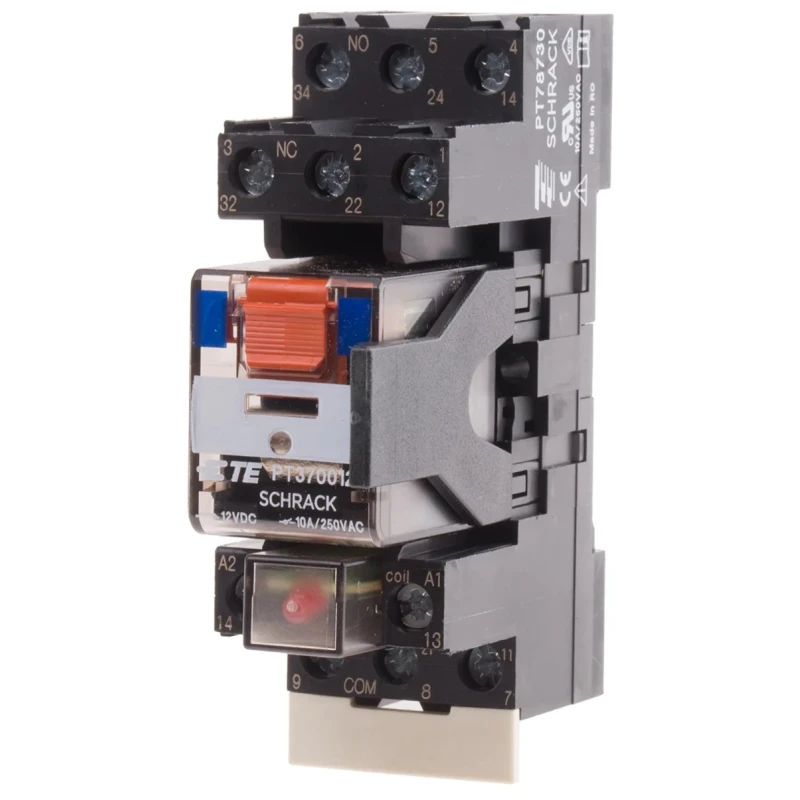

TE Connectivity DIN Rail Power Relay 12V dc Coil 10A Switching Current 3PDT PT3S7LB2 1-1415075-1

TE Connectivity PT3S7LB2 1-1415075-1 is a DIN Rail Power Relay designed for industrial and electrical automation applications requiring a reliable switching device with a 12V DC coil voltage and 10A switching current capability. Its 3PDT contact configuration allows multiple switching operations simultaneously, making it versatile for control circuits.

The relay features contacts made of silver nickel alloy, which offers excellent conductivity and corrosion resistance. It mounts easily on standard DIN rails, simplifying installation and maintenance in electrical panels.

Designed to operate reliably within a harsh temperature range from -40°C to 70°C, this relay is suitable for demanding industrial environments. Mechanical and electrical indicators, including a manual test tab, provide practical means for on-site operational checking.

Compliant with IEC 61810-1 and certified to RoHS, UL, and VDE standards, this relay meets international quality and safety requirements. The coil resistance is 192 Ohms, ensuring efficient coil operation, while the switching AC voltage rating of 400V AC allows its use in a variety of power switching applications.

The product package includes the relay, DIN rail socket, module, retainer, and a marking tab to assist with clear identification and secure assembly. Its compact size with dimensions 73.5mm length, 58mm height, and 27mm width supports efficient space utilization in control cabinets.

This TE Connectivity power relay is ideal for use in industrial automation, electrical control systems, HVAC units, manufacturing process controls, and other commercial electrical switching requirements.

Equipped with a silver nickel alloy contact material for enhanced durability. Mount type is DIN Rail facilitating easy installation in control panels. Operates in a temperature range from -40°C to 70°C, suitable for industrial environments.

Includes a manual test tab and mechanical/electrical indicators for functional verification. Complies with IEC 61810-1 and holds certifications including RoHS, UL, and VDE. Coil resistance of 192 Ohms ensures stable coil performance.

Switching AC voltage rating of 400V AC supports high power applications. Package contents include relay, DIN rail socket, module, retainer, and marking tab. Compact dimensions of 73.5mm length, 58mm height, and 27mm width.
