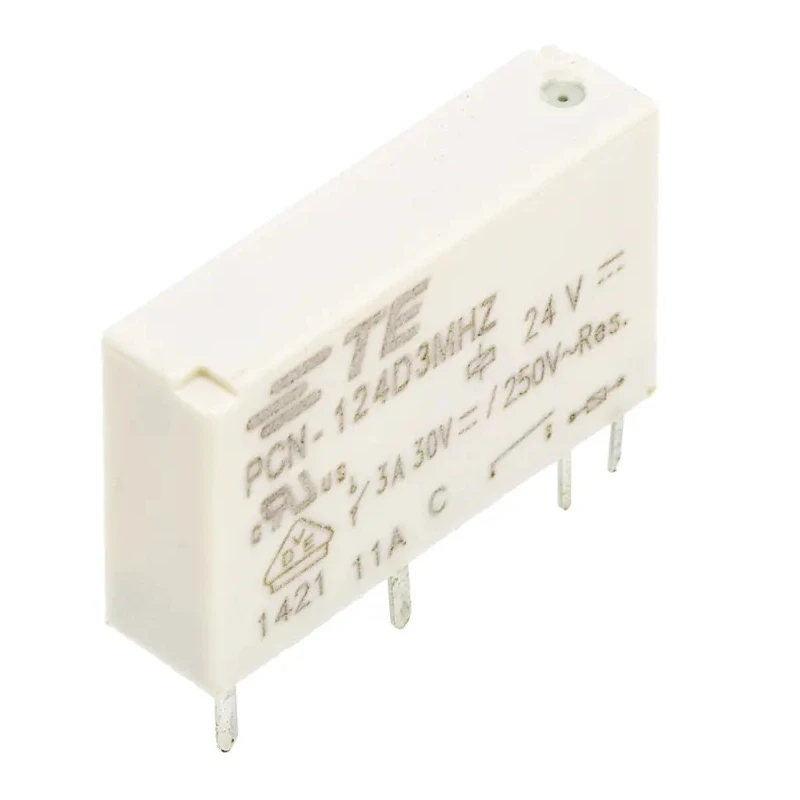

TE Connectivity PCB Power Relay, 24V DC Coil, 3A Switching Current, SPST PCN-124D3MHZ000
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Height | 12.5mm |
| Length | 20mm |
| Model | PCN-124D3MHZ000 |
| Width | 5mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | PCN |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -30°C |
| Switching Current | 3A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 4.8kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 24V dc |
| Coil Power | 120mW |
| Panasonic SPNO Non-Latching Relay PCB Mount, 24V dc Coil, 5 ABrand | Panasonic |
Key Features
- Extremely slim design with a 5mm width for compact PCB integration.
- Silver nickel alloy contact material ensures durability and consistent performance.
- Wide operating temperature range from -30°C to 70°C suitable for diverse environments.
- Coil resistance rated at 4.8kΩ with a coil power consumption of 120mW for energy-efficient operation.
- Supports switching power of 750VA and switching DC voltage of 24V DC.
- Features reinforced insulation and cadmium-free contacts complying with RoHS standards.
- Mount type optimized for PCB soldering with secure and reliable terminal connectivity.
- Suitable for industrial, automation, and electrical control applications requiring reliable relay switching.
Product Description
TE Connectivity PCN-124D3MHZ000 is a high-quality PCB power relay engineered for efficient electrical switching with a 24V DC coil and a 3A switching current. This SPST relay is designed for mounting on printed circuit boards (PCB), providing reliable control in compact industrial and automation equipment.
The relay's extremely slim profile, only 5mm in width, allows for space-saving PCB layouts without compromising performance. Its contacts are made of silver nickel alloy, ensuring durability and excellent conductivity. With a coil resistance of 4.8kΩ and low power consumption of 120mW, this relay offers energy-efficient operation suitable for sensitive electronic circuits.
The operational temperature range from -30°C to 70°C allows usage in diverse industrial environments. The relay supports switching power up to 750VA and accommodates switching DC voltage of 24V, making it versatile for various applications.
Designed with reinforced insulation and cadmium-free contacts, the relay complies with RoHS standards, reflecting adherence to environmental and safety regulations. Its solder terminals facilitate secure PCB mounting and robust connectivity.

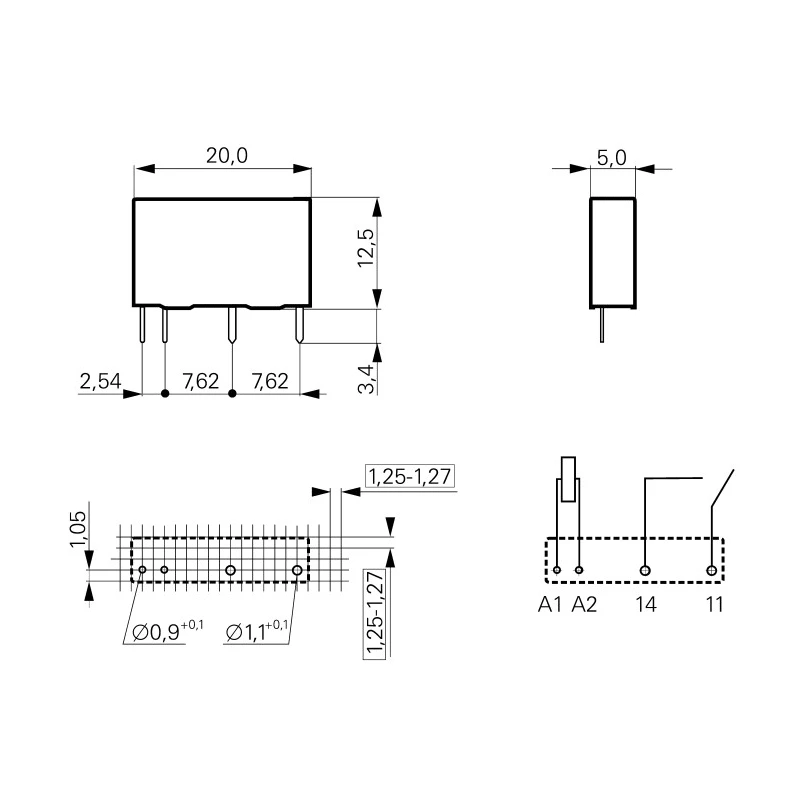

Compact dimensions of 20mm length and 12.5mm height enable integration into dense electronic assemblies. This relay is ideal for use in electrical control systems, automation solutions, and industrial equipment requiring reliable switching performance and long service life.
Extremely slim 5mm width suitable for compact PCB designs. Durable silver nickel alloy contact material. Wide operating temperature range from -30°C to 70°C. Low coil power consumption of 120mW and 4.8kΩ coil resistance.
Supports 3A switching current and 750VA switching power. Compliant with RoHS directive and environmentally safe. Designed for PCB solder mounting with reliable terminals. Compact size 20mm x 12.5mm x 5mm for versatile applications.
This product is manufactured in China and supplied new. Ideal for industrial, automation, HVAC, and electrical applications requiring reliable power relay solutions. Explore more products in the Power Relay category at EnvMart for your automation and control requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current rating of 3A, making it suitable for various applications requiring reliable relay switching.
The coil voltage for this relay is 24V DC, which is necessary for its operation.
The relay has compact dimensions of 20mm in length, 12.5mm in height, and 5mm in width, allowing for space-saving PCB integration.
It operates within a temperature range of -30°C to 70°C, making it suitable for diverse industrial environments.
This relay features a Single Pole Single Throw (SPST) contact configuration, which is common for basic switching applications.
The coil resistance is rated at 4.8kΩ, contributing to its energy-efficient operation with a low power consumption of 120mW.
The contacts are made of silver nickel alloy, which ensures durability and consistent performance in electrical switching applications.
It is designed for PCB solder mounting, featuring solder terminals that provide secure and reliable connectivity.
This model supports a maximum switching power of 750VA, making it versatile for various electrical applications.
Yes, it complies with RoHS standards, which ensures that it meets environmental and safety regulations regarding hazardous substances.
It is suitable for industrial, automation, and electrical control applications that require reliable relay switching performance.
