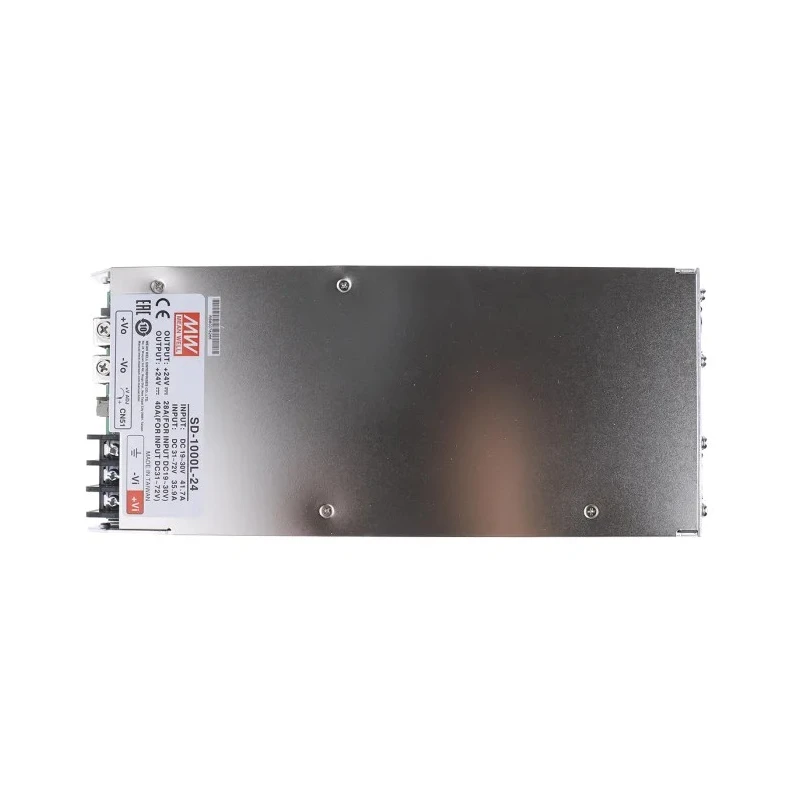

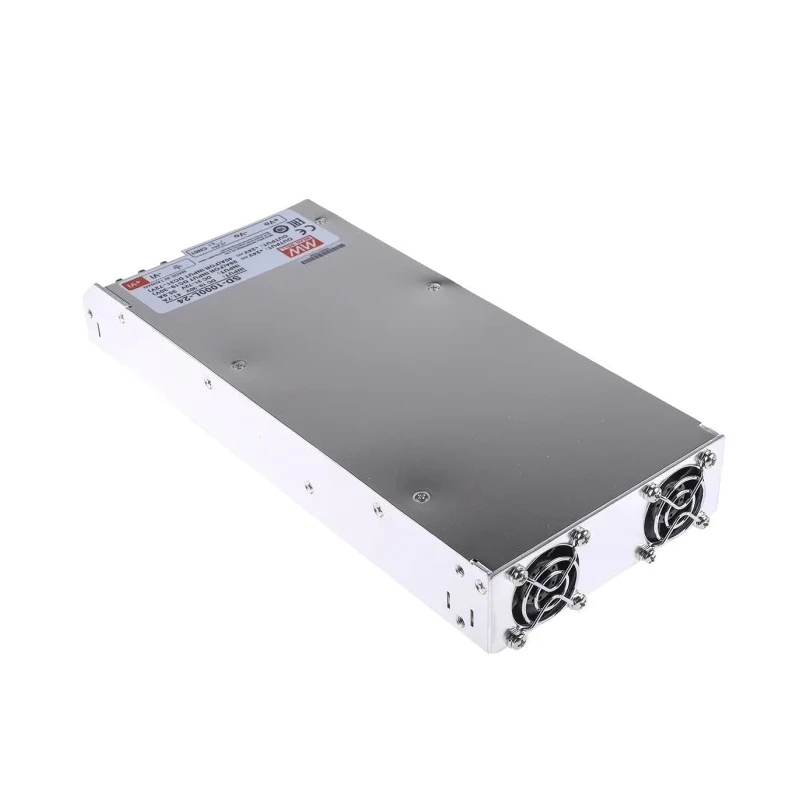

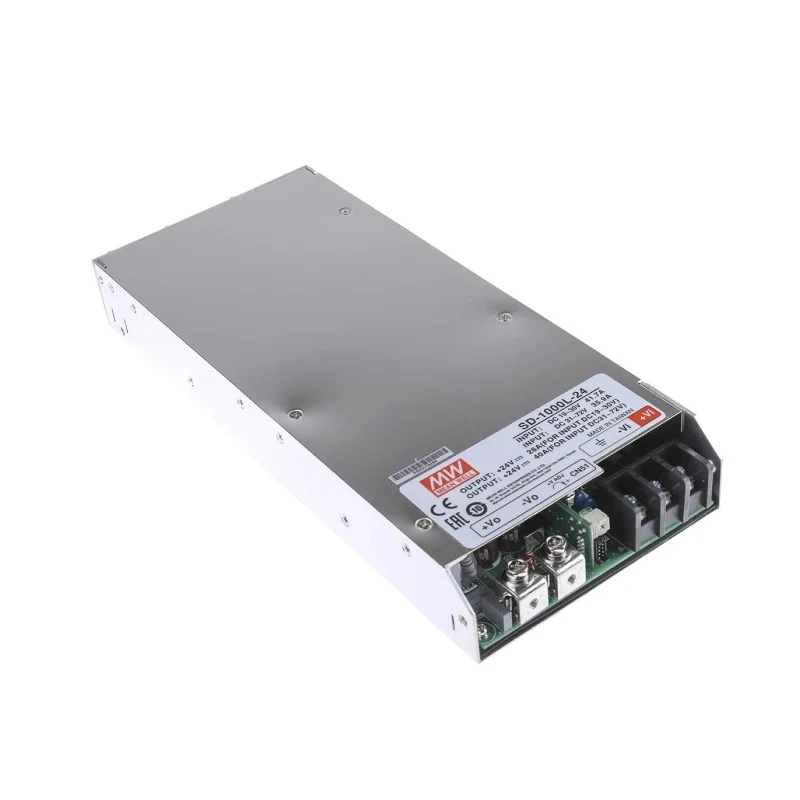

MEAN WELL SD-100 DC/DC Converter 24V DC Output 72V DC Max Input 960W Power Surface Mount SD-1000L-24

MEAN WELL SD-1000L-24 DC/DC Converter is a high-performance power supply designed for industrial and electronic applications requiring stable 24V DC output. The single output enclosed and regulated converter supports a broad input voltage range of 19V to 72V DC, making it highly versatile for varied power sources.

This surface mount unit features a compact low-profile design with dimensions 295 mm length, 127 mm width, and 41 mm depth, weighing 1.94 kg. It achieves a high power density of 10.7W per cubic inch, delivering up to 960 watts output power efficiently at 88% efficiency rating.

Equipped with advanced protection mechanisms, the converter safeguards connected equipment against short circuits, over-load, over-voltage, and over-temperature conditions. Additionally, it includes an isolation voltage of 2kV AC to enhance electrical safety and reduce noise interference.

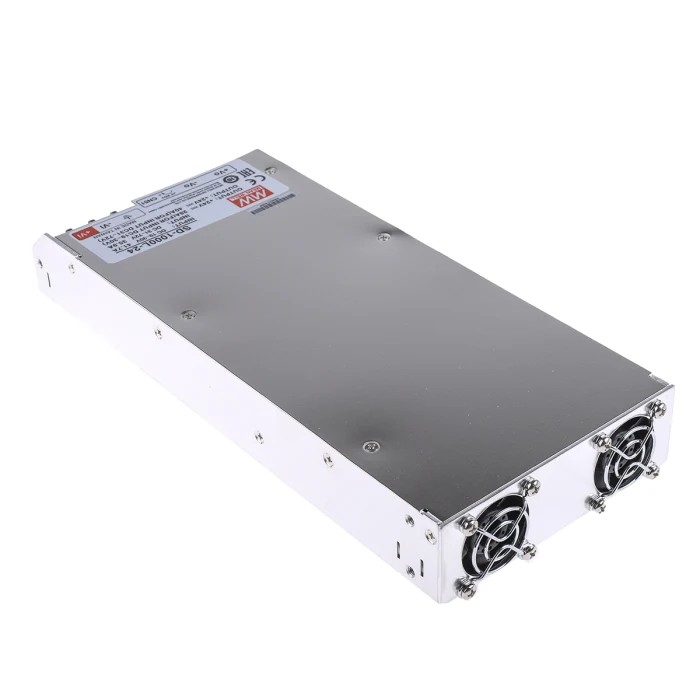

The operating temperature range spans from -20°C to 60°C, supported by dual built-in fans with speed control for forced air cooling, ensuring reliable performance even in demanding thermal environments. Output voltage is adjustable from 23V to 30V via onboard controls, and the unit features an LED power-on indicator along with remote ON/OFF and remote sense capabilities for flexible system integration.

This model meets multiple international standards including IEC 60950-1, and approvals from CB, TUV, EAC, and TÜV. It is manufactured in Taiwan, province of China, reflecting high quality and reliability.

Ideal for industrial instrumentation, telecommunications, laboratory equipment, and other commercial electronics requiring regulated DC power conversion, the MEAN WELL SD-1000L-24 combines high efficiency, compactness, and robust protection features in one reliable package.

High reliability with MTBF of 898200 hours. Wide input voltage range from 19V to 72V DC. Surface mount installation for flexible deployment. Output voltage adjustable between 23V and 30V. Isolation voltage up to 2kV AC ensuring safety and noise immunity.

Operating temperature range from -20°C to 60°C for diverse environments. Forced air cooling via dual built-in fans with speed control. Multiple protection features including short circuit, overload, over-voltage, and over-temperature.

Efficiency rating of 88% for energy efficient operation. Compact dimensions and lightweight design with 1.94 kg weight. Explore the extensive range of DC/DC Converters and power supply solutions on EnvMart for suitable components for your industrial and electronic needs.
