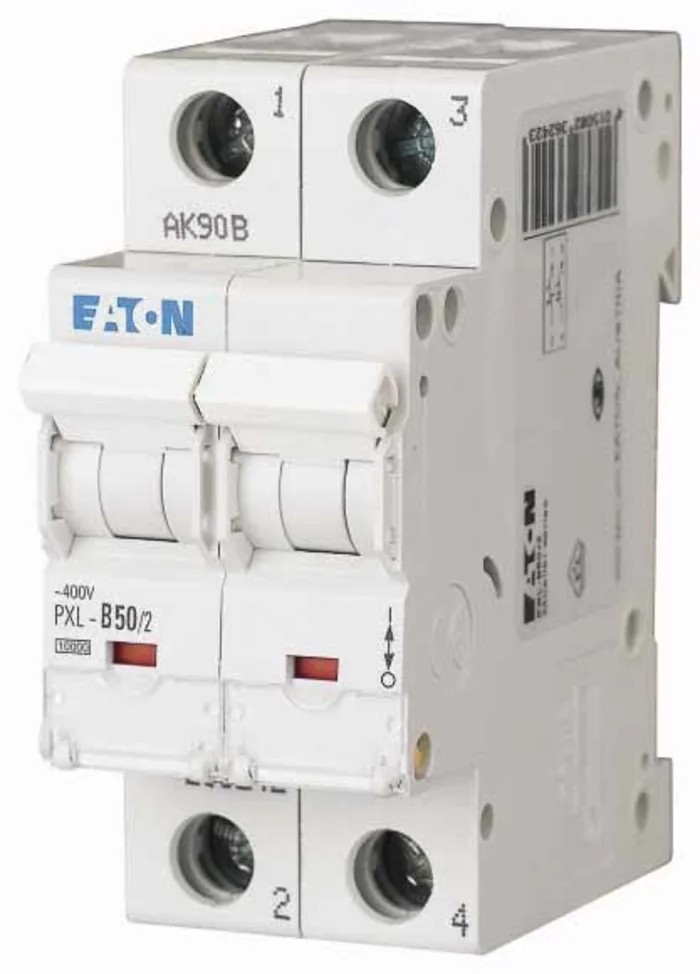

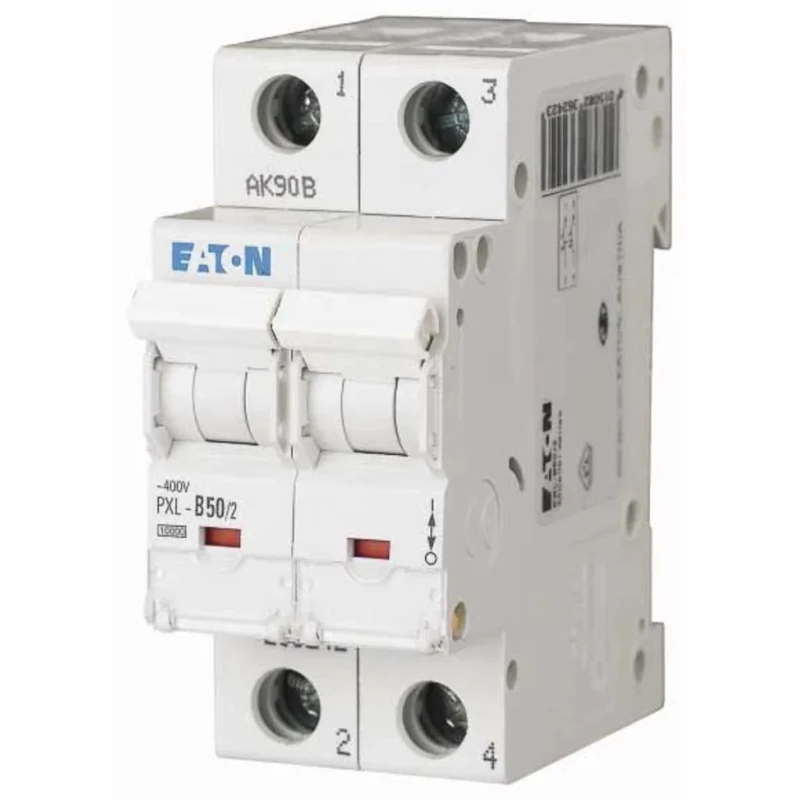

Eaton xPole Miniature Circuit Breaker 2-Pole 50A Type B 400V AC 48V DC 10 kA Breaking Capacity 236242 PXL-B50/2
Specifications
| Country of Origin | Austria |
|---|---|
| Range | xPole |
| Brand | Eaton |
| Height | 35mm |
| Model | 236242 PXL-B50/2 |
| Depth | 60mm |
| IP Rating | IP20 |
| Width | 80mm |
| Mount Type | DIN Rail |
| Current Rating | 50A |
| Series | PXL |
| Breaking Capacity | 10kA |
| Number of Poles | 2 |
| Standards/Approvals | EN 60898, IEC |
| Rated AC Voltage | 400V ac |
| Rated DC Voltage | 48V dc |
| Tripping Characteristics | Type B |
| Tripping Mechanism | Electromagnetic |
| Reset Actuator Type | Toggle Switch |
| Break Time | Instantaneous |
Key Features
- The device supports both 400V AC and 48V DC rated voltages for versatile applications.
- Dual terminals are compatible with busbar and cables for flexible installation.
- It features a red-green contact position indicator enhancing operator safety.
- Toggle switch actuator with instantaneous break time ensures rapid response.
- Mounts easily on DIN rail with quick-fit locking in three positions.
- Compliance with IEC and EN 60898 standards guarantees quality and safety.
- The IP20 rating protects against finger and back-of-hand contact.
- Used extensively in industrial, commercial, and residential electrical systems.
Product Description
Eaton 236242 PXL-B50/2 Miniature Circuit Breaker is a 2-pole device rated at 50 amps with Type B tripping characteristics. It supports 400V AC and 48V DC rated voltages and offers a breaking capacity of 10 kA, suitable for advanced protection of electrical circuits.
The circuit breaker incorporates a red-green contact position indicator allowing easy identification of its operational status, improving operator safety. The toggle switch actuator provides a simple color-coded mechanism for manual control.
Designed for installation on DIN rails, it features dual terminals compatible with both busbars and cables, providing installation flexibility in industrial and commercial switchgear assemblies. The device includes a quick-fit action with three locking positions for top-hat rails, simplifying mounting.
The MCB complies with IEC and EN 60898 standards, ensuring high-quality construction and safety performance. It has an IP20 rating, providing protection against accidental finger contact and back-of-hand intrusion, making it safe for operator handling.
Typical applications include industrial plants, commercial buildings, and residential electrical installations where precise and reliable overcurrent protection is needed. Its electromagnetic tripping mechanism responds instantaneously for effective circuit interruption.
The rated current is 50A suitable for medium power distribution networks. Breaking capacity of 10 kA supports system safety during short circuits. Compact dimensions (80mm width, 60mm depth, 35mm height) enable space-efficient panel design.
Dual terminals offer versatility for electrical wiring arrangements. Compliance with international standards assures installation conformance. Toggle switch and indicator enhance usability and operational awareness. IP20 rating safeguards personnel from electrical hazards during operation.
Reliable performance for industrial, commercial, and residential circuit protection. Set includes one Eaton xPole Miniature Circuit Breaker model 236242 PXL-B50/2. Discover more electrical protection solutions in the Circuit Breakers & Fuse category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The breaking capacity of this model is 10 kA, suitable for ensuring system safety during short circuits.
It supports rated voltages of 400V AC and 48V DC, making it versatile for various applications.
The current rating of this miniature circuit breaker is 50A, suitable for medium power distribution networks.
This circuit breaker features an electromagnetic tripping mechanism that responds instantaneously for effective circuit interruption.
The dimensions are 80mm in width, 60mm in depth, and 35mm in height, allowing for space-efficient panel design.
It is designed for mounting on DIN rails, featuring a quick-fit locking mechanism in three positions.
The IP rating is IP20, which protects against accidental finger contact and back-of-hand intrusion.
It complies with IEC and EN 60898 standards, ensuring quality and safety performance.
The tripping characteristic is Type B, suitable for applications with moderate inrush currents.
It features dual terminals that are compatible with both busbars and cables, providing installation flexibility.
It is used extensively in industrial, commercial, and residential electrical systems where reliable overcurrent protection is needed.
The reset actuator type is a toggle switch, which allows for manual control of the circuit breaker.
