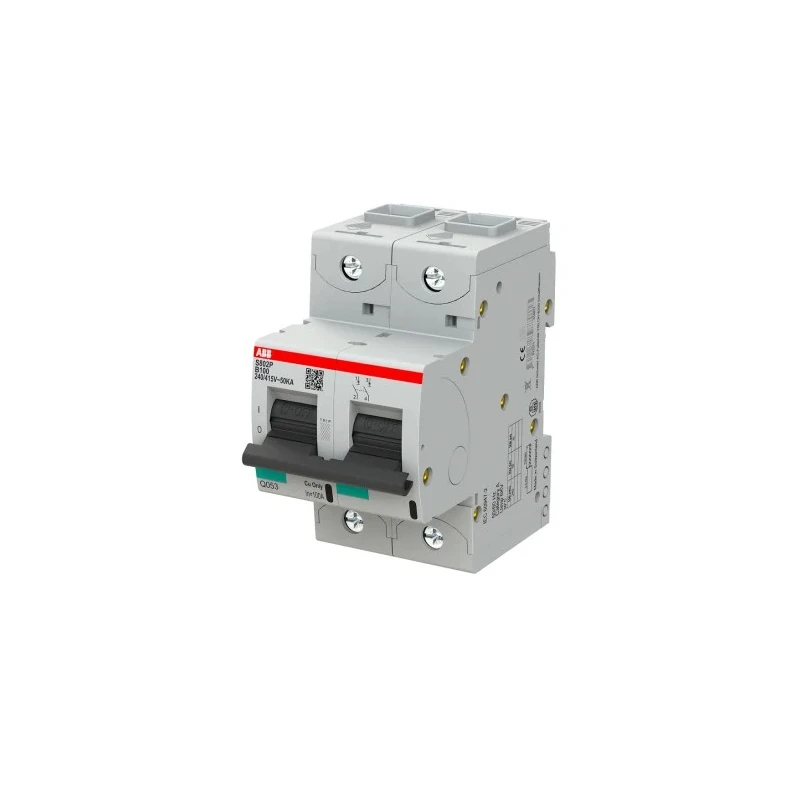

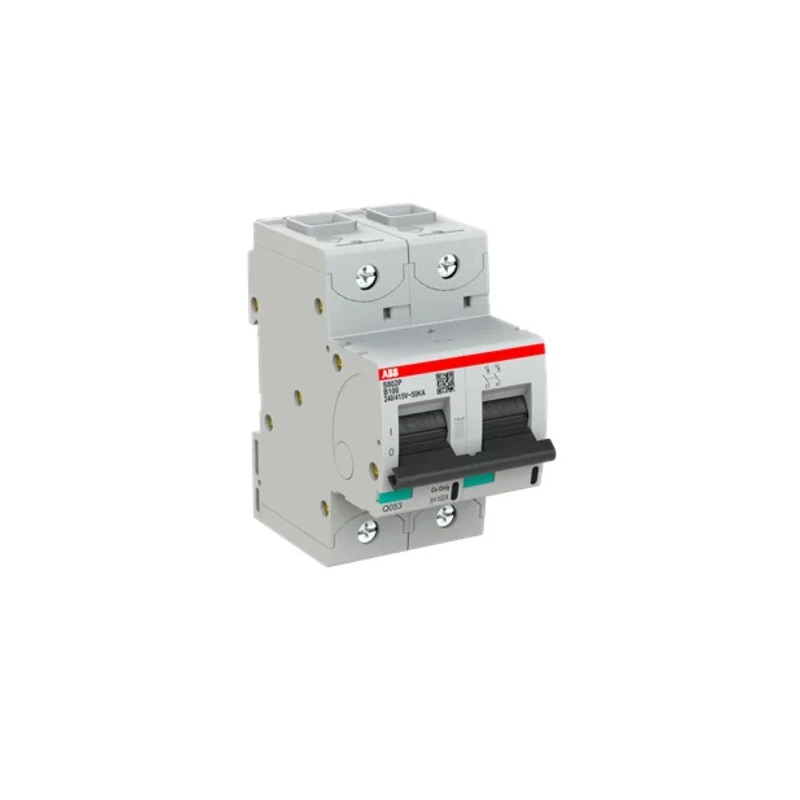

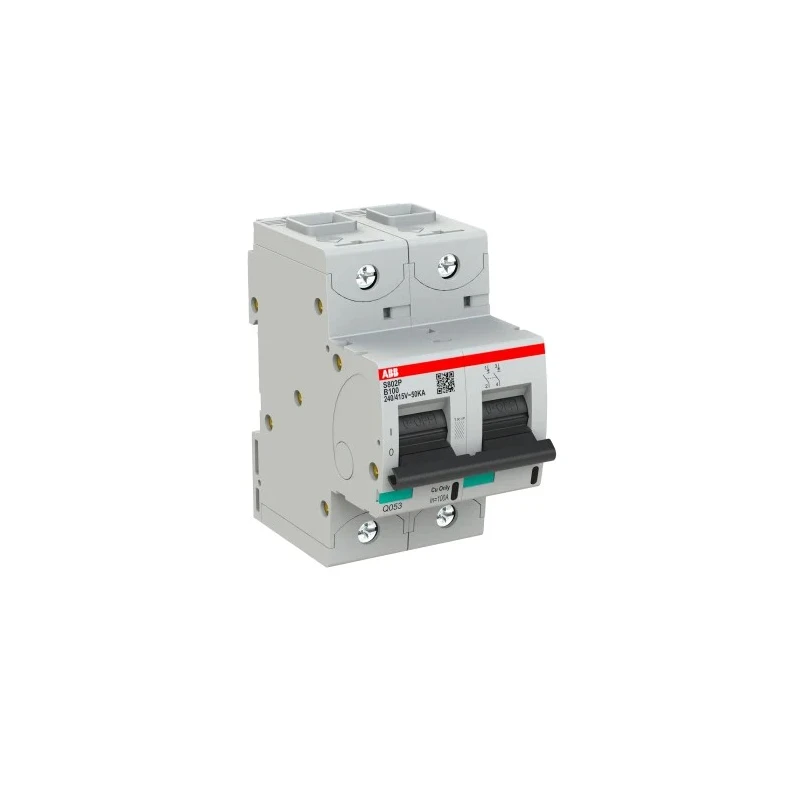

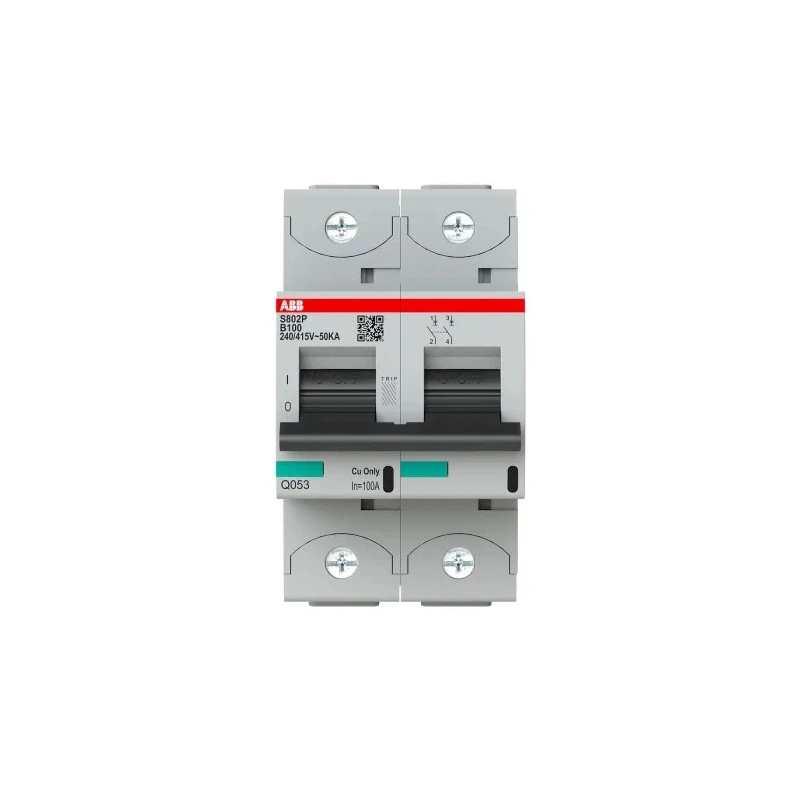

ABB High Performance S800N Miniature Circuit Breaker 2-Pole 100A Type B 690V AC 250V DC 36kA Breaking 2CCG001218R0001

ABB 2CCG001218R0001 High Performance S800N Miniature Circuit Breaker is a 2-pole device rated at 100A designed for reliable overcurrent protection in advanced electrical systems. It supports operational voltages up to 690V AC and 250V DC and features a robust 36 kA breaking capacity to safeguard circuits effectively in industrial and commercial settings.

This miniature circuit breaker utilizes thermomagnetic and electromagnetic tripping mechanisms and incorporates a toggle switch reset actuator for user-friendly manual resetting after trips. Its compact size with a width of 54mm, depth of 88.5mm, and height of 95mm ensures compatibility with standard DIN rail mounting systems, facilitating easy installation and maintenance.

The device is built to meet stringent international standards IEC/EN 60947-2 and IEC/EN 60898-1, assuring high performance and safety in demanding environments. Its IP20 rating provides protection against solid objects, making it suitable for industrial automation, commercial buildings, mechanical systems, and other applications that require dependable power control.

This circuit breaker performs reliably across a wide ambient temperature range from -25 to +60 degrees Celsius, extending its usability in various environmental conditions. The high breaking capacity improves protection against fault currents ensuring uninterrupted and safe electrical operation.

Type B tripping characteristics provide precise overload and short-circuit protection. High breaking capacity of 36 kA enhances circuit safety under fault conditions. Rated for both AC and DC voltages allowing flexible application scenarios.

Toggle switch reset actuator simplifies manual resetting after trips. DIN rail mounting facilitates straightforward installation and system integration. Robust construction and compliance with international standards assure durability.

IP20 protection level suitable for industrial and commercial environments. Wide operating temperature range increases reliability in diverse climates. Compact dimensions suit standard electrical panels and reduce footprint.

Ideal for protecting circuits in industrial automation and commercial infrastructures.

Choose ABB S800N Miniature Circuit Breaker 2CCG001218R0001 for optimal protection and operational safety in your electrical installations. Explore similar products and electrical protection solutions in the Electronics & Electricals category at EnvMart.
