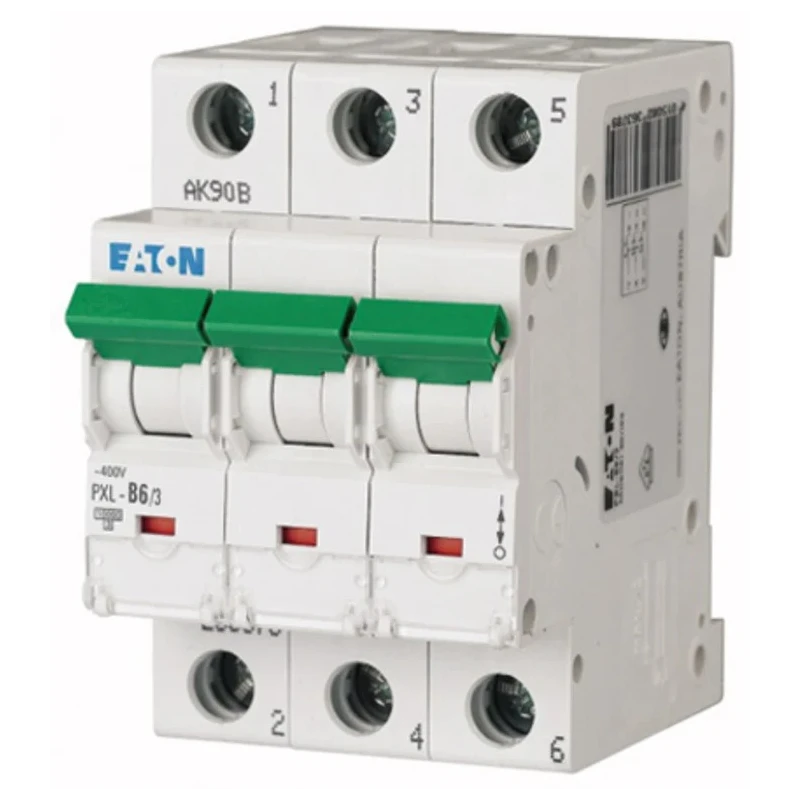

Eaton xPole Miniature Circuit Breaker 3-Pole 6A Type B 400V AC 48V DC 10kA Breaking Capacity 236378 PXL-B6/3
Specifications
| Country of Origin | Austria |
|---|---|
| Range | xPole |
| Brand | Eaton |
| Height | 52.5mm |
| Model | 236378 PXL-B6/3 |
| Depth | 60mm |
| IP Rating | IP20 |
| Width | 80mm |
| Mount Type | DIN Rail |
| Current Rating | 6A |
| Series | PXL |
| Breaking Capacity | 10kA |
| Number of Poles | 3 |
| Standards/Approvals | EN 60898, IEC |
| Rated AC Voltage | 400V ac |
| Rated DC Voltage | 48V dc |
| Tripping Characteristics | Type B |
| Tripping Mechanism | Electromagnetic |
| Reset Actuator Type | Toggle Switch |
| Break Time | Instantaneous |
Key Features
- This miniature circuit breaker supports 400V AC and 48V DC rated voltages.
- It features a high breaking capacity of 10kA ensuring robust protection.
- The mechanism uses electromagnetic tripping with instantaneous break time.
- Mounting is compatible with standard DIN rails, ensuring flexible installation.
- The device has IP20 rating for protection against finger access and foreign objects.
- Its compact dimensions are 80mm width, 60mm depth, and 52.5mm height.
- Equipped with a toggle switch reset actuator for easy operation.
- Supports busbar compatibility with double terminal lift/jaw connectors.
Product Description
Eaton 236378 PXL-B6/3 Miniature Circuit Breaker is a high-performance electrical protection device designed for residential, industrial, and commercial applications. It is a 3-pole circuit breaker from the xPole PXL series with a 6 amp current rating and Type B tripping characteristics, suitable for overcurrent protection in AC and DC circuits rated at 400 volts AC and 48 volts DC.
The breaker features a breaking capacity of 10 kiloamperes, making it capable of interrupting high fault currents safely. Its electromagnetic tripping mechanism provides instantaneous switch-off during fault conditions, enhancing system reliability.
Designed for easy installation and maintenance, this MCB mounts on standard DIN rails and includes a toggle switch actuator for manual reset. The device supports busbar compatibility with a double terminal lift/jaw system allowing flexible wiring options from top or bottom positions.
With an IP20 rating, it provides finger and back-of-hand protection to ensure user safety while operating. The breaker has compact dimensions of 80mm width, 60mm depth, and 52.5mm height to fit standard electrical panels efficiently.
This Eaton miniature circuit breaker is compliant with international standards EN 60898 and IEC, ensuring quality and reliable performance for diverse electrical circuit protection needs in industrial, manufacturing, commercial, and residential environments.
This Miniature Circuit Breaker supports 400V AC and 48V DC rated voltages. It features a high breaking capacity of 10kA ensuring robust protection. The mechanism uses electromagnetic tripping with instantaneous break time.
Mounting is compatible with standard DIN rails, ensuring flexible installation. The device has IP20 rating for protection against finger access and foreign objects. Its compact dimensions are 80mm width, 60mm depth, and 52.5mm height.
Equipped with a toggle switch reset actuator for easy operation. Supports busbar compatibility with double terminal lift/jaw connectors. Provides finger-proof and back-of-hand-proof safety features. Explore the Eaton product range on EnvMart for premium electrical protection equipment suitable for various industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The current rating of this miniature circuit breaker is 6A.
It supports rated voltages of 400V AC and 48V DC.
The breaking capacity is 10kA, allowing it to interrupt high fault currents safely.
It features an electromagnetic tripping mechanism that provides instantaneous break time during fault conditions.
The device has an IP20 rating, which provides protection against finger access and foreign objects.
The dimensions are 80mm in width, 60mm in depth, and 52.5mm in height.
It is designed for mounting on standard DIN rails, allowing for flexible installation.
It is equipped with a toggle switch reset actuator for easy operation.
This model complies with international standards EN 60898 and IEC.
It is suitable for residential, industrial, and commercial applications for overcurrent protection.
Yes, it supports busbar compatibility with double terminal lift/jaw connectors.
It belongs to the xPole series from Eaton.
