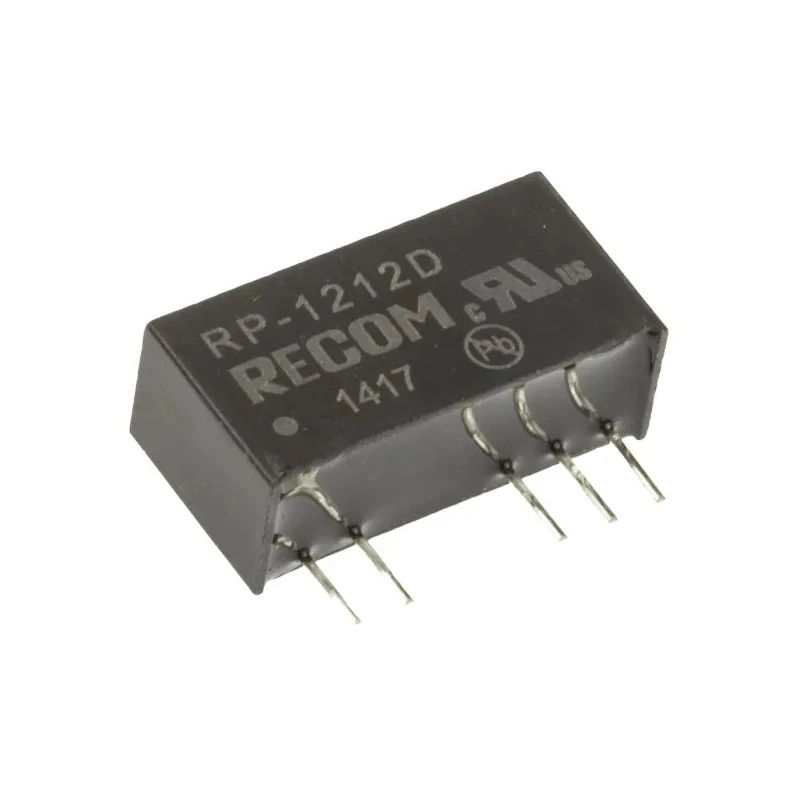

Recom Dual Output DC/DC Converter, 12V dc Output, 42 mA, 12V dc Input, 10.8V Input, 1 W Power, Through Hole Mount RP-1212D

Recom RP-1212D is a high-efficiency dual output DC/DC converter designed for reliable power supply in low-voltage electronic applications. It accepts an input voltage range from 10.8 V to 13.2 V dc, converting it into dual outputs of +12 V dc and -12 V dc with up to 42 mA current per output. The device is housed in a compact SIP through-hole package with 7 pins, facilitating easy integration onto printed circuit boards.

Its robust design includes integral short-circuit protection, high isolation voltage of 2.6 kV ac, and an operating temperature range between -40°C and +85°C, making it suitable for demanding industrial and commercial environments. The converter achieves efficiency between 79% and 82%, minimizing heat dissipation and power losses.

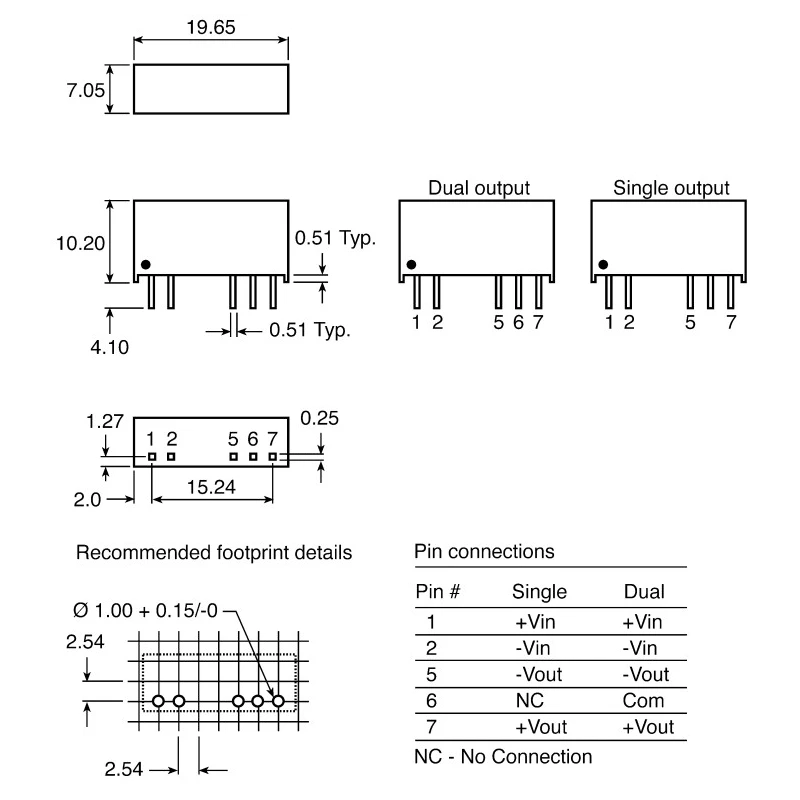

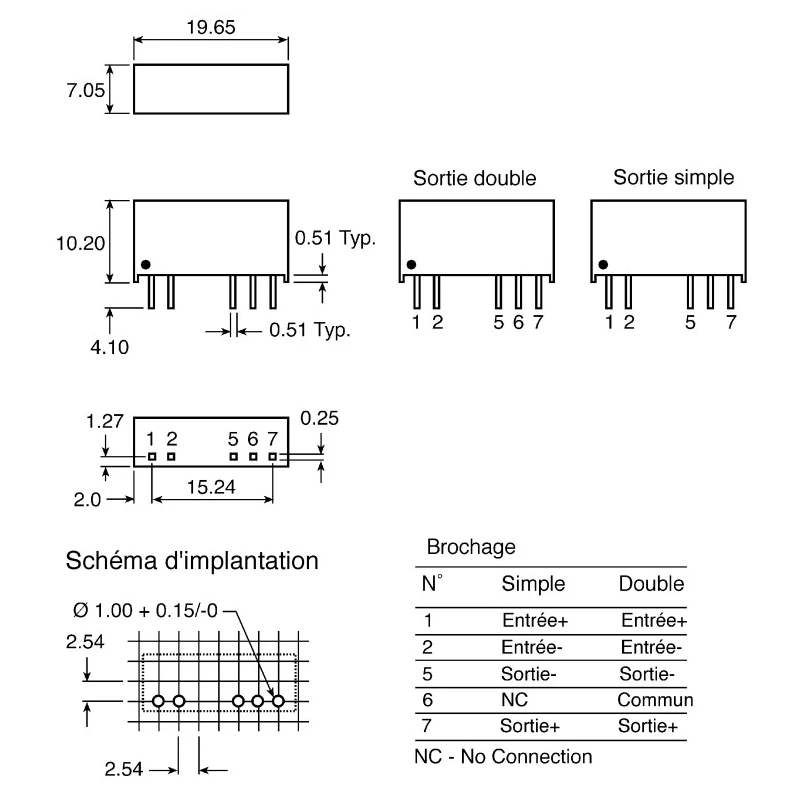

This DC/DC converter is widely applicable in motor drives, power inverters, medical instrumentation, and HVAC equipment such as air conditioners. Its small dimensions (19.65 mm by 7.05 mm by 10.2 mm) enable high-density circuit board layouts in compact devices.

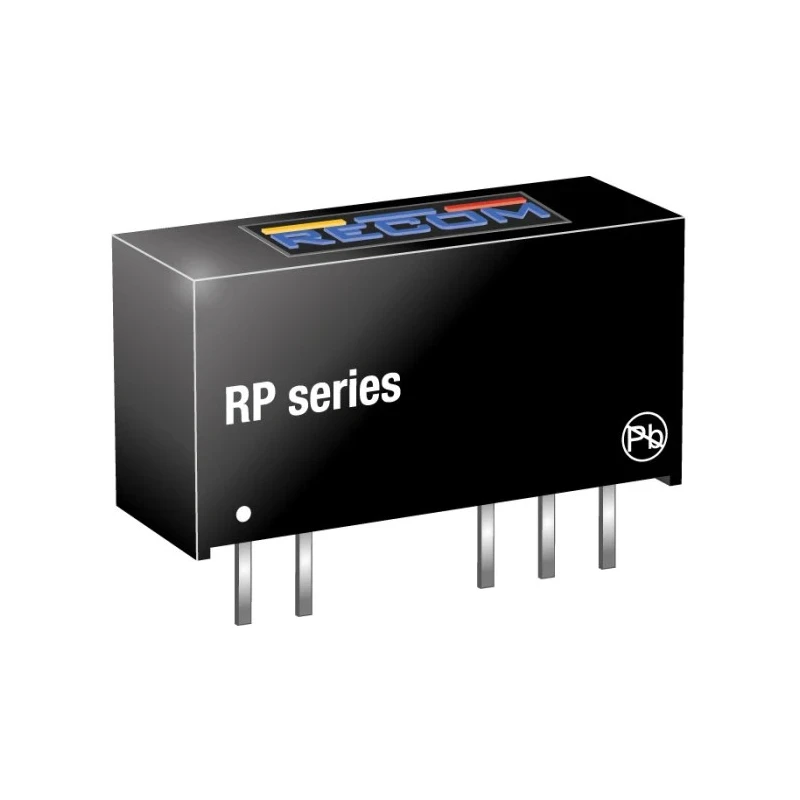

The RP series by Recom is recognized for its reliability, supported by an MTBF rating of 18.4 million hours. The package's through-hole mount type and SIP format provide a secure mechanical and electrical connection.

Compact through-hole SIP package with 7 pins for stable PCB installation. Dual outputs deliver both positive and negative 12 V dc power rails. Wide input voltage tolerance ensuring operation even under input fluctuations.

Designed for industrial environments with wide temperature tolerance. High voltage isolation protects downstream circuitry from electrical spikes. Energy-efficient with minimal heat generation. Reliable operation guaranteed with high MTBF rating.

Suitable for power supply requirements in diverse fields including medical and inverter applications.

The Recom RP-1212D DC/DC Converter is a compact, reliable solution that guarantees stable dual output voltage, efficient power transfer, and robustness required for commercial and industrial electronic systems. It is a preferred choice for engineers designing power supplies where space and reliability are critical.
