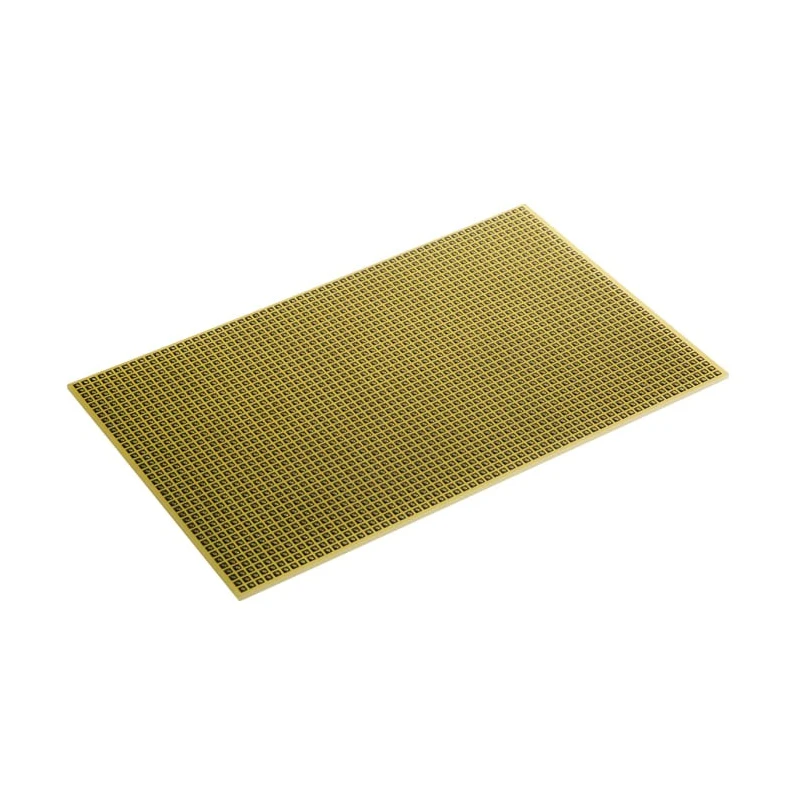

CIF Single-Sided Matrix Board FR4 Epoxy Glass Fabric Laminate 160mm x 100mm 1.6mm Thickness 1mm Holes AGP10

CIF AGP10 single-sided matrix board is constructed using FR4 epoxy glass fabric laminate material, measuring 160mm in length and 100mm in width with a thickness of 1.6mm. It features 1mm diameter holes arranged at a 2.54mm drill pitch, designed to facilitate precise and efficient electronic prototyping and circuit board assembly.

This board includes copper-tin plated square pads sized 2mm by 2mm with a track gap of 0.54mm, enabling secure and reliable solder joints. The single-sided copper plating simplifies prototyping processes, making it suitable for a range of applications from educational projects to professional electronics repair.

Manufactured to comply with RoHS standards, this matrix board guarantees reduced environmental impact and maintains high-quality production standards.

Its durable FR4 material provides excellent mechanical strength and electrical insulation properties, making it a versatile choice for laboratories, small-scale manufacturing, and development projects.

The board thickness is 1.6mm, providing durability for repeated use. Copper thickness is 35μm, offering excellent conductivity. Holes are precisely drilled with a diameter of 1mm for standard component leads. Square pad dimensions of 2mm by 2mm facilitate consistent solder application.

Single-sided copper plating makes it ideal for simpler circuit designs. Compliant with RoHS environmental standards for safe use. Ideal for electronic prototyping, repair, and experimental applications. This matrix board is produced in France, ensuring stringent quality control and reliability for professional and educational use.
