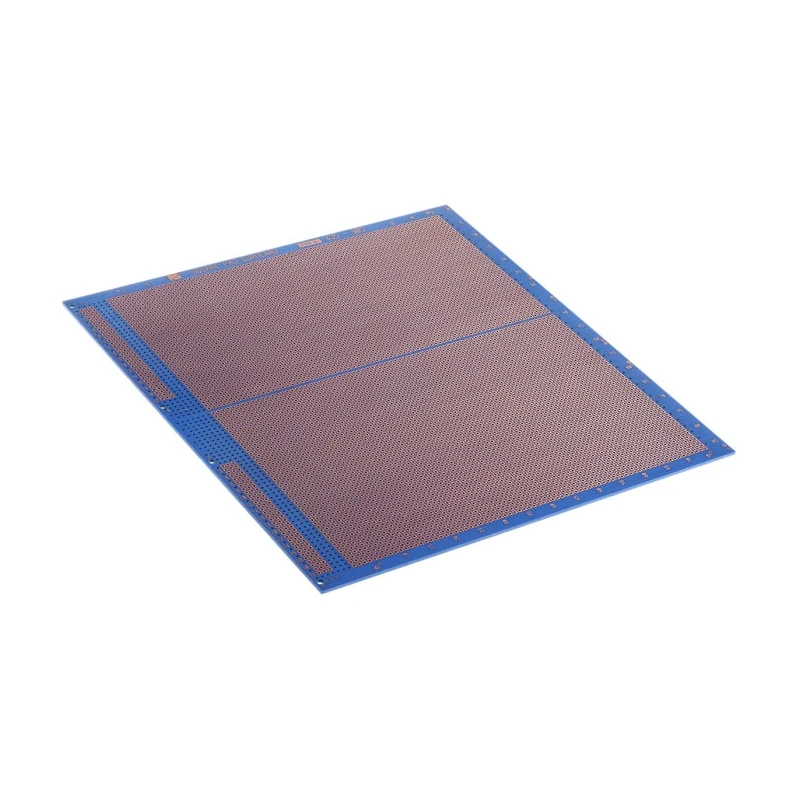

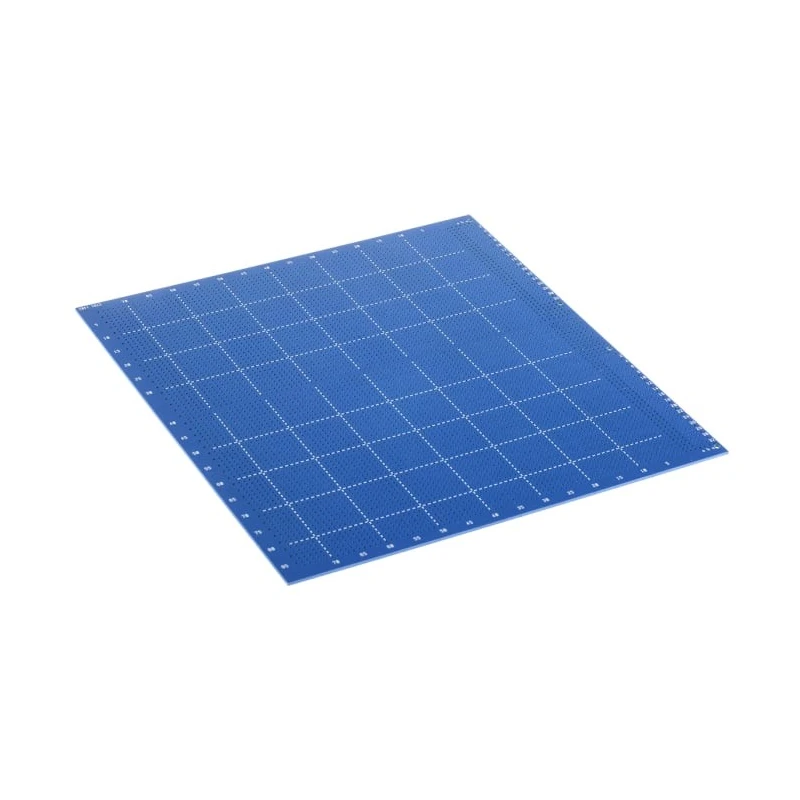

Vero Technologies Matrix Board FR4, 75 x 86 Hole Layout, 1.02 mm Hole Diameter, 233.4 mm x 220 mm, Single Sided 03-27557
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Vero Technologies |
| Length | 233.4mm |
| Model | 03-27557 |
| Width | 220mm |
| Hole Diameter | 1.02mm |
| Board Material | Epoxy Glass |
| Standards/Approvals | DIN 41612, DIN 41494 |
| Number of Sides | 1 |
| Board Thickness | 1.6mm |
| FR Material Grade | FR4 |
| Hole Layout | 75 x 86 |
Key Features
- High-quality matrix board manufactured from epoxy glass FR4 material.
- Single-sided board design suitable for wire-wrapping and prototyping applications.
- Features 75 x 86 square pad hole layout with a precise 1.02 mm hole diameter.
- Board thickness of 1.6 mm ensures structural integrity during assembly.
- Hole pitch of 2.54 mm provides compatibility with standard electronic components.
- Meets DIN 41612 and DIN 41494 standards for reliability in professional environments.
- Recommended for use in electronic prototyping, PCB assembly, and experimental projects.
Product Description
The Vero Technologies 03-27557 Matrix Board is a robust single-sided prototyping board crafted for precision electronics design and assembly. Built from durable epoxy glass material, this FR4 matrix board is specifically engineered for wire-wrapping and custom circuit development, offering strength and reliability in professional and laboratory settings. With its 75 x 86 hole layout and 1.02 mm hole diameter, it accommodates a wide range of standard electronic components, streamlining circuit construction and modification.
Measuring 233.4 mm in length and 220 mm in width, the board delivers ample workspace for complex prototyping and large-scale experimental projects. The 1.6 mm board thickness ensures a rigid platform that maintains form during soldering and assembly operations. Square pad configuration and 2.54 mm pitch enable compatibility with industry-standard connectors and ICs, making the board ideal for rapid prototyping, educational demonstrations, and experimental labs.
The board conforms to DIN 41612 and DIN 41494 quality standards, ensuring performance and reliability expected in advanced electronic environments. Its FR4 grade epoxy glass substrate offers excellent thermal resistance and mechanical stability, essential for maintaining circuit integrity. The matrix board is suited to academic research, industrial electronics prototyping, and product development in manufacturing and R&D facilities.
Recommended for wire-wrapping applications, the board supports flexible design iterations, making it a practical solution for engineers, designers, and educators requiring a dependable prototyping tool. The single-sided, copper-clad construction is optimized for fast circuit assembly, facilitating both manual and automated component insertion.
In summary, the Vero Technologies 03-27557 Matrix Board is an indispensable asset in electronics workshops, laboratories, and industrial prototyping setups where precise, reliable, and standardized PCB prototyping is required. Explore more solutions from Vero Technologies and browse the EnvMart Matrix Board category for further industrial prototyping boards.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model measures 233.4 mm in length and 220 mm in width, providing ample workspace for prototyping applications.
It features a 75 x 86 square pad hole layout with a precise 1.02 mm hole diameter, suitable for various electronic components.
The board is constructed from epoxy glass, specifically FR4 material, which offers good thermal resistance and mechanical stability.
The board thickness is 1.6 mm, ensuring a rigid platform during assembly and soldering operations.
It meets DIN 41612 and DIN 41494 standards, ensuring reliability in professional electronic environments.
This model is a single-sided board, optimized for wire-wrapping and prototyping applications.
The hole pitch is 2.54 mm, allowing compatibility with standard electronic components and connectors.
It is recommended for electronic prototyping, PCB assembly, and experimental projects, making it versatile for various uses.
The matrix board is manufactured in the United Kingdom.
The model number is 03-27557, which can be used for reference and ordering purposes.
The single-sided design facilitates fast circuit assembly and is particularly suited for wire-wrapping applications.
The board's configuration allows for easy modifications and adjustments, making it practical for engineers and designers during prototyping.
