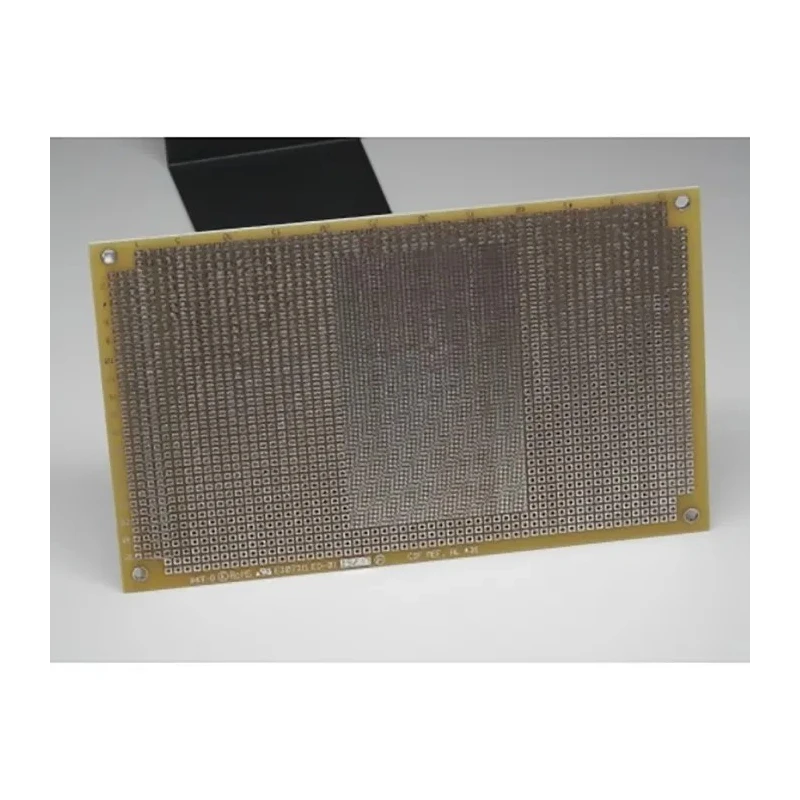

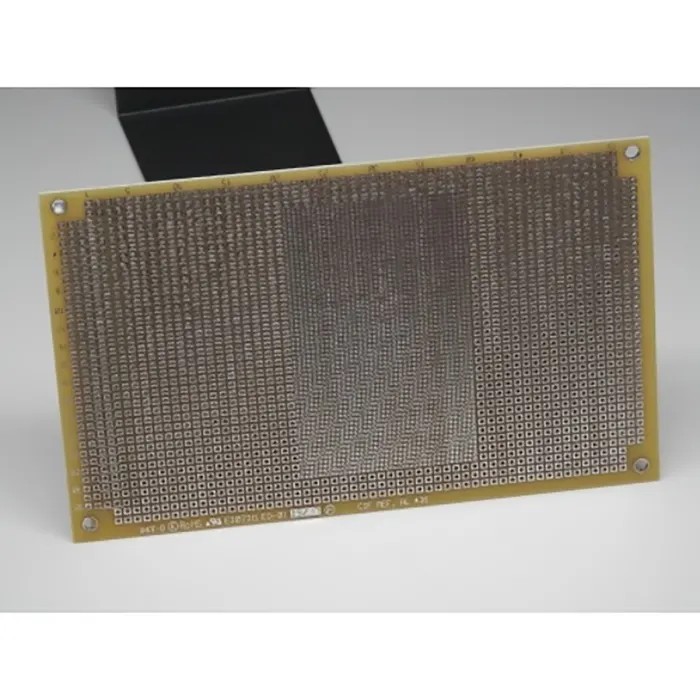

CIF 2 Matrix Board FR4 Epoxy Copper Thickness 35μm Hole Layout 40 x 60 0.35 mm Holes AL436

CIF AL436 2 Matrix Board FR4 epoxy board is a high-quality prototyping and test board designed for electronic and electrical components applications. The board is manufactured using robust FR4 epoxy material, renowned for its durability and excellent heat resistance, making it ideal for circuit prototyping and experimental electronic designs.

This matrix board features a double-sided construction allowing copper layering on both sides with a precise thickness of 35μm ensuring efficient electrical connectivity. The board thickness of 1.5 mm provides mechanical stability while maintaining flexibility for various electronic assembly tasks.

The hole layout consists of 40 rows by 60 columns of through holes, each with a diameter of 0.35 mm. This layout supports precise and reliable soldering and mounting of components. The pad area is typically 1 mm square with a 1.27 mm pitch, facilitating standard component placement. Its overall size measures 160 mm in length by 4 mm in width, suitable for compact prototyping requirements.

Manufactured in France, the CIF AL436 meets DIN 41612C standards, ensuring international compliance for electrical prototyping boards. It is used extensively in laboratory, manufacturing, and industrial electronic assembly lines for developing and testing surface mount device components and custom circuits.

Constructed with FR4 epoxy board material for durability and high heat resistance. Features copper thickness of 35μm for effective conductivity. Board thickness of 1.5 mm with dimensions 160 mm length and 4 mm width. Complies with DIN 41612C standards providing reliable industry quality.

Double sided board with holes arranged in a 40 x 60 matrix layout. Designed for use as test boards for SMD electronic components and prototyping circuits. Originates from France ensuring European manufacturing quality.

This Matrix Board is ideal for electronics prototyping laboratories, educational institutions, and manufacturing facilities requiring high precision and quality in PCB prototype development. Browse more electronics components and prototyping supplies on EnvMart for advanced industrial and laboratory needs.
