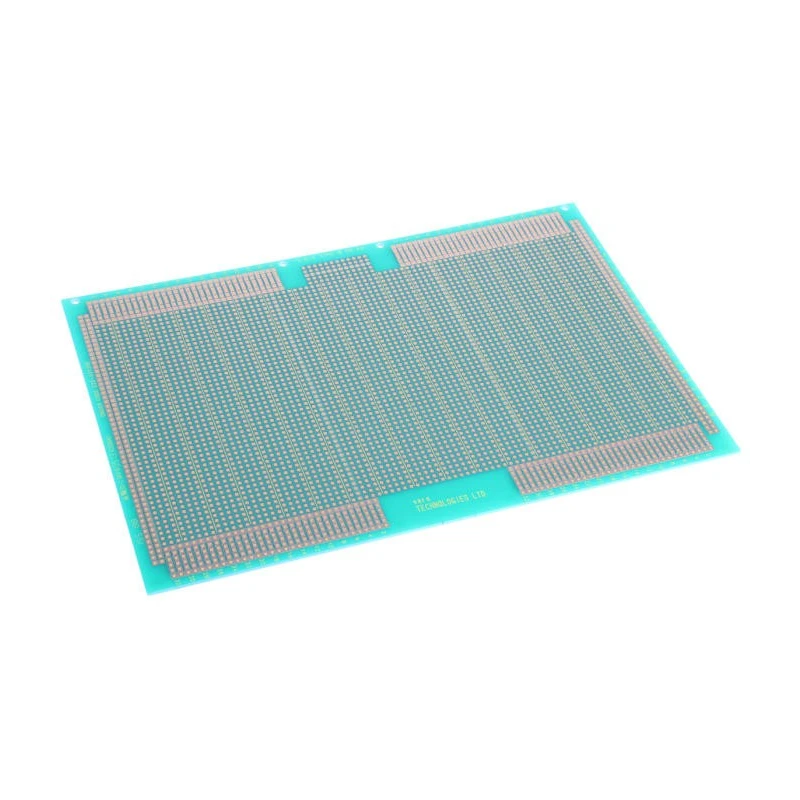

RS PRO Matrix Board 2 Sides, FR4, Square Pad, 1.02 mm Holes, 2.54 mm Pitch, 233.4 x 160 mm, 110-2501
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | RS PRO |
| Length | 233.4mm |
| Model | 110-2501 |
| Width | 160mm |
| Hole Diameter | 1.02mm |
| Board Material | Epoxy Glass Fabric Laminate |
| Standards/Approvals | DIN 41494, DIN 41612 |
| Number of Sides | 2 |
| FR Material Grade | FR4 |
| Hole Layout | Square Pad |
| Hole Pitch | 2.54mm |
| Eurocards | Lined on each side with through-hole |
Key Features
- Matrix board suitable for prototyping and quick circuit development.
- Features 2 sides with square pad layout for versatile mounting options.
- Made from durable FR4 epoxy glass fabric laminate for reliable performance.
- Holes with a diameter of 1.02 mm and a 2.54 mm pitch enable easy component placement.
- Large board size of 233.4 mm by 160 mm accommodates complex circuit designs.
- Complies with DIN 41494, DIN 41612 standards for Eurocard and connector compatibility.
- Quadratic soldering islands reduce risk of pad lifting during soldering operations.
- Earth screen on the component side for maximum shielding.
Product Description
The RS PRO 110-2501 is a high-quality matrix board engineered for electronic prototyping and circuit development. Featuring 2 working sides and constructed from FR4 epoxy glass fabric laminate, this board is robust and well-suited for professional use. The board is designed with a square pad layout, providing flexibility for various mounting needs in electronics assembly.
The board measures 233.4 mm in length and 160 mm in width, providing an ample area for complex circuit layouts. Each hole on the board is precisely drilled with a diameter of 1.02 mm and a 2.54 mm pitch, ensuring compatibility with a wide array of through-hole components and making it straightforward to build and test custom circuits.
Matrix board suitable for prototyping and quick circuit development. Features 2 sides with square pad layout for versatile mounting options. Made from durable FR4 epoxy glass fabric laminate for reliable performance. Holes with a diameter of 1.02 mm and a 2.54 mm pitch enable easy component placement.
Large board size of 233.4 mm by 160 mm accommodates complex circuit designs. Complies with DIN 41494, DIN 41612 standards for Eurocard and connector compatibility. Quadratic soldering islands reduce risk of pad lifting during soldering operations.
Earth screen on the component side for maximum shielding. Supports plug connectors DIN 41612 types B and C, up to 96 contacts on both sides. This Matrix Board is ideal for industrial, laboratory, electronic development, and prototyping environments, where reliable and reusable hardware is essential.
The use of high-grade FR4 ensures electrical insulation and mechanical stability, while the Eurocard compatibility allows for easy incorporation into standardized systems. The earth screen offers additional shielding against electromagnetic interference, supporting sensitive designs.
With RS PRO’s reputation for dependable products, this board serves engineers, laboratory personnel, academia, and electronics manufacturers seeking a robust and standardized circuit foundation. Explore more RS PRO prototyping and electronic components on EnvMart to build, expand, and innovate your electronics projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This matrix board measures 233.4 mm in length and 160 mm in width.
The holes on this board have a diameter of 1.02 mm and a pitch of 2.54 mm.
This model features two working sides, allowing for versatile mounting options.
It is constructed from FR4 epoxy glass fabric laminate, which provides reliable performance.
It complies with DIN 41494 and DIN 41612 standards for Eurocard and connector compatibility.
The board features a square pad layout for easy component placement.
The earth screen provides maximum shielding against electromagnetic interference, supporting sensitive designs.
Yes, it supports plug connectors of DIN 41612 types B and C, with up to 96 contacts on both sides.
This board is ideal for industrial, laboratory, electronic development, and prototyping environments.
The board features quadratic soldering islands that help reduce the risk of pad lifting during soldering operations.
The large size of 233.4 mm by 160 mm accommodates complex circuit designs, providing ample area for prototyping.
The country of origin for this matrix board is the United Kingdom.
