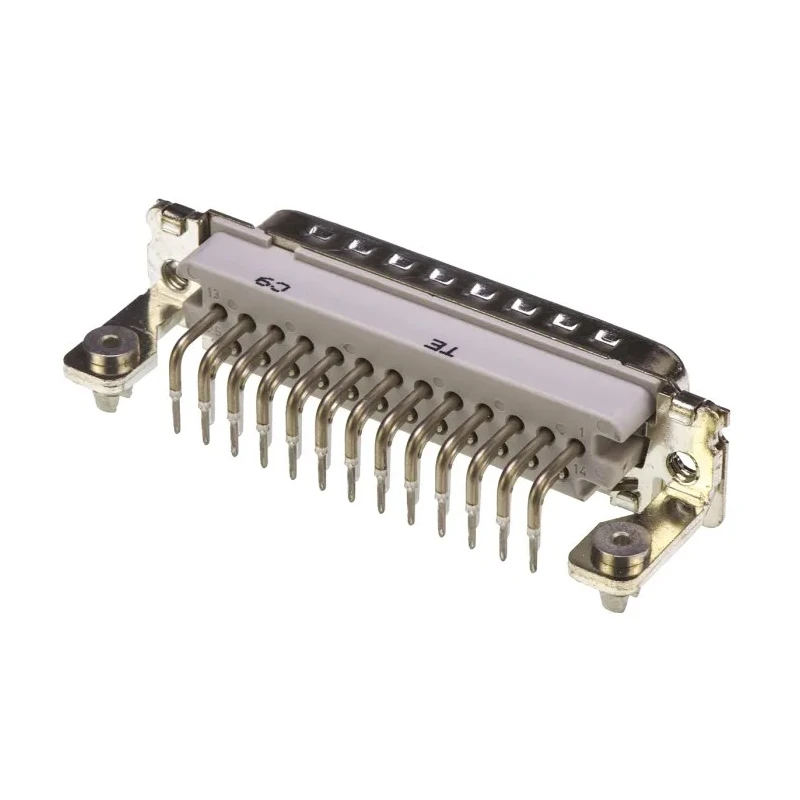

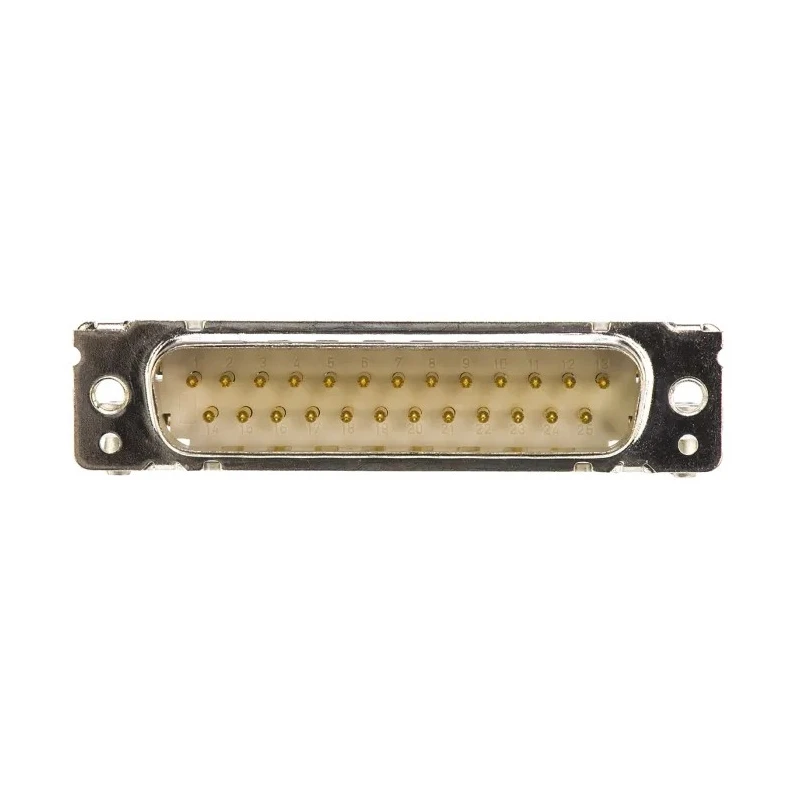

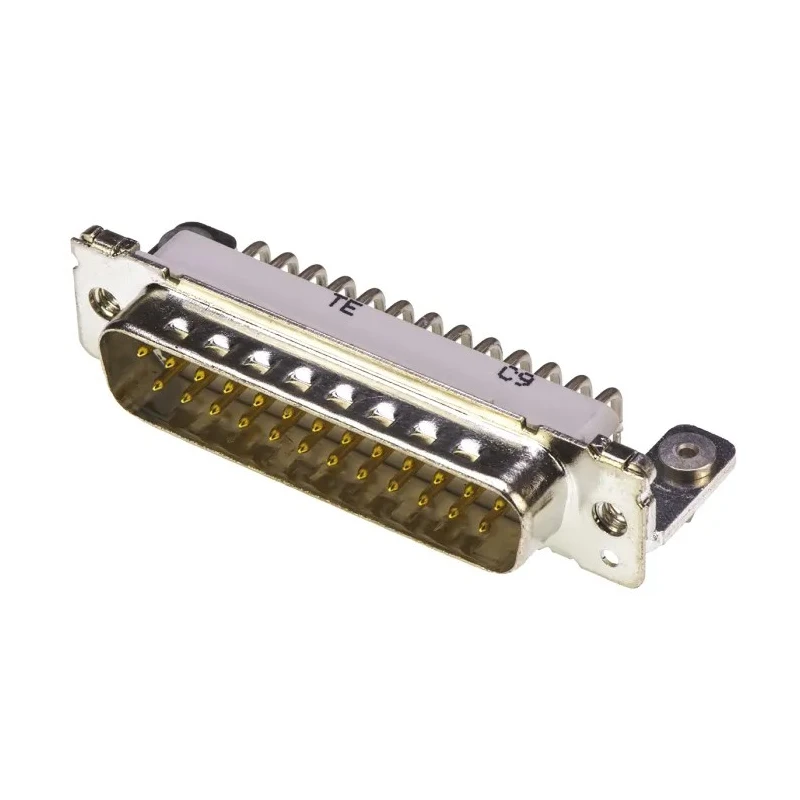

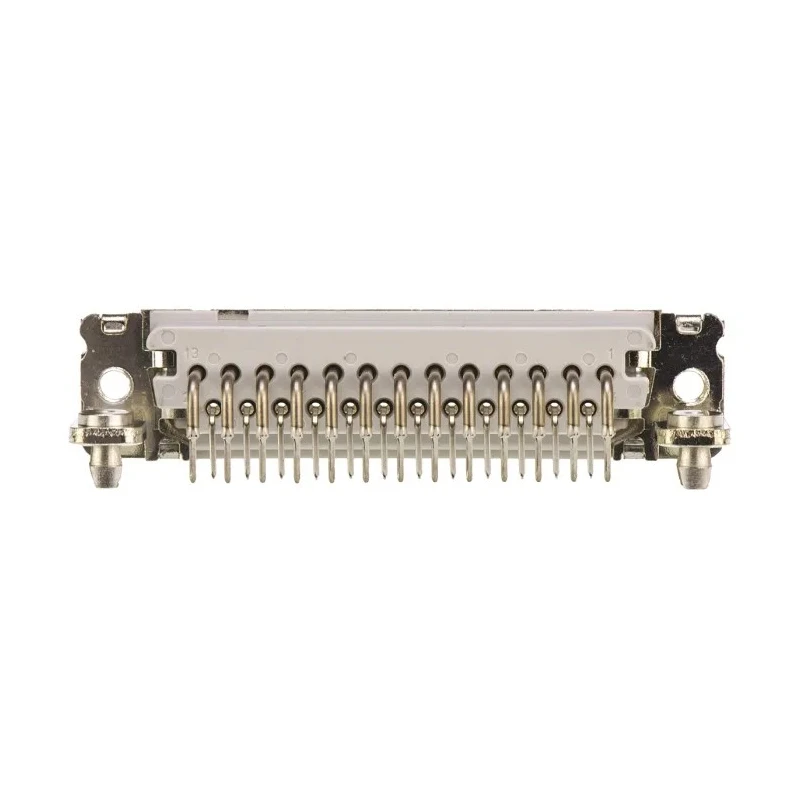

TE Connectivity 25 Way Right Angle 2.76 mm Pitch Through Hole D-Sub Connector with 4 to 40 UNC Threaded Insert 8-1393480-7

TE Connectivity 8-1393480-7 is a 25 Way Right Angle Through Hole D-Sub Connector featuring a 2.76 mm pitch, designed for high-reliability electronic and industrial applications. This connector uses a robust fibreglass reinforced polybutylene terephthalate housing and copper alloy contacts with gold over nickel plating to ensure excellent conductivity and corrosion resistance.

Rated for voltages up to 1kV and currents of 2.2A, it operates effectively between -55°C and 125°C, supporting demanding environmental conditions. The connector has a solder termination type, providing solid and durable electrical connections on PCBs.

This product includes 4 to 40 UNC threaded insert mounting hardware for secure attachment and features a metal cover with earthing capability to ensure safety and shielding against interference. Constructed to comply with DIN 41494 standard, the connector footprint measures 15.24 mm width with a 3TE module size.

The TE Connectivity 8-1393480-7 connector is plug compatible with connector systems adhering to MIL-C-24308 and DIN 41652 standards, making it suitable for a variety of applications including electronic devices, industrial machinery, control panels, and communication equipment.

With its compact right angle design and high contact count, it enhances assembly density and efficiency in compact electronic assemblies requiring reliable signal integrity. It features 25 contacts with male connector gender.

The housing is made of fibreglass reinforced polybutylene terephthalate for durability. Designed for operating temperatures from -55°C to 125°C. Contact material is copper alloy with gold over nickel plating for reliable conductivity.

It supports a voltage rating of 1kV and current rating of 2.2A. Termination type is solder, suitable for robust soldered connections. Constructed according to DIN 41494 standards with metal cover and earthing features. Compatible with mating connectors to MIL-C-24308 and DIN 41652 standards.

Ideal for electronic and industrial applications requiring secure and compact connector solutions. Explore a wide range of electronic connectors including D-Sub Connectors at EnvMart for your industrial and manufacturing needs.
