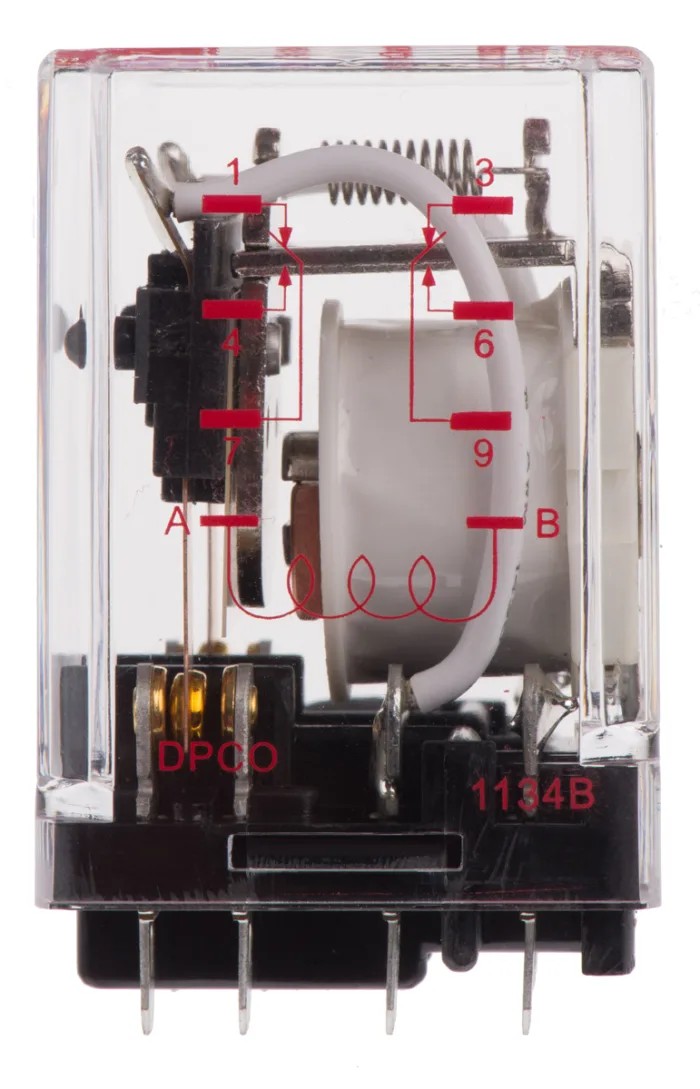

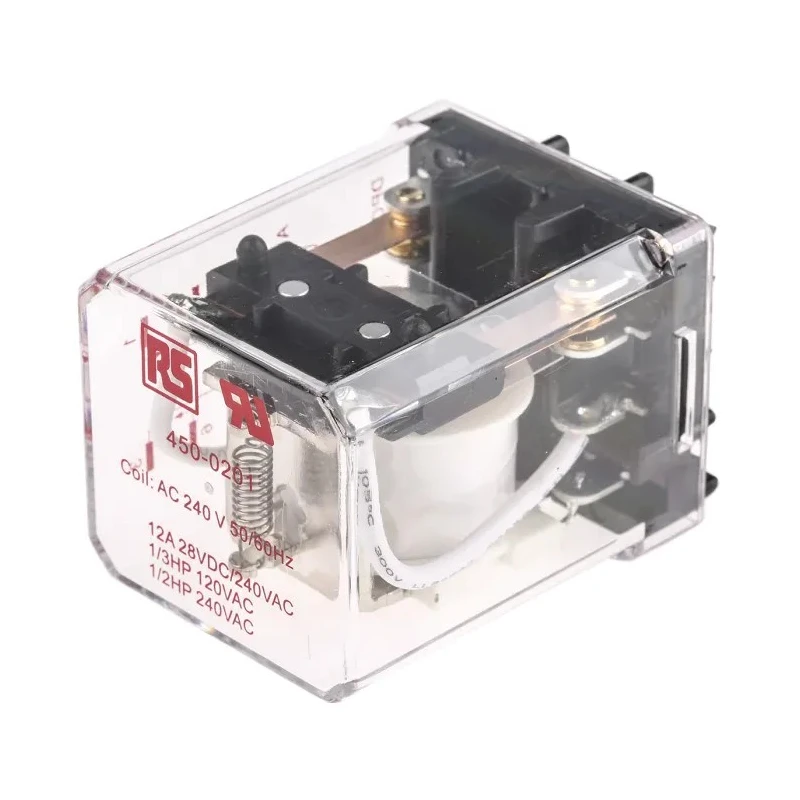

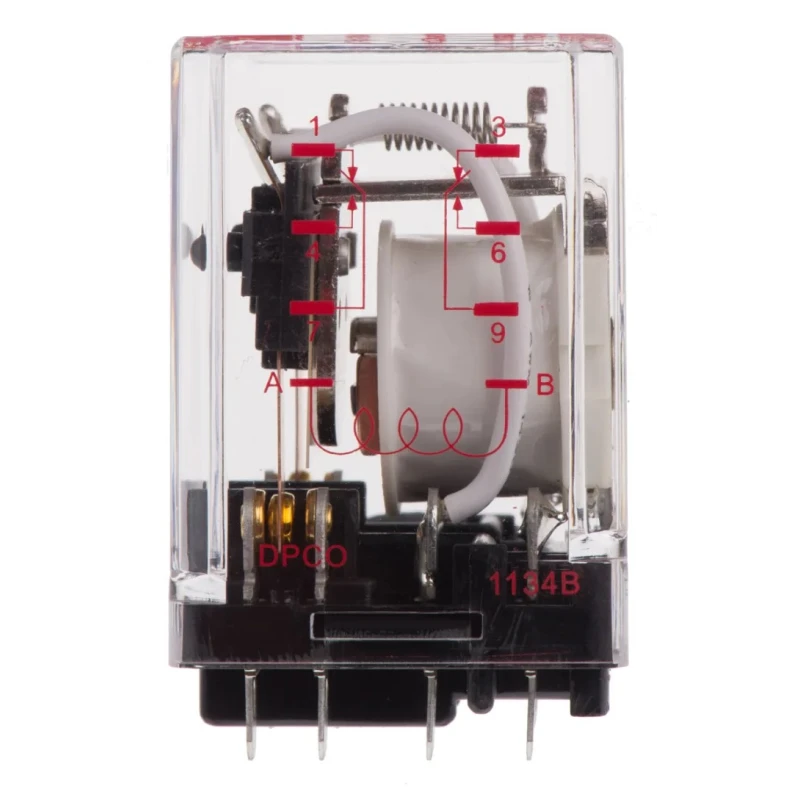

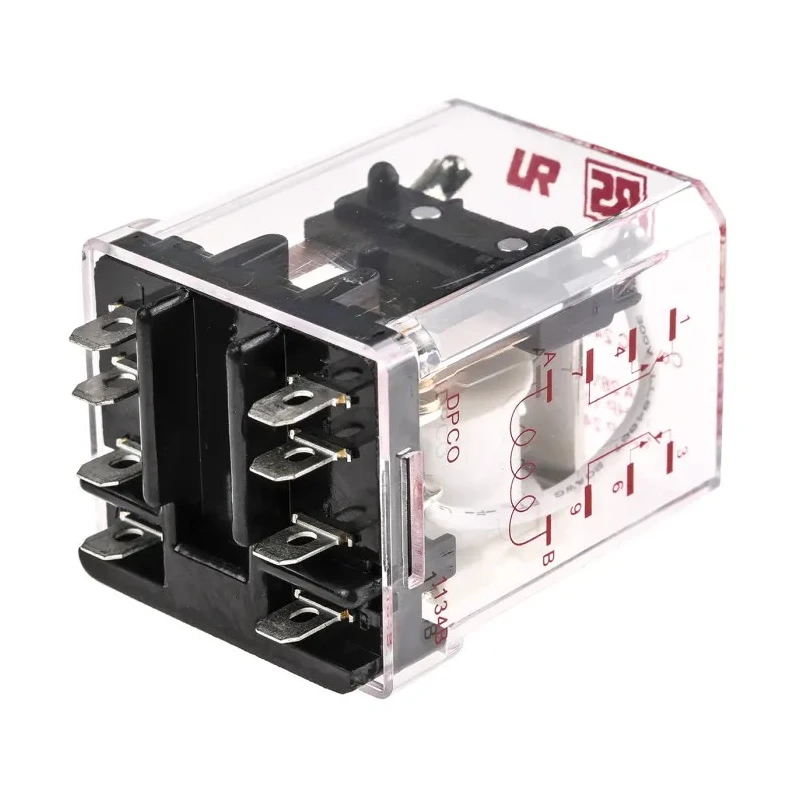

RS PRO PCB Power Relay 240V AC Coil 12A Switching Current DPDT 450-0201
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Height | 47.5mm |
| Length | 38mm |
| Model | 450-0201 |
| Width | 35mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Maximum Operating Temperature | 50°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -30°C |
| Switching Current | 12A |
| Terminal type | Solder |
| Contact Resistance | 50mΩ max |
| Standards/Approvals | UL, EN, CE |
| Mechanical Life | 10 million operations |
| Coil Resistance | 9.1kΩ |
| Coil Voltage | 240V ac |
| Switching DC Voltage | 28V dc |
| Switching AC Voltage | 240V |
| Coil Power | 2W |
| Electrical Life | 100000 operations |
| RS PRO Non-Latching Relay, 230V ac Coil, 12A Switching Current, 4PDTBrand | RS PRO |
Key Features
- This PCB mount power relay has a coil resistance of 9.1 kilo-ohms and coil power rating of 2 watts.
- It supports switching AC voltage up to 240V and DC voltage up to 28V.
- Designed for operation within -30°C to 50°C temperature range.
- Constructed with silver alloy contacts with maximum contact resistance of 50 milliohms.
- This relay has a mechanical life expectancy of 10 million operations and electrical life of 100,000 operations.
- Terminal type is solder, facilitating secure PCB mounting.
- Compact dimensions of 38 mm length, 35 mm width, and 47.5 mm height.
- Conforms to UL, EN, and CE standards ensuring high quality and safety compliance.
Product Description
RS PRO 450-0201 PCB Power Relay offers reliable and efficient switching performance with its 240V AC coil and 12A switching current capacity. This DPDT configured relay is designed for PCB mounting with solder terminals, suitable for various industrial, automation, and electrical applications.
The relay operates optimally within a temperature range from -30°C to 50°C, making it suitable for demanding environments. Its silver alloy contacts ensure low contact resistance of 50 milliohms max, guaranteeing minimal power loss during switching operations.
The coil features a resistance of 9.1 kilo-ohms and consumes 2 watts of power, making it efficient for prolonged use. With a mechanical lifespan rated at 10 million operations and electrical endurance up to 100,000 operations, this relay is built for durability and longevity.
Its compact dimensions (38mm length, 35mm width, and 47.5mm height) facilitate easy integration into compact circuits and devices. The product complies with UL, EN, and CE standards providing assurance of industry-grade quality and safety.
Manufactured in Taiwan, Province Of China, this relay is ideal for industrial automation systems, electrical controls, HVAC, manufacturing equipment, and laboratory instruments needing dependable power switching solutions.
This PCB mount power relay has a coil resistance of 9.1 kilo-ohms and coil power rating of 2 watts. It supports switching AC voltage up to 240V and DC voltage up to 28V. Designed for operation within -30°C to 50°C temperature range.
Constructed with silver alloy contacts with maximum contact resistance of 50 milliohms. This relay has a mechanical life expectancy of 10 million operations and electrical life of 100,000 operations. Terminal type is solder, facilitating secure PCB mounting.
Compact dimensions of 38 mm length, 35 mm width, and 47.5 mm height. Conforms to UL, EN, and CE standards ensuring high quality and safety compliance. Manufactured in Taiwan, Province Of China, ensuring reliable build quality.
Explore similar RS PRO Power Relays and components in the Electronics & Electricals category on EnvMart for comprehensive industrial and automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current capacity of 12A.
The relay has compact dimensions of 38 mm in length, 35 mm in width, and 47.5 mm in height.
It features solder terminals, which facilitate secure PCB mounting.
The coil voltage rating is 240V AC.
The coil resistance is 9.1 kilo-ohms.
This relay is designed to operate within a temperature range of -30°C to 50°C.
It has a DPDT (Double Pole Double Throw) contact configuration.
The maximum contact resistance is 50 milliohms.
The mechanical life expectancy of this relay is rated at 10 million operations.
It conforms to UL, EN, and CE standards, ensuring compliance with safety and quality regulations.
The electrical life of this relay is rated at 100,000 operations.
The contacts are constructed from silver alloy, which helps ensure low contact resistance.
