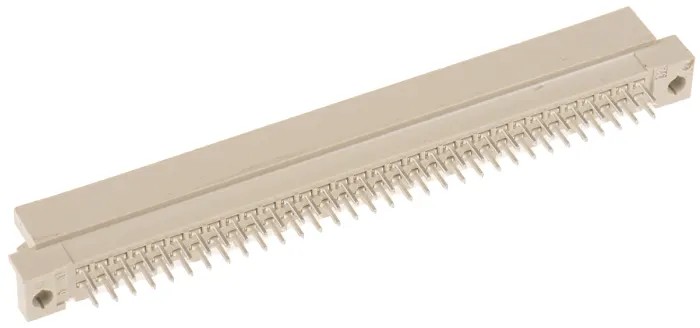

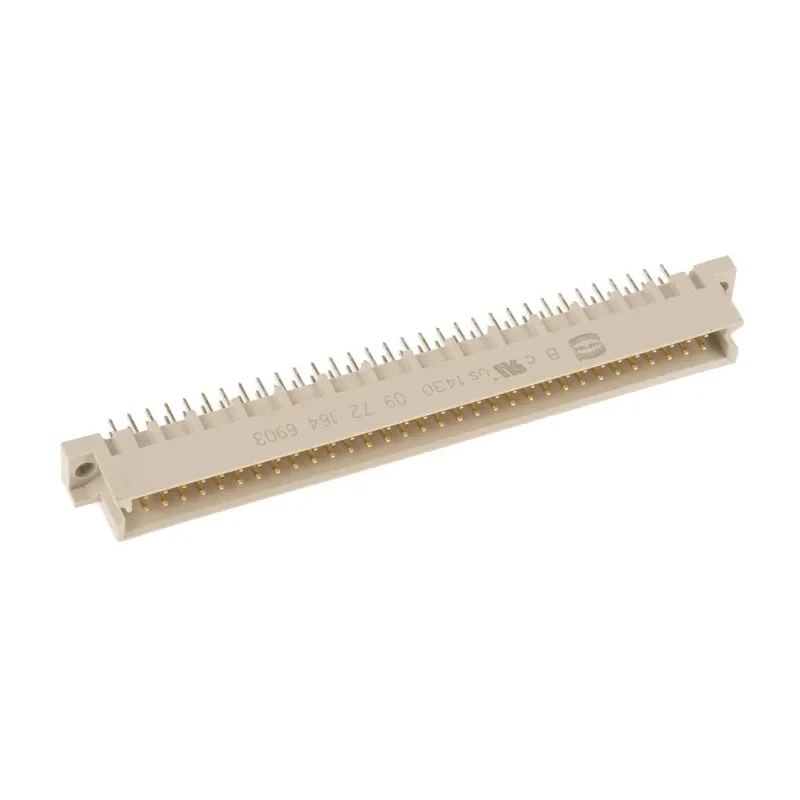

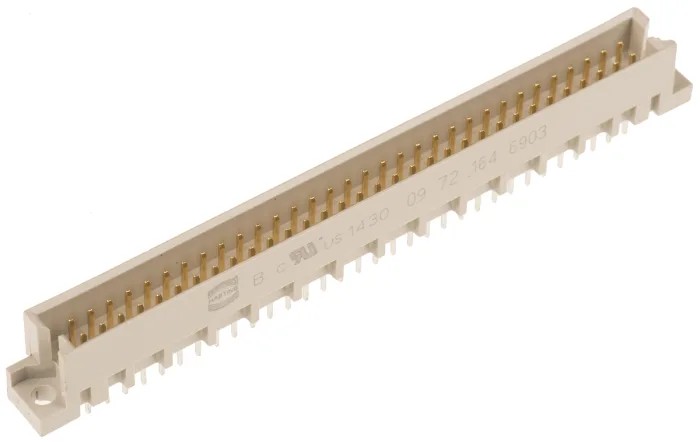

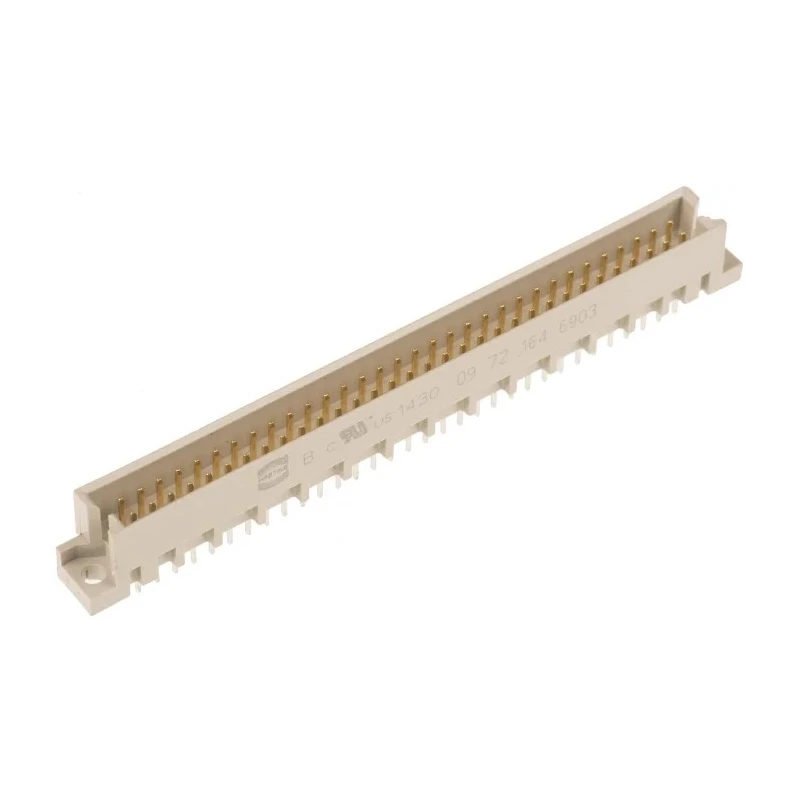

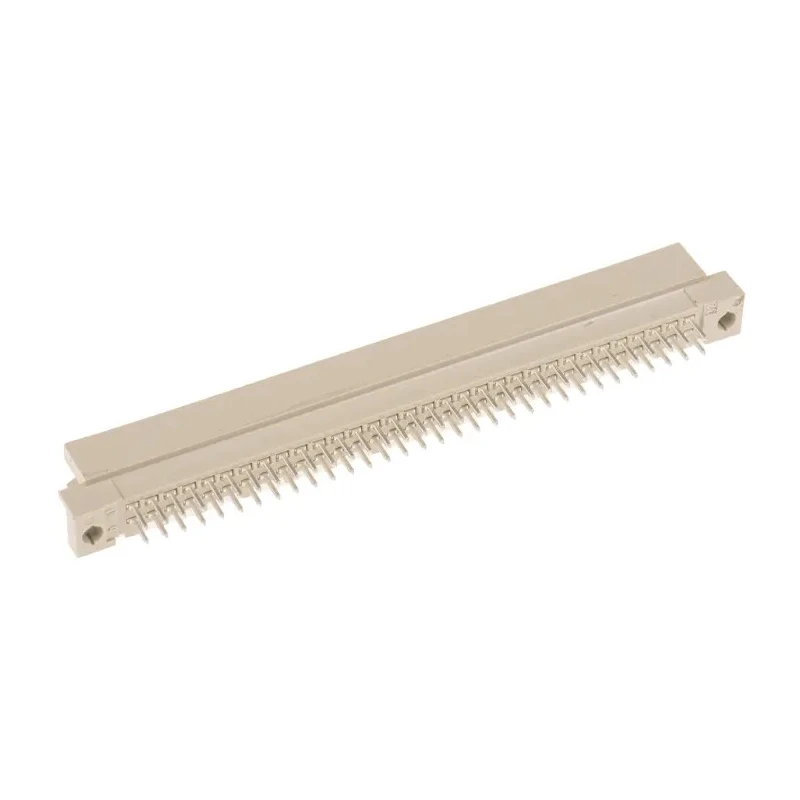

HARTING DIN 41612 Connector 64 Way 2.54 mm Pitch, Type Through Hole, Type C/2, Solder Class C2, 2 Row Male 09721646903
Specifications
| Country of Origin | Switzerland |
|---|---|
| Brand | HARTING |
| Orientation | Straight |
| Current | 2A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | DIN 41612 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | C/2 |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 64 |
| Contact Gender | Male |
| Connector Gender | Male |
| Maximum Contact Resistance | 20mΩ |
| Row Loading | A/B |
Key Features
- Features 64 gold over nickel plated contacts for excellent conductivity and corrosion resistance.
- Operates within a temperature range of -55°C to 125°C, ensuring high durability.
- Connector type is male with a straight orientation for standard PCB mounting.
- Utilizes solder termination with through-hole mounting for secure installation.
- Constructed with polybutylene terephthalate housing and copper alloy contacts for robustness.
- Supports a current rating of 2A suitable for various electronic applications.
- Designed in compliance with DIN 41612 standard for Eurocard rack systems.
- Class C2 solder class ensures reliable connection quality.
Product Description
HARTING 09721646903 DIN 41612 Connector is a 64 way, 2.54 mm pitch male connector configured with two rows, designed for through-hole PCB mounting using solder termination. This Class C2 connector features a straight orientation and is rated for 2A current, making it ideal for industrial electronic applications including backplane and rack interconnections.
The connector benefits from a robust configuration comprising gold over nickel plating on copper alloy contacts housed in durable polybutylene terephthalate material. It supports operating temperatures from -55°C up to 125°C, ensuring reliable performance in demanding environments.
Featuring the Type C/2 sub-type and row loading A/B, it complies with DIN 41612 standards widely used in 19-inch Eurocard racking systems. The connector is suitable for use in industrial, laboratory, manufacturing, and electronic production settings where dependable signal and power connections are critical.
Its two-row male straight configuration with solder termination facilitates integration onto printed circuit boards and equipment backplanes, enhancing assembly efficiency and system reliability.
64 contacts with gold over nickel plating ensure low contact resistance and enhanced durability. Through-hole mounting provides mechanical stability for PCB applications. Class C2 solder class guarantees dependable solder joints for long-term service.
Polybutylene terephthalate housing offers electrical insulation and mechanical resilience. Rated for a continuous operating temperature range of -55°C to 125°C for diverse environments. Copper alloy contact material offers excellent conductivity and strength.
Applicable for electronic component interconnections in industrial and commercial equipment.
This connector is manufactured in Switzerland and meets the stringent quality expectations associated with HARTING products. It is an essential component in rack and backplane assemblies where secure and precise electrical connections are required.
Explore EnvMart's full range of DIN 41612 Connectors for compatible and accessory components designed to complement this high-performance product.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of 2A, making it suitable for various electronic applications.
The connector operates within a temperature range of -55°C to 125°C, ensuring reliable performance in demanding environments.
It utilizes through-hole mounting with solder termination for secure installation on printed circuit boards.
This model features 64 contacts, which are gold over nickel plated for enhanced conductivity and corrosion resistance.
The housing is made of polybutylene terephthalate, and the contacts are constructed from copper alloy.
It belongs to the Type C/2 sub-type, designed for specific applications in DIN 41612 standards.
The connector has a straight orientation, suitable for standard PCB mounting.
The maximum contact resistance is 20mΩ, ensuring low contact resistance for reliable connections.
It is manufactured in Switzerland, adhering to high-quality standards.
The pitch of this model is 2.54 mm, which is standard for many electronic applications.
This connector is applicable for electronic component interconnections in industrial and commercial equipment, including backplane and rack interconnections.
This model is designed with a Class C2 solder class, which ensures reliable connection quality for long-term service.
