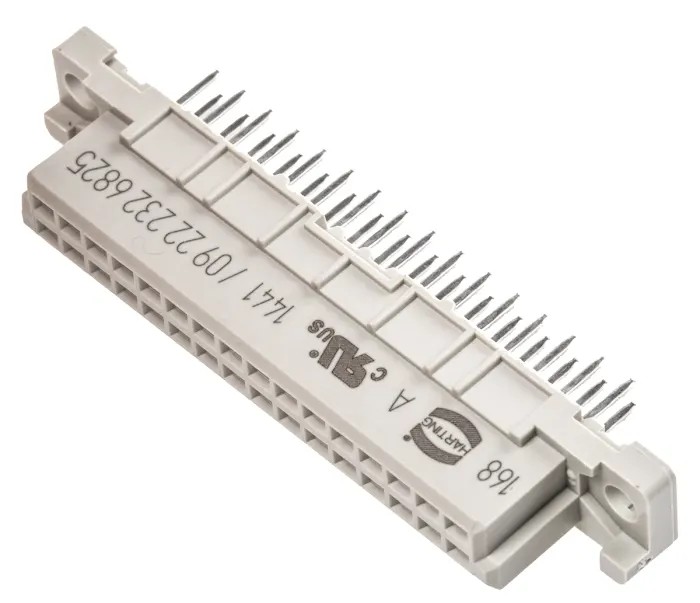

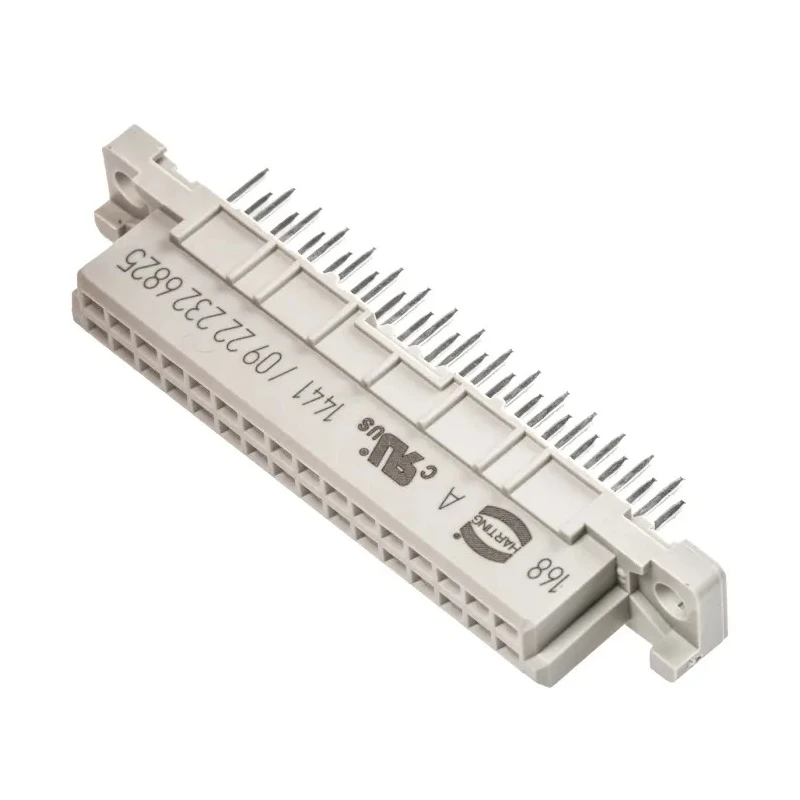

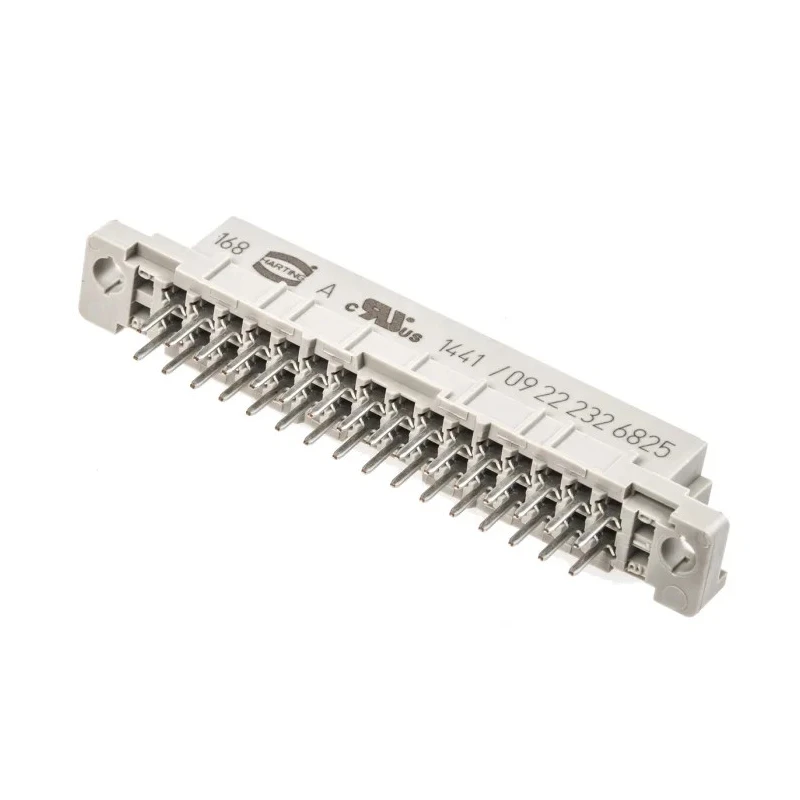

HARTING DIN 41612 32 Way 2.54 mm Pitch Type Through Hole C/2 Solder Class C2 2 Row Female Straight 09222326825

HARTING 09222326825 DIN 41612 Connector is a 32 Way, 2.54 mm pitch, Type Through Hole electronic component engineered for robust PCB connectivity in industrial, laboratory, and manufacturing applications.

This female connector with 2 rows is designed to handle currents up to 2A per contact, featuring gold over nickel plated copper alloy contacts for superior conductivity and corrosion resistance.

The termination type is solder, suited for through-hole mounting, providing durable mechanical and electrical connection.

The durable polybutylene terephthalate housing material offers strong mechanical stability and resistance against environmental stress. It operates reliably in harsh conditions from -55°C to 125°C.

This connector class C2 design supports efficient signal transmission with a maximum contact resistance of 20 milliohms, making it ideal for backplane and rack interconnection systems adhering to DIN 41612 standards.

Applications include industrial automation systems, communication racks, and instrumentation panels requiring reliable signal or data interfacing with minimal maintenance. This connector features 32 contacts capable of carrying up to 2A per contact.

The pitch between contacts is 2.54 mm, arranged in two rows for compact integration. It has a female connector gender with gold over nickel contact plating to ensure durability and reliable connections. The termination method is solder, compatible with through-hole mounting technology.

The housing is made from polybutylene terephthalate, providing excellent resistance and durability. The connector operates efficiently within a temperature range from -55°C up to 125°C. Its maximum contact resistance is 20mΩ, ensuring minimal electrical loss.

The connector is designed for A/B row loading and complies with Class C2 soldering standards. Manufactured in Germany, this connector guarantees high quality and precision.

As a trusted product from HARTING, this DIN 41612 Connector combines durability, precision, and compliance with industry standards for superior performance in various electronic signal applications.
