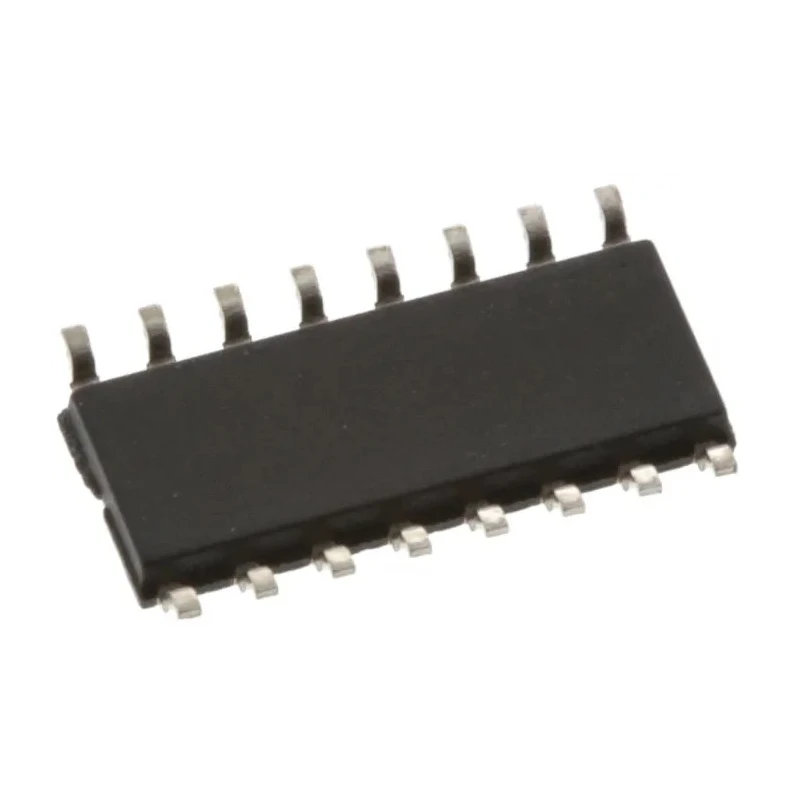

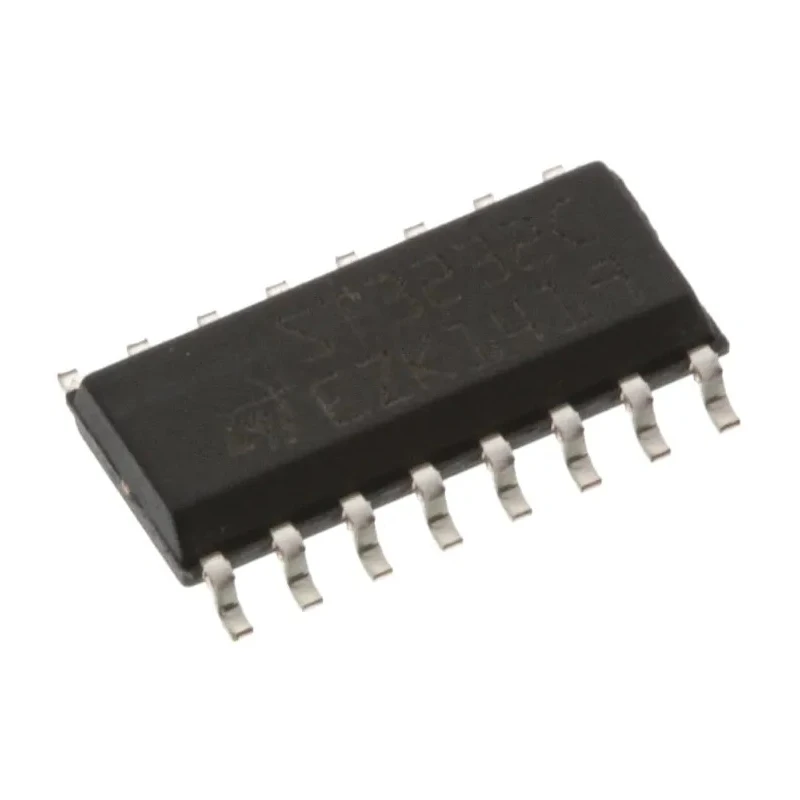

STMicroelectronics 2-Channel CMOS/TTL Line Transceiver, Differential Output, 16-Pin SOIC Package ST3232CDR
Specifications
| Country of Origin | China |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.75mm |
| Length | 10mm |
| Model | ST3232CDR |
| Width | 4mm |
| Mount Type | Surface |
| Output type | Differential |
| Series | ST3232C |
| Input Type | Single Ended |
| Maximum Operating Temperature | 70°C |
| Package Type | SOIC |
| Minimum Operating Temperature | 0°C |
| IC Type | Line Transceiver IC |
| Number Of Channels | 2 |
| Pin Count | 16 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | CMOS/TTL |
| Logic Function | Line Transceiver |
| Minimum Supply Voltage | 3V |
| Maximum High Level Output Current | -1mA |
| Maximum Propagation Delay Time @ CL | 200ns |
| Supply Current | 2mA |
| Maximum Low Level Output Current | 1.6mA |
Key Features
- Operates within a supply voltage range of 3V to 5.5V.
- Features 2 independent channels supporting single-ended input to differential output.
- Employs CMOS/TTL logic family enhancing compatibility with various systems.
- Designed for surface mount applications with a compact 16-pin SOIC package.
- Maximum propagation delay time is 200ns ensuring rapid data transmission.
- Operates efficiently with a supply current of 2mA at room temperature.
- Functions reliably within an operating temperature range from 0°C to 70°C.
- Compact dimensions of 10mm length, 4mm width, and 1.75mm height.
Product Description
The STMicroelectronics ST3232CDR is a 2-channel line transceiver IC designed for differential signaling in data communication systems. Featuring CMOS/TTL logic compatibility and a 16-pin SOIC surface mount package, this device supports single-ended inputs and differential outputs, ensuring robust signal integrity in industrial and communication applications.
Operating from 3V minimum supply voltage up to 5.5V maximum, the ST3232CDR runs with a low quiescent supply current of approximately 2mA. The device's maximum propagation delay of 200ns ensures minimal latency in signal transmission. Its operational temperature range of 0°C to 70°C suits a wide range of environmental conditions found in industrial, manufacturing, and laboratory electronic systems.
With a compact footprint of 10mm length, 4mm width, and 1.75mm height, this line transceiver is ideal for designs where PCB space is at a premium. It does not conform to automotive standards but provides reliable performance for general-purpose interface IC applications.
Operates at 3V to 5.5V supply voltage. Two independent line channels. Single-ended input and differential output configuration. Surface mount 16-pin SOIC package. Maximum propagation delay of 200ns at capacitive load. Low supply current of 2mA.
Operating temperature range from 0°C to 70°C. Compact dimensions: 10mm x 4mm x 1.75mm.
This line transceiver IC is suited for industrial control, communication interfaces, and general line driving applications in electronics manufacturing. Its small form factor and dual-channel capability facilitate integration into complex circuitry, improving system efficiency.
Explore more semiconductor and line interface IC products from STMicroelectronics in the Electronics & Electricals category at EnvMart.
Explore more products in our Line Interface ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates within a supply voltage range of 3V to 5.5V.
The maximum propagation delay time is 200ns, ensuring rapid data transmission.
This model supports 2 independent channels.
It provides a differential output type.
The operating temperature range is from 0°C to 70°C.
It comes in a compact 16-pin SOIC surface mount package.
The supply current is approximately 2mA at room temperature.
It employs CMOS/TTL logic family, enhancing compatibility with various systems.
The dimensions are 10mm in length, 4mm in width, and 1.75mm in height.
It supports single-ended input to differential output configuration.
The maximum high-level output current is -1mA.
It is suited for industrial control, communication interfaces, and general line driving applications in electronics manufacturing.
