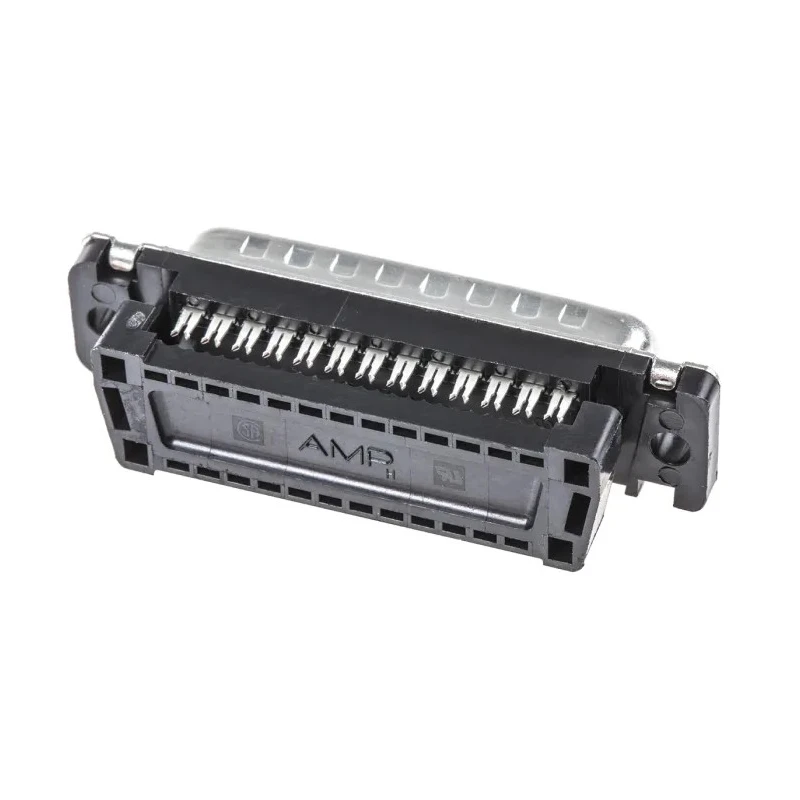

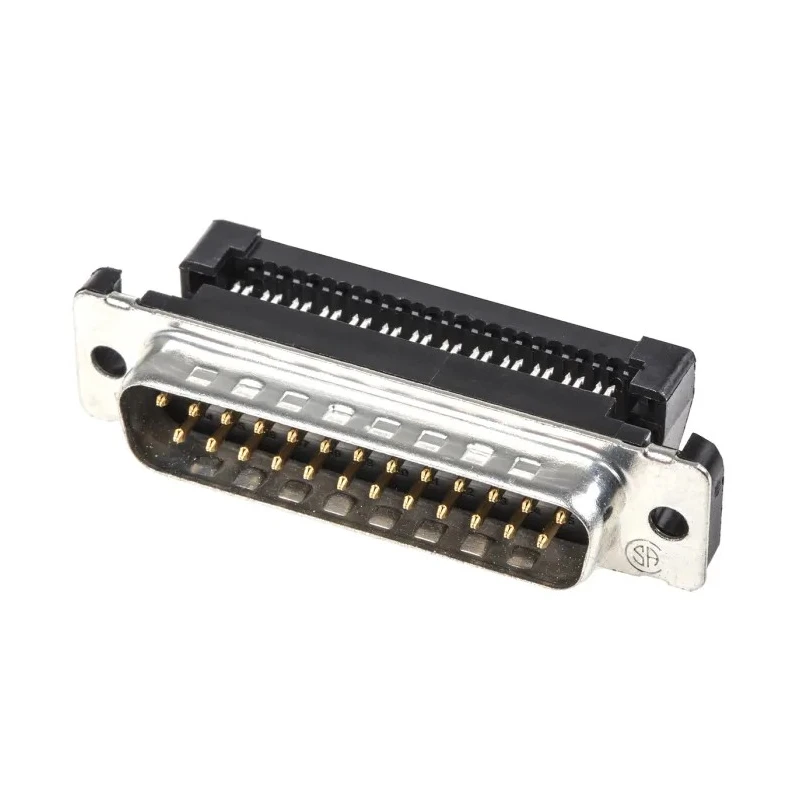

TE Connectivity Amplimite HDF-20 25 Way Right Angle 2.76 mm Pitch Cable D-Sub Connector Male 1658613-2
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 30V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 1.25A |
| Mount Type | Cable |
| Housing Material | Steel |
| Contact Material | Phosphor Bronze |
| Series | Amplimite HDF-20 |
| Termination Type | IDC |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.76mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 25 |
| Contact Gender | Male |
| Connector Gender | Male |
| RS PRO 25 Way Straight 1.27 mm Pitch Cable D-Sub Connector MaleBrand | RS PRO |
Key Features
- Designed with 25 contacts supporting up to 1.25A current capacity.
- This D-sub connector features a right-angle orientation and cable mount type.
- Contact material is phosphor bronze with gold over nickel plating for durability.
- Housing is steel with a low profile metal shell rated for -55°C to 105°C operating temperature.
- Pitch between contacts is 2.76 mm, suitable for flat ribbon cables with 28 or 26 AWG conductors.
- Termination type is IDC providing easy and secure connection to cables.
- Compatible with HD-20 Board Mount, HDP and HDE d-sub connectors sizes 1-4.
- Used in electronic, industrial, and communication equipment applications.
Product Description
TE Connectivity 1658613-2 Amplimite HDF-20 is a 25 Way Right Angle Cable D-Sub Connector Male designed for reliable interconnection of ribbon cables in industrial and electronic systems. This connector has a 2.76 mm pitch between contacts and is housed in a robust steel low profile metal shell, providing mechanical strength and EMI shielding.
It is part of the Amplimite HDF-20 series known for low profile IDC metal shell connectors that support flat ribbon cables with either 28 AWG or 26 AWG solid and stranded conductors laid out on 1.27 mm centers. The contacts are made from high-quality phosphor bronze and plated with gold over nickel for superior conductivity and corrosion resistance.
The connector features a right angle orientation and a cable mounting type, making it appropriate for space-constrained assemblies where cable direction must be controlled. Rated for current up to 1.25A and voltage up to 30V, it suits signal-level applications. Operating temperature range is wide, from -55°C to 105°C, enabling use in various harsh environments.
Termination is via Insulation Displacement Contact (IDC) technology for efficient, solderless cable connection. The connector mates with matching HD-20 board mount connectors, HDP, and HDE sizes 1-4, offering flexible system integration.
Typical industrial applications include electronic component assemblies, power and signal distribution in machinery, communication devices, laboratory equipment, and automation systems.
Designed with 25 contacts supporting up to 1.25A current capacity. This D-sub connector features a right-angle orientation and cable mount type. Contact material is phosphor bronze with gold over nickel plating for durability.
Housing is steel with a low profile metal shell rated for -55°C to 105°C operating temperature. Pitch between contacts is 2.76 mm, suitable for flat ribbon cables with 28 or 26 AWG conductors. Termination type is IDC providing easy and secure connection to cables.
Compatible with HD-20 Board Mount, HDP and HDE D-Sub Connectors sizes 1-4. Used in electronic, industrial, and communication equipment applications. Explore more connectors and electronic components in the Electronics & Electricals category on EnvMart for reliable industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This D-sub connector supports a current capacity of up to 1.25A.
The voltage rating for this connector is 30V.
The pitch between contacts in this model is 2.76 mm, suitable for flat ribbon cables.
The contacts are made from phosphor bronze and are plated with gold over nickel for improved conductivity and corrosion resistance.
The operating temperature range for this connector is from -55°C to 105°C.
This D-sub connector uses Insulation Displacement Contact (IDC) technology for efficient, solderless cable connection.
This connector features a right-angle orientation, making it suitable for space-constrained assemblies.
This model has 25 contacts.
This connector supports a cable mount type.
Yes, it is compatible with HD-20 board mount connectors, as well as HDP and HDE sizes 1-4.
The housing of this connector is made of steel, providing mechanical strength and EMI shielding.
This connector is used in electronic, industrial, and communication equipment applications, including power and signal distribution.
