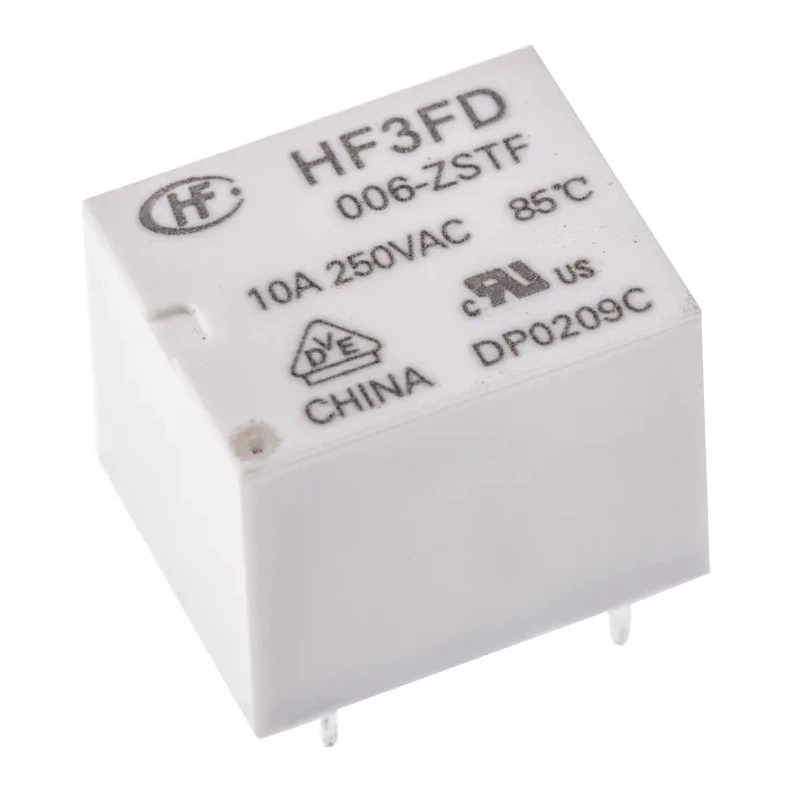

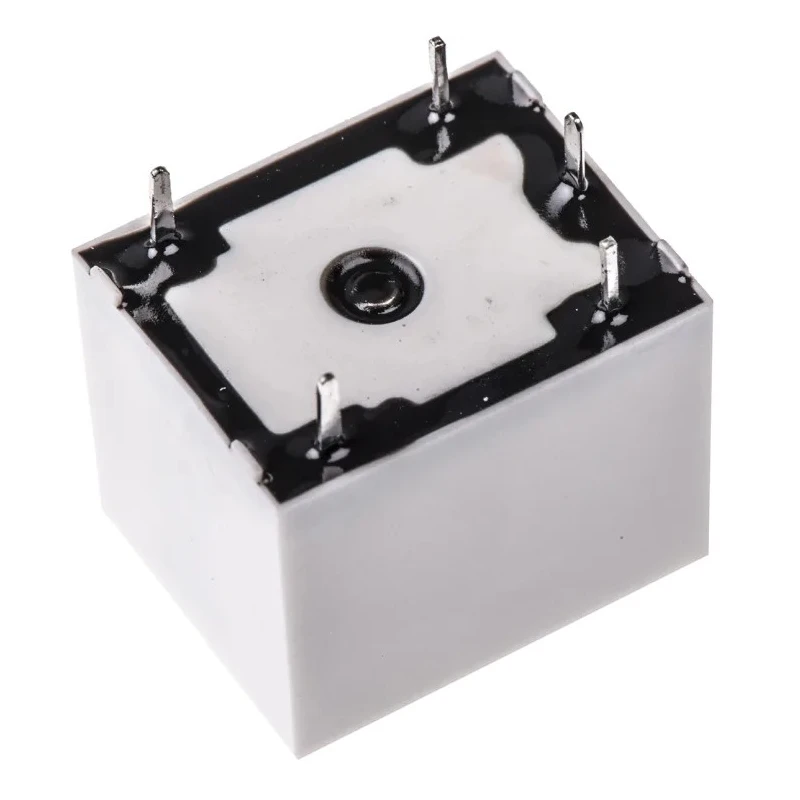

RS PRO PCB Power Relay 6V DC Coil 10A Switching Current SPDT 0476573P
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Height | 15.5mm |
| Length | 19mm |
| Model | 0476573P |
| Width | 15.2mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Maximum Operating Temperature | 105°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 100Ω |
| Coil Voltage | 6V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 277V ac |
| Coil Power | 360mW |
Key Features
- Designed for subminiature standard PCB mounting.
- Switching AC voltage up to 277V and DC voltage up to 30V.
- Coil resistance of 100 Ohms with coil power consumption of 360mW.
- Operates within temperature range of -40°C to 105°C.
- Constructed with silver alloy contact material for reliable conductivity.
- Features 2kV dielectric strength between coil and contacts for safety compliance.
- Conforms to RoHS standards and UL94 V-0 flammability class.
- Approved under UL File no. E134517 and VDE File no. 40014057 standards.
Product Description
RS PRO 0476573P PCB Power Relay is a robust power relay engineered for industrial and electronics applications requiring reliable switching.
This relay operates with a 6V DC coil and supports a switching current of 10A with a single pole double throw (SPDT) contact configuration. The subminiature design ensures compatibility with standard PCB layouts, optimized for space efficiency.
It supports switching voltages up to 277V AC and 30V DC, making it adaptable for a variety of electronic circuits and control applications. Coil resistance is 100 Ohms with a coil power rating of 360mW, offering low power consumption while maintaining strong magnetic actuation.
The relay functions reliably within a broad temperature range from -40°C to 105°C, aided by silver alloy contacts for enhanced electrical performance and durability. Safety is a priority, with a 2kV dielectric strength between coil and contacts and compliance with RoHS environmental standards.
Additional features include UL94 V-0 flammability classification, Class F insulation, and approvals from UL (File no. E134517) and VDE (File no. 40014057). Its compact dimensions of 19mm (L) x 15.5mm (H) x 15.2mm (W) facilitate easy integration into industrial control systems and electronic devices.
Designed for subminiature standard PCB mounting. Switching AC voltage up to 277V and DC voltage up to 30V. Coil resistance of 100 Ohms with coil power consumption of 360mW. Operates within temperature range of -40°C to 105°C.
Constructed with silver alloy contact material for reliable conductivity. Features 2kV dielectric strength between coil and contacts for safety compliance. Conforms to RoHS standards and UL94 V-0 flammability class. Approved under UL File no. E134517 and VDE File no. 40014057 standards.

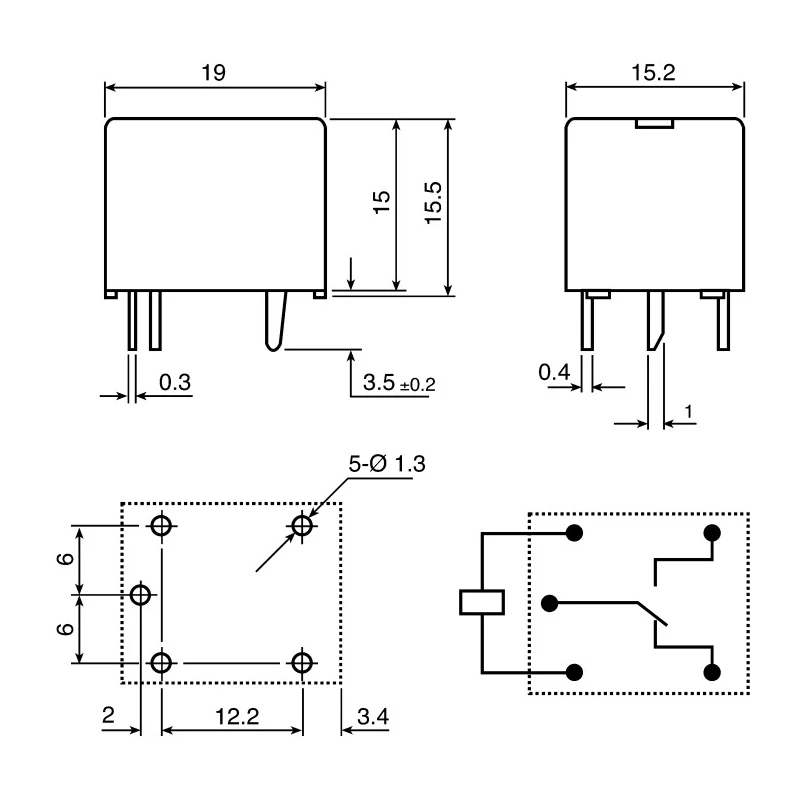

Compact dimensions: 19mm length, 15.5mm height, 15.2mm width.
This power relay is ideal for use in industrial automation, electronics manufacturing, HVAC control systems, and other electrical applications where compactness and reliable switching are essential.
Explore the RS PRO brand and power relay category on EnvMart for a comprehensive range of quality industrial relays and electrical components.
Explore more products in our Power Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a switching current of 10A.
The relay operates with a coil voltage of 6V DC.
The compact dimensions are 19mm in length, 15.5mm in height, and 15.2mm in width.
It can switch AC voltage up to 277V and DC voltage up to 30V.
It features a single pole double throw (SPDT) contact configuration.
The coil resistance is 100 Ohms.
The coil power consumption is 360mW.
It operates within a temperature range of -40°C to 105°C.
The contacts are constructed from silver alloy for reliable conductivity.
It conforms to RoHS standards and has a UL94 V-0 flammability classification.
It features a dielectric strength of 2kV between the coil and contacts.
This model is designed for PCB mounting.
