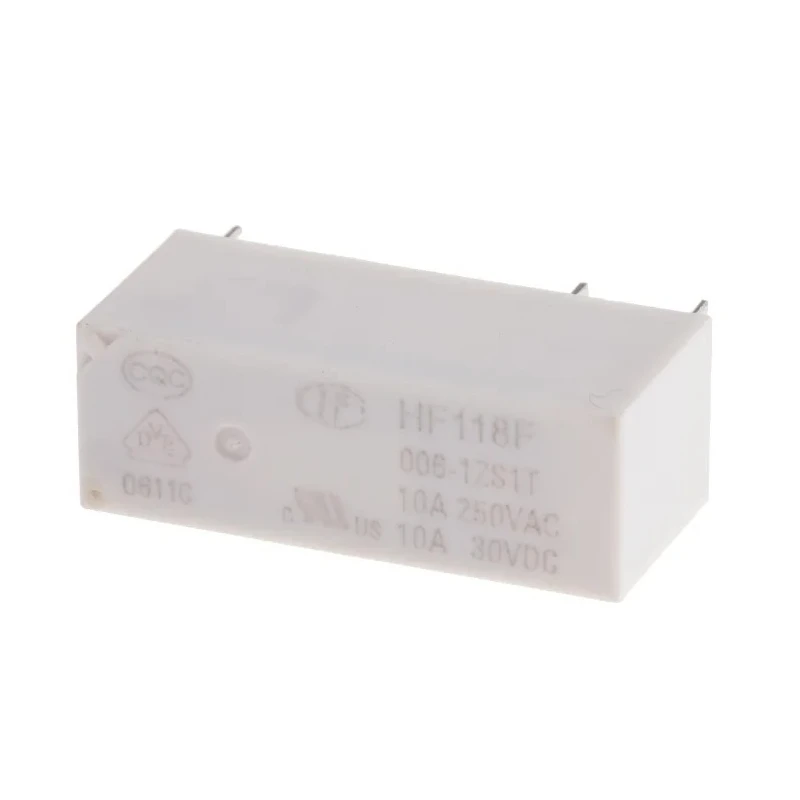

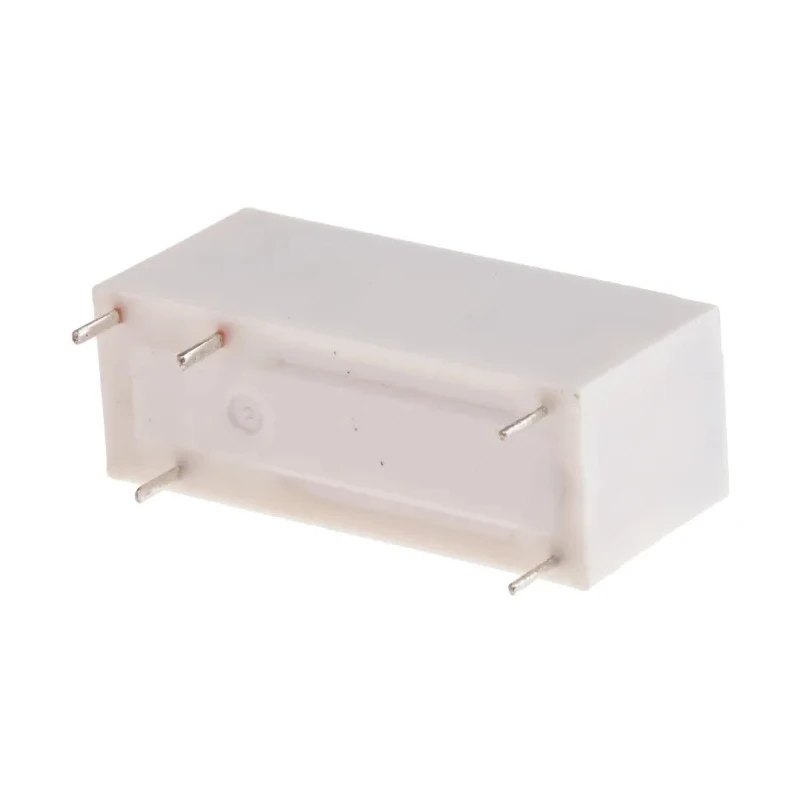

RS PRO PCB Power Relay, 6V DC Coil, 10A Switching Current, SPDT 476-684
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Height | 12.5mm |
| Length | 28.5mm |
| Model | 476-684 |
| Width | 10.1mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Solder |
| Low Profile | 12.5mm max height |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 164Ω |
| Coil Voltage | 6V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 440V ac |
| Coil Power | 290mW |
Key Features
- Operates with a coil voltage of 6V DC.
- Single Pole Double Throw (SPDT) contact configuration.
- Maximum switching current of 10A suitable for high power circuits.
- Designed for PCB mounting with solder terminal type.
- Compact dimensions with a low profile height of 12.5mm.
- Switching AC voltage up to 440V and DC voltage up to 125V.
- Coil resistance of 164 ohms and coil power consumption of 290mW.
- Contact material made of silver alloy for reliable conductivity.
Product Description
RS PRO 476-684 PCB Power Relay featuring a 6V DC coil is engineered for reliable power switching in electronic and electrical applications requiring up to 10A switching current. This relay offers a Single Pole Double Throw (SPDT) contact configuration and is designed for surface mount on printed circuit boards with solder terminals.

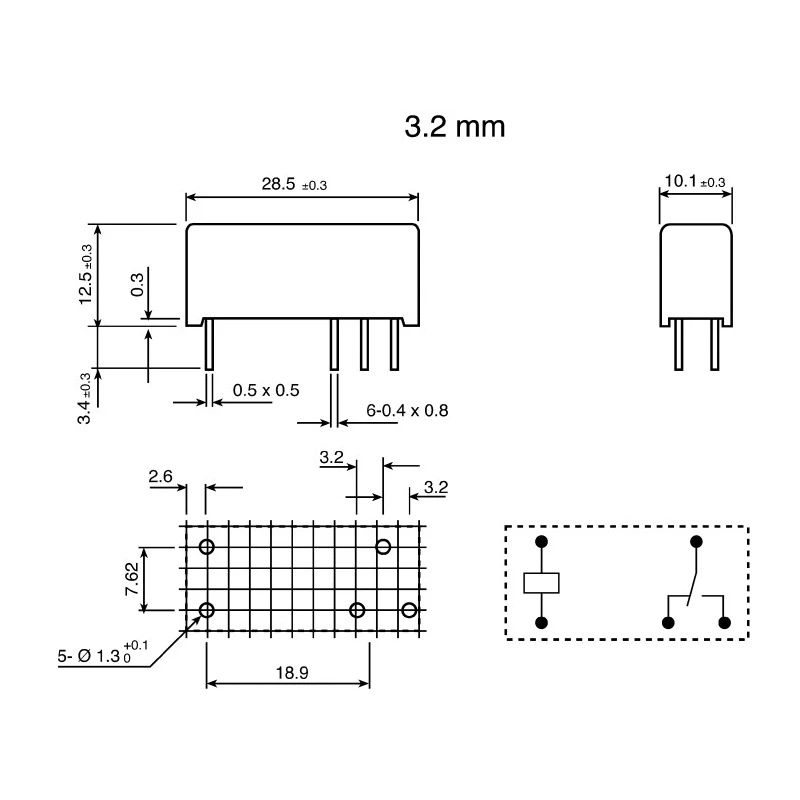

The relay's compact low profile design, with a maximum height of 12.5mm, length of 28.5mm, and width of 10.1mm, allows for efficient space usage in tight electronic assemblies. It supports switching AC voltages up to 440V and DC voltages up to 125V, making it versatile for AC and DC circuit designs.
Built with silver alloy contacts, this relay ensures low contact resistance of 100 milliohms and maintains strong electrical performance with coil resistance at 164 ohms and power consumption of just 290 milliwatts. It operates safely across a wide temperature range from -40°C to 85°C. The relay also provides excellent isolation with a dielectric strength of 5kV between coil and contacts and surge resistance up to 10kV.
Conforming to RoHS compliance and standards IEC 60335-1, VDE 0435/0631/0700, and approvals including UL (File no. E133481), VDE (File no. 40010480), and CQC (File no. CQC04001011425), it is suited for industrial automation, control panels, HVAC systems, and other commercial electrical applications.
Operates at 6V DC coil voltage with SPDT contacts. Supports 10A switching current for power relays. Compact low profile design for PCB mounting. High dielectric strength and surge voltage protection. Silver alloy contacts ensure reliable conductivity.
Wide temperature operating range for diverse environments. RoHS compliant and certified to global safety standards. Suitable for industrial, commercial, HVAC, and automation uses. Durable solder terminal type for secure PCB installation.
Efficient low coil power consumption of 290mW.
Choose RS PRO 476-684 PCB Power Relay for high performance and reliable operation in your electrical and automation projects. Browse more Power Relay options on EnvMart for similar reliable components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This relay supports a maximum switching current of 10A, making it suitable for high power circuits.
The coil voltage for this model is 6V DC, which is necessary for its operation.
The relay has a height of 12.5mm, a length of 28.5mm, and a width of 10.1mm, allowing for efficient space usage on PCBs.
It features a Single Pole Double Throw (SPDT) contact configuration, which allows for versatile switching applications.
The relay provides a dielectric strength of 5kV between the coil and contacts, ensuring excellent isolation.
This relay operates safely across a temperature range from -40°C to 85°C, suitable for diverse environments.
The coil resistance is 164 ohms, which is important for calculating the current draw during operation.
The contacts are made of silver alloy, which ensures reliable conductivity and low contact resistance.
It can switch AC voltages up to 440V and DC voltages up to 125V, making it versatile for various circuit designs.
This model is designed for PCB mounting and features solder terminals for secure installation.
The coil power consumption is 290mW, which is efficient for its operational requirements.
Yes, it conforms to RoHS compliance and several standards including IEC 60335-1 and VDE approvals.
