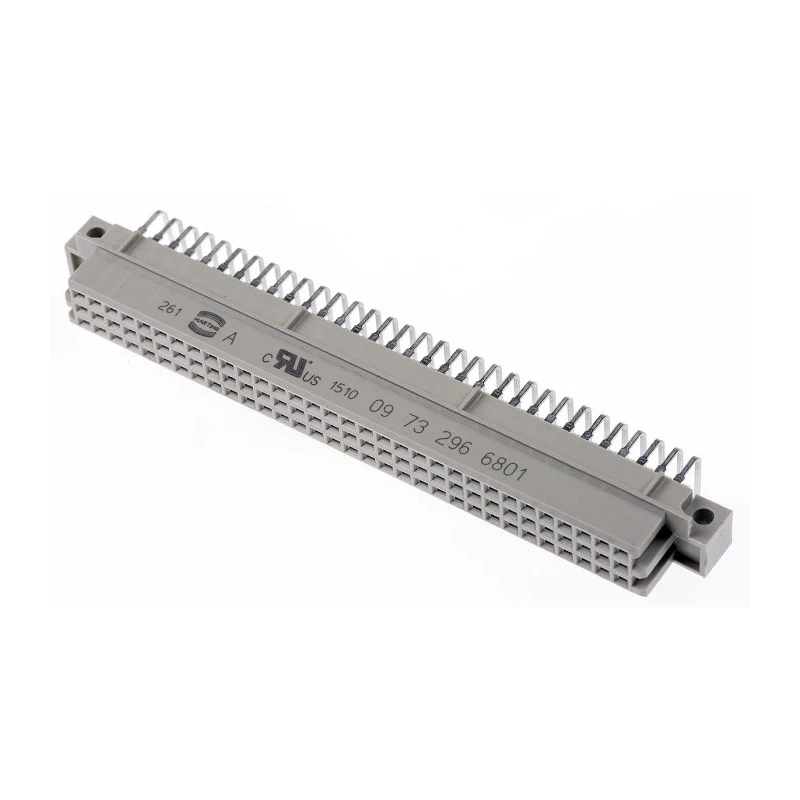

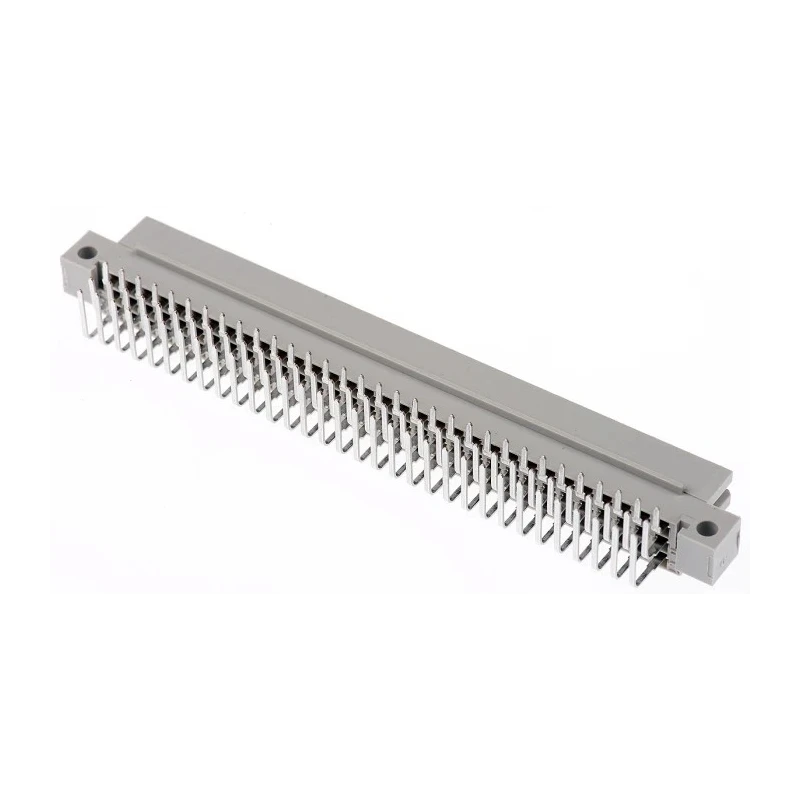

HARTING DIN 41612 Connector 96 Way 2.54 mm Pitch, Type Through Hole, Type C/2, Solder Class C2, 3 Row Female 09732966801

HARTING 09732966801 DIN 41612 Connector is a 96 way female connector designed for use in industrial electronics and electrical applications requiring dependable backplane and rack connectors. With a 2.54 mm pitch and three rows of contacts, this connector supports a current rating of 2A and withstands operating temperatures from -55°C to 125°C.

The connector features gold over nickel contact plating that enhances conductivity and protects against corrosion, making it suitable for demanding environments. Its polybutylene terephthalate housing provides robust insulation and mechanical reliability. The right-angle female design allows for efficient mounting on PCBs and equipment backplanes, employing a solder termination method for secure connectivity, and through-hole mounting for mechanical strength.

This product conforms to DIN 41612 standards and is compatible with reversed types Q & R connectors, supporting plug mounting onto 19-inch Eurocard racking systems commonly used in industrial and manufacturing equipment. The class C2 solder class and type C/2 sub type specify the connector's detailed configuration for precise application needs.

Ideal for use in electronics manufacturing, telecommunications, industrial automation, and aerospace systems, this connector ensures high performance and reliability under varied temperature and electrical load conditions.

Features 96 contacts arranged in 3 rows for extensive connectivity. Pitch spacing of 2.54 mm ensures compatibility with standard PCB layouts. Gold over nickel plating on contacts provides excellent corrosion resistance. Female connector with right-angle orientation facilitates PCB mounting in tight spaces.

Constructed with polybutylene terephthalate housing for durability and insulation. Rated for a maximum current of 2A and operating temperatures from -55°C to 125°C. Termination by solder method ensures secure and stable electrical connections.

Designed for through-hole mounting to optimize mechanical stability. Compatible with type C/2 connector sub type, class C2 solder class. Manufactured in Germany ensuring high quality standards. Explore the full range of DIN 41612 Connectors at EnvMart for your electronic component and power connector requirements.
