TE Connectivity Free Height Series Straight Surface PCB Socket 100-Contact 2 Row 0.8 mm Pitch Solder 5-5179009-4

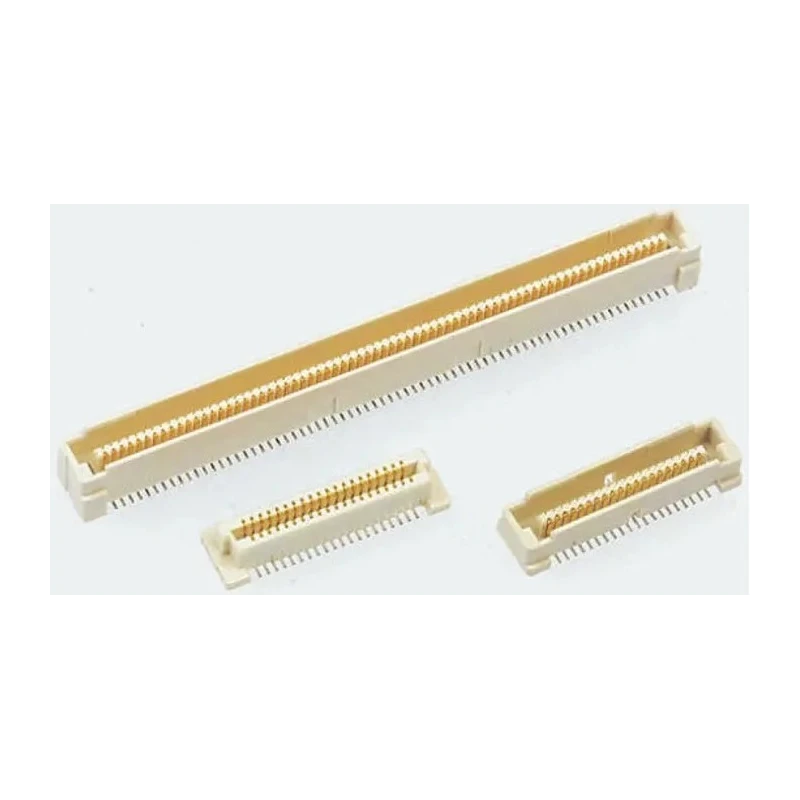

TE Connectivity 5-5179009-4 Free Height Series Straight Surface PCB Socket offers a high-density 100-contact, 2-row configuration with a 0.8 mm pitch designed for precise board-to-board connection applications. The socket employs a liquid crystal polymer housing providing mechanical stability, and beryllium copper alloy contacts plated with gold ensure excellent electrical performance and corrosion resistance.

With a solder termination surface mount design, it is suited for mounting on printed circuit boards requiring compact and reliable interconnects. The Free Height (FH) series allows flexible stacking heights from 5mm to 16mm, accommodating various board stacking arrangements.

The contacts feature a bellows type spring design resistant to damage during mating cycles, offering dependable electrical connectivity over numerous insertions. Polarization features and PCB positioning bosses prevent misalignment and ensure correct assembly.

This PCB socket supports up to 500mA current and 100V voltage rating, with an operational temperature range from -40°C to 125°C, making it reliable under diverse industrial, commercial, and consumer electronic conditions.

Common applications include notebook computers, mobile devices, pen pads, and other electronic equipment requiring miniaturized connectors for board stacking. Designed for board-to-board connection with straight orientation and surface mount type.

Constructed with liquid crystal polymer housing for durability. Contacts are beryllium copper alloy plated with gold for reliable electrical connection. Supports current up to 500mA and voltage rating of 100V. Operating temperature range from -40°C to 125°C suits varied environments.

Features Free Height (FH) series to allow varied stacking heights between 5 to 16 mm. Polarized design ensures accurate mating and PCB positioning bosses aid correct placement. Typical applications include notebook PCs, mobile phones, pen pads, and other miniature electronics.

Connector system and gender are board-to-board and female respectively.

This high-precision PCB socket is an essential component for electronic manufacturing, offering space saving, durability, and reliable electrical performance. Explore more TE Connectivity PCB Sockets and related components in our Electronics Components category on EnvMart.
