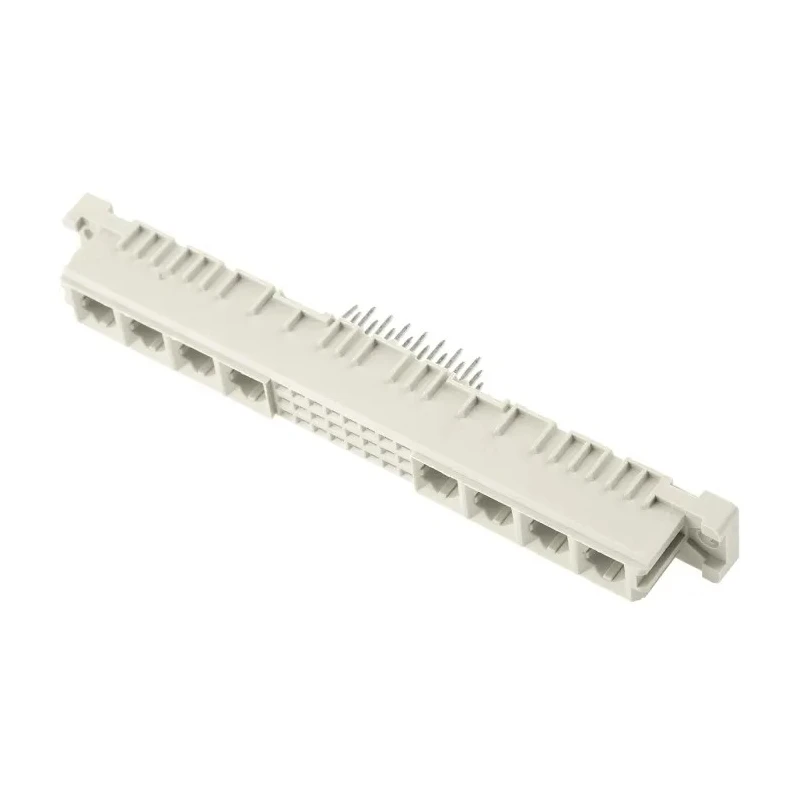

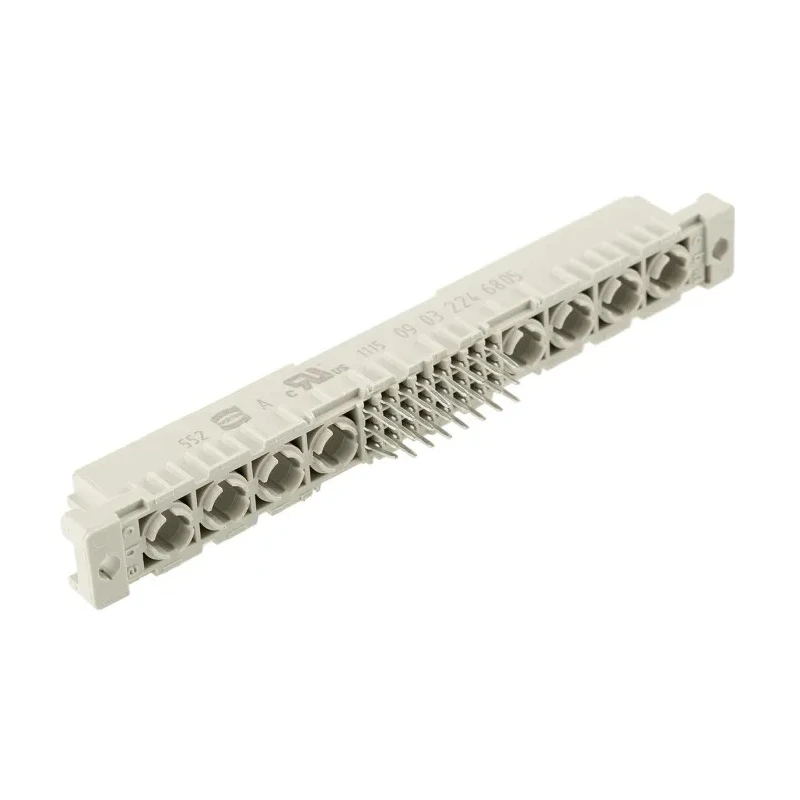

HARTING DIN 41612 32 Way 2.54 mm Pitch Through Hole Type C/2 Solder Class C2 3 Row Female Straight Connector 09032246805
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | HARTING |
| Orientation | Straight |
| Current | 2A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | DIN 41612 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | C/2 |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 3 |
| Pitch | 2.54mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 32 |
| Contact Gender | Female |
| Connector Gender | Female |
| Maximum Contact Resistance | 20mΩ |
| Row Loading | A/B/C |
Key Features
- Comprises 32 contacts arranged in 3 rows with 2.54 mm pitch spacing.
- Features gold plating over nickel contacts for enhanced conductivity and corrosion resistance.
- Rated for a maximum current of 2A suitable for low power electronic applications.
- Constructed with copper alloy contacts and polybutylene terephthalate housing for durability.
- Operating temperature range from -55°C to 125°C for versatile use conditions.
- Mount type is through hole for secure PCB installation.
- Connector orientation is straight female with row loading A/B/C, subtype C/2.
- Maximum contact resistance of 20 milliohms ensures low signal loss.
Product Description
HARTING 09032246805 DIN 41612 32 Way 2.54 mm Pitch Through Hole Type C/2 Solder Class C2 3 Row Female Straight Connector offers a robust and reliable solution for backplane and rack connections in electronic systems.
This connector is engineered with 32 copper alloy contacts plated with gold over nickel to ensure excellent electrical conductivity and resistance to corrosion, suitable for telecommunications, data communications, measurement, and control applications.
The polybutylene terephthalate housing provides mechanical stability and high temperature resistance, supporting a maximum operating temperature of 125°C and a minimum of -55°C.
Its three-row configuration (A/B/C row loading) with subtype C/2 and through-hole solder termination offers ease of installation on PCBs, guaranteeing firm and stable electrical connections in demanding industrial environments.
The connector is compliant with DIN 41612 series, ensuring compatibility with standard RS 19in sub-rack systems and Eurocard racking applications. 32 contacts arranged in 3 rows with 2.54 mm pitch spacing. Gold over nickel plating for superior conductivity and corrosion resistance.
Rated for 2A current suitable for low power electronic circuits. Durable polybutylene terephthalate housing withstands harsh industrial environments. Wide operating temperature range from -55°C to 125°C for flexible deployment.
Through hole solder termination mounting for secure PCB connections. Straight female connector orientation with C/2 row loading configuration. Low contact resistance of max 20 milliohms for efficient signal transmission.
This DIN 41612 connector is ideal for industrial, telecommunications, manufacturing, and electronic assembly use cases, enhancing electrical interconnections and system reliability.
Browse more reliable DIN 41612 Connectors and related electronic components on EnvMart for your industrial and laboratory needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for a maximum current of 2A, making it suitable for low power electronic applications.
The connector operates within a temperature range of -55°C to 125°C, allowing for versatile use in various conditions.
This model comprises 32 contacts arranged in 3 rows with a 2.54 mm pitch spacing.
It features copper alloy contacts and a polybutylene terephthalate housing, providing mechanical stability and high temperature resistance.
It uses through-hole solder termination for secure PCB installation.
The maximum contact resistance is 20 milliohms, ensuring low signal loss during operation.
The connector has a straight female orientation with row loading configuration A/B/C.
Yes, it is compliant with the DIN 41612 series, ensuring compatibility with standard RS 19in sub-rack systems and Eurocard racking applications.
It is suitable for telecommunications, data communications, measurement, and control applications.
The pitch spacing of the contacts is 2.54 mm.
The country of origin for this connector is Germany.
The housing is made of polybutylene terephthalate, providing durability and resistance to harsh conditions.
