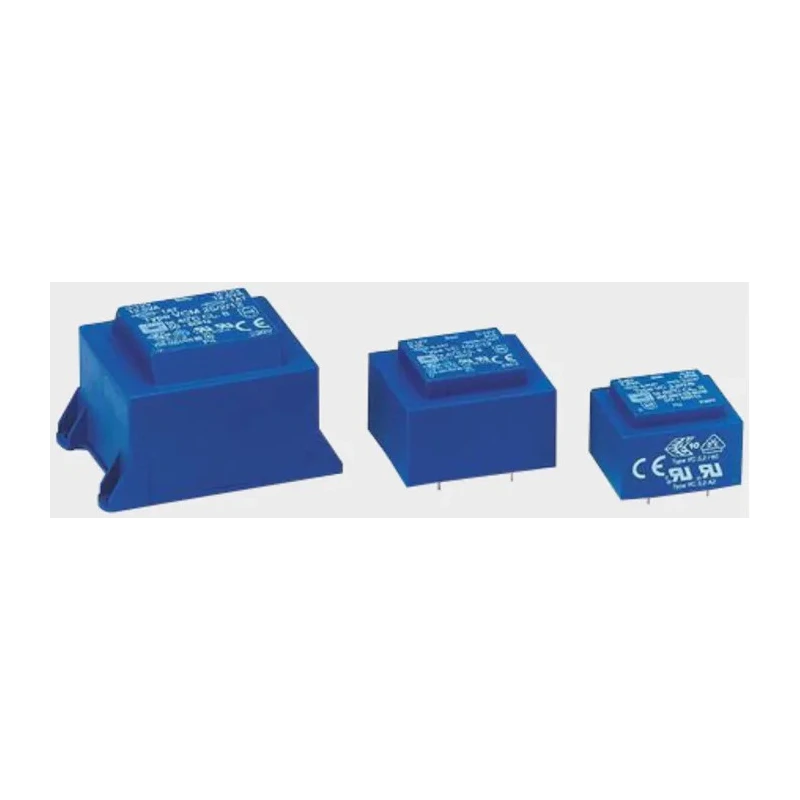

Block PCB Transformer 230 V ac Primary, 2 x 18 V ac Secondary, 5 VA Power, 68% Efficiency, Model VC 5/2/18

Free Delivery in India | Lowest Global Shipping Charges

Block PCB Transformer 230 V ac Primary, 2 x 18 V ac Secondary, 5 VA Power, 68% Efficiency, Model VC 5/2/18

Name: Block PCB Transformer 230 V ac Primary, 2 x 18 V ac Secondary, 5 VA Power, 68% Efficiency, Model VC 5/2/18
Brand: Block
SKU: 119553
Price: 23 USD
Availability: InStock



Category PCB Transformer Brand Block Condition New

Specifications

Country of Origin	Germany
Brand	Block
Efficiency	68%
Length	44mm
Model	VC 5/2/18
Depth	37mm
Gross Weight	0.42lb
Width	33mm
Mount Type	PCB
Series	VC 5
Maximum Operating Temperature	122°F
Number of outputs	2
Primary Voltage	230 V ac
Secondary Voltage	2 x 18 V ac
Minimum Operating Frequency	50Hz
Maximum Operating Frequency	60Hz
PCB mount transformer,5VA 2x0-18V o/pBrand	Block

Key Features

This PCB transformer supports 2 outputs of 18 V ac each, suitable for series or parallel connection.

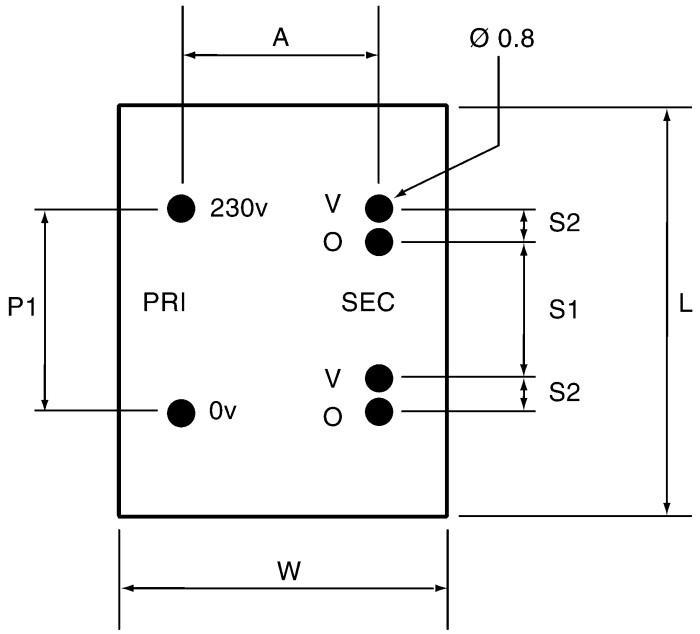

Designed for PCB mounting with dimensions 44mm (L) x 33mm (W) x 37mm (D) for compact integration.
Vacuum resin moulded to UL94-V0 for flame retardant performance and low inter-winding capacitance for noise reduction.
Complies with major standards including VDE 0570 Part 2-6, IEC 61558-2-6, cURus, CSA 22.2 No.66, VDE, and UL approvals.
Rated maximum operating temperature 122°F and frequency range 50 - 60 Hz for versatile industrial applications.

Product Description

Block VC 5/2/18 is a high-quality PCB transformer designed for electronic power applications requiring 230 V ac primary voltage and dual 18 V ac secondary outputs. Rated at 5 VA power with 68% efficiency, it suits laboratory, industrial electronics, control systems, and commercial power supply applications.

This transformer features vacuum resin molding with UL94-V0 rating providing flame retardance and low radiated noise through low inter-winding capacitance. Its compact size of 44mm length, 33mm width, and 37mm depth facilitates reliable PCB mounting.

It offers two secondary outputs, enabling series or parallel connection flexibility to meet specific voltage needs. The transformer is certified to multiple industrial standards and approvals, including VDE 0570 Part 2-6, IEC 61558-2-6, cURus, CSA 22.2 No.66, VDE, and UL 5085-1/-2, ensuring compliance and safety.

Operating temperature is rated up to 122°F, with a frequency range suitable for 50 to 60 Hz power sources. Weighing approximately 0.42 pounds (0.19 kilograms), it is designed for easy PCB integration without adding excessive weight.

This PCB transformer supports 2 outputs of 18 V ac each, suitable for series or parallel connection. Designed for PCB mounting with compact dimensions of 44mm x 33mm x 37mm for versatile applications. Vacuum resin moulded to UL94-V0 standard provides flame retardance and electrical safety.

Complies with VDE 0570 Part 2-6, IEC 61558-2-6, cURus, CSA 22.2 No.66, VDE, and UL approvals for industry standard performance. Rated maximum operating temperature 122°F ensures operation under elevated temperature conditions.

Low inter-winding capacitance reduces radiated noise for sensitive electronics applications. Weight approximately 0.42 lb supports stable mounting on printed circuit boards.

Ideal for industrial machinery, power supplies, instrumentation, manufacturing, electronic components, and control systems, this Block PCB Transformer ensures reliable voltage transformation with safety and efficiency. Explore more transformers and electronic components in EnvMart's Electronics & Electricals category.
