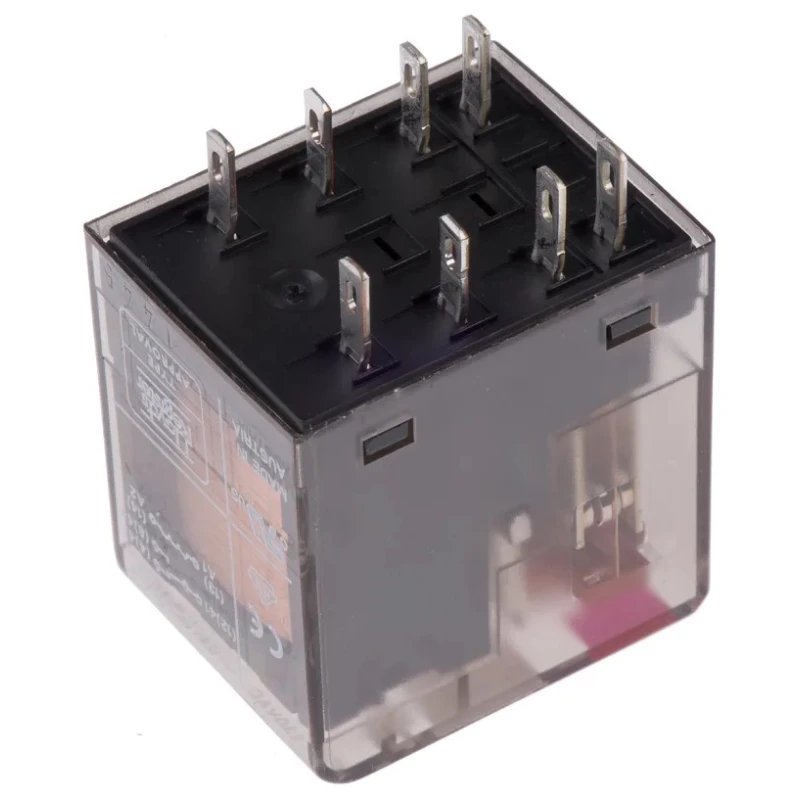

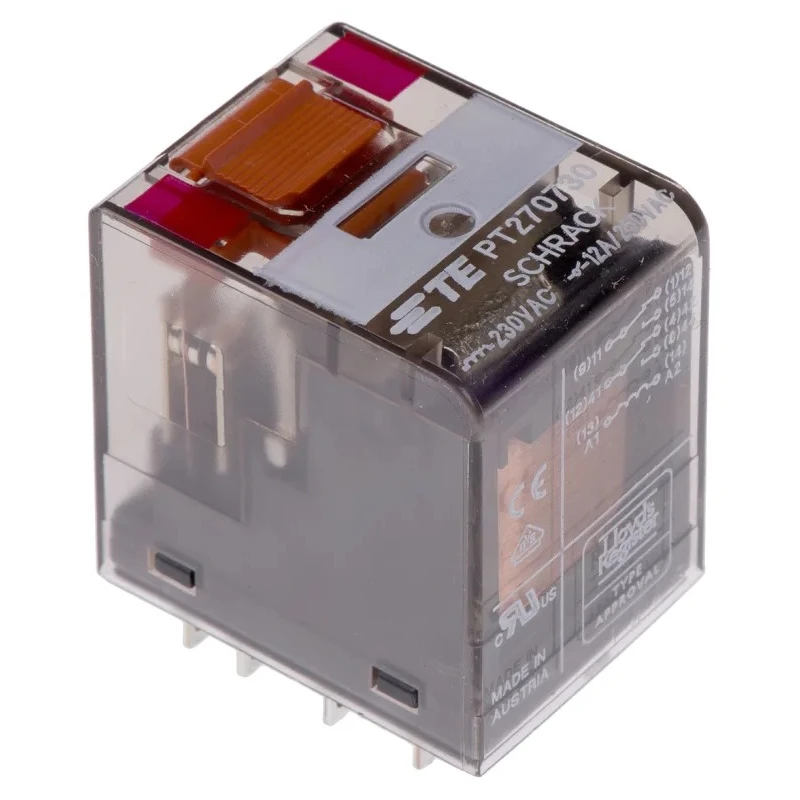

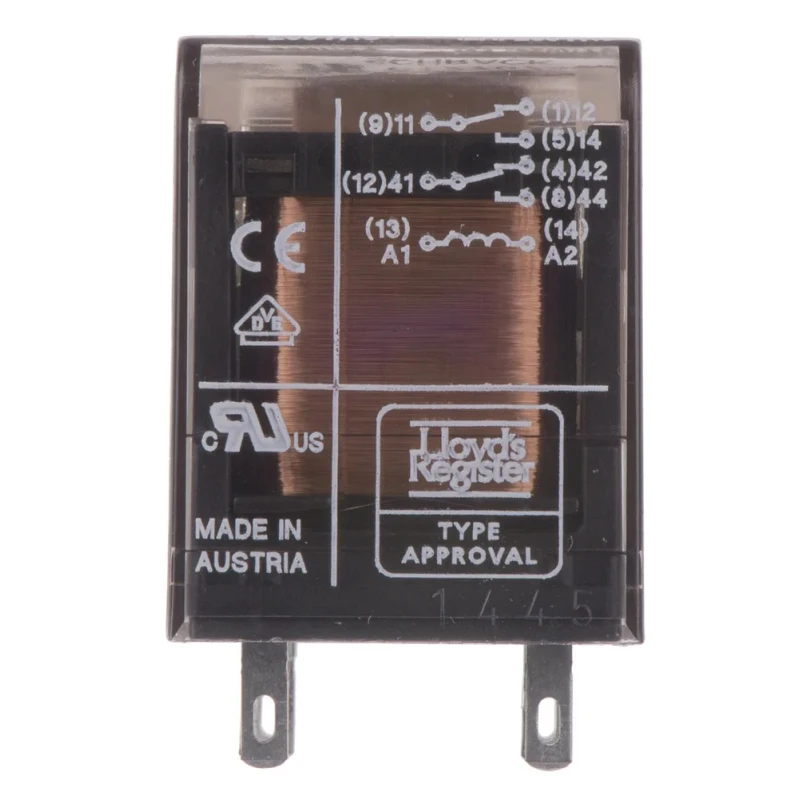

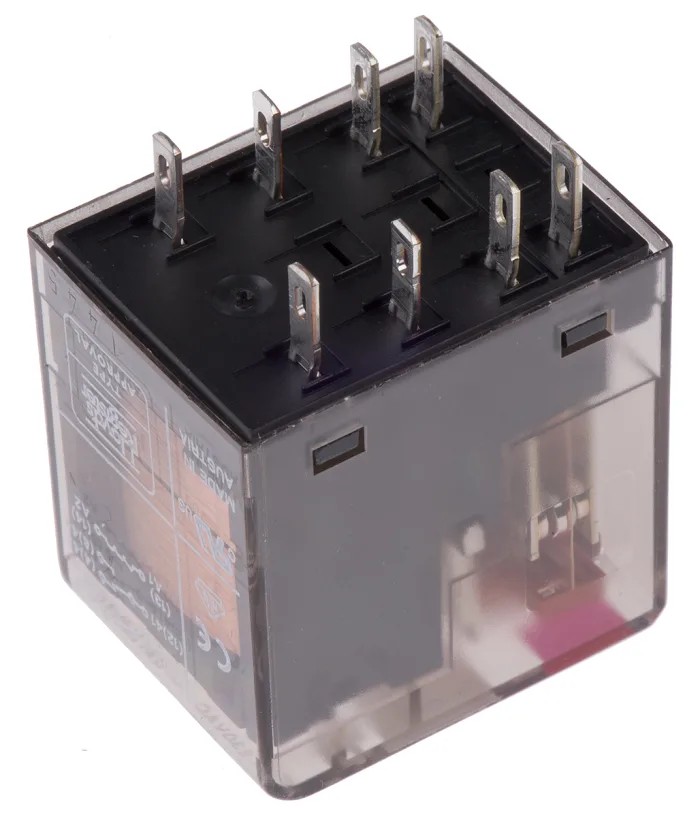

TE Connectivity Power Relay 230V AC Coil 12A Switching Current DPDT PT270730 5-1419111-1
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 35mm |
| Length | 28mm |
| Model | PT270730 5-1419111-1 |
| Width | 22.5mm |
| Contact Material | Silver Nickel Alloy |
| Series | PT |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 12A |
| Terminal type | Quick Connect |
| Standards/Approvals | VDE, UL, RoHS, IEC |
| Coil Resistance | 19.5kΩ |
| Coil Voltage | 230V ac |
| Switching AC Voltage | 400V ac |
| Isolation Coil To Contact | 2.5kV(ac) |
Key Features
- Operates with a coil voltage of 230V AC for reliable control.
- Double pole double throw (DPDT) contact configuration ensures versatile switching.
- Switching current rated at 12A suitable for moderate power applications.
- Quick Connect terminal type facilitates easy and secure installation.
- Operating temperature range from -40°C to 70°C for wide environmental tolerance.
- High switching power of up to 3 kVA supports demanding electrical loads.
- Durable silver nickel alloy contact material ensures long service life and conductivity.
- Isolation voltage of 2.5 kV AC between coil and contacts for safe operation.
Product Description
TE Connectivity PT270730 5-1419111-1 Power Relay is designed for industrial and electrical automation applications requiring robust switching performance. It features a reliable 230V AC coil and a DPDT contact configuration capable of switching currents up to 12A. This power relay suits applications in industrial control, HVAC systems, manufacturing automation, and electrical distribution systems.
The relay is built with silver nickel alloy contacts offering excellent conductivity and mechanical durability, combined with a quick connect terminal type for efficient wiring and maintenance. Its compact size, with dimensions 28mm (length) x 22.5mm (width) x 35mm (height), allows installation in space-constrained panels.
Operating reliably between temperatures of -40°C and 70°C, this relay ensures continued performance under harsh environmental conditions. The coil resistance of 19.5 kΩ optimizes the power usage. Isolation voltage rating of 2.5 kV AC ensures safe separation between the coil and contacts.
Compliance with international standards including VDE, UL, RoHS, and IEC guarantees product quality, safety, and environmental responsibility. This product is assembled in Austria, affirming its high manufacturing standards.
Operates with 230V AC coil voltage for efficient switching. Double pole double throw (DPDT) contacts provide flexible circuit control. Handles up to 12A switching current for medium power applications. Quick Connect terminals enable fast installation and replacement.
Wide operating temperature range suitable for industrial environments. Compact form factor facilitates panel mounting in restricted spaces. Silver Nickel Alloy contacts ensure durability and conductivity. High isolation voltage ensures electrical safety.
Certified to multiple international standards for reliability.
This power relay is ideal for industrial machine controls, electrical switching panels, and automation systems requiring durable and certified relay components. Explore more Power Relays and related electrical automation components at EnvMart for your industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is 230V AC, which is suitable for efficient switching operations.
This model can handle a maximum switching current of 12A, making it suitable for moderate power applications.
It features a double pole double throw (DPDT) contact configuration, allowing for versatile circuit control.
The relay has dimensions of 28mm in length, 22.5mm in width, and 35mm in height, which allows for compact installation.
The isolation voltage rating is 2.5 kV AC, ensuring safe separation between the coil and contacts during operation.
It operates reliably within a temperature range of -40°C to 70°C, making it suitable for various environmental conditions.
The contacts are made of silver nickel alloy, which provides excellent conductivity and mechanical durability.
It uses a quick connect terminal type, facilitating easy and secure installation.
This relay complies with international standards including VDE, UL, RoHS, and IEC, ensuring product quality and safety.
The coil resistance is 19.5 kΩ, which optimizes the power usage during operation.
This power relay is assembled in Austria, affirming its high manufacturing standards.
It is suitable for applications in industrial control, HVAC systems, manufacturing automation, and electrical distribution systems.
