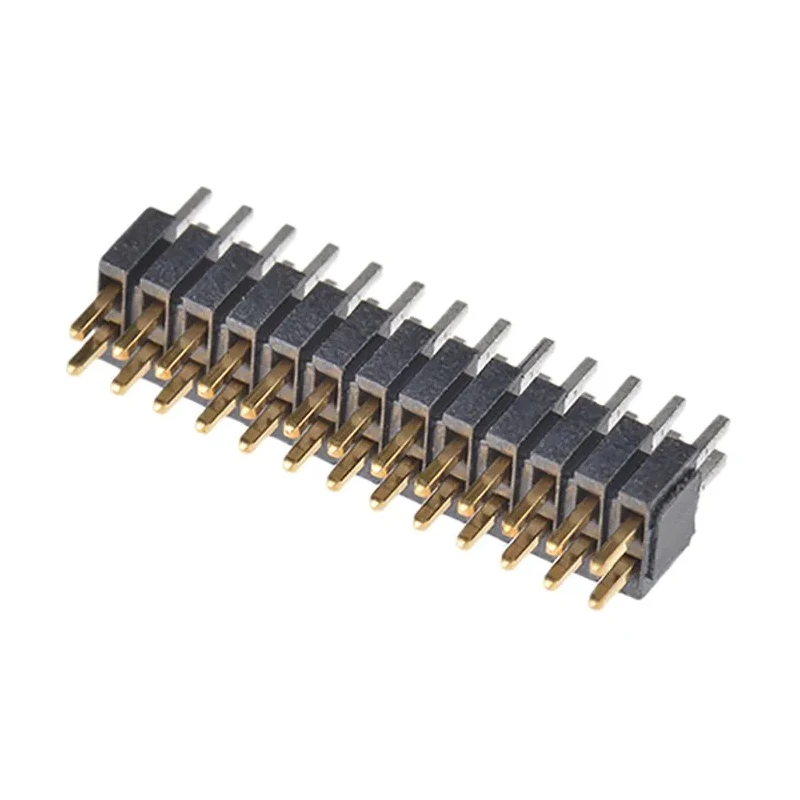

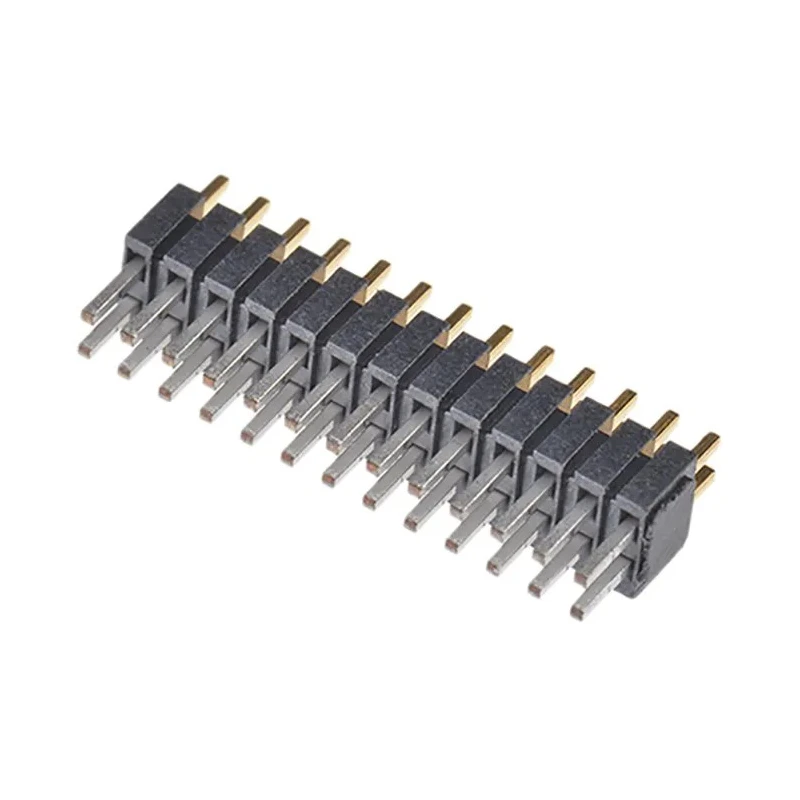

Samtec FTSH Series Straight Surface Pin Header 26 Contacts 1.27 mm Pitch 2 Row Unshrouded FTSH-113-02-F-D
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Orientation | Straight |
| Current | 1.75A |
| Model | FTSH-113-02-F-D |
| Mount Type | Surface |
| Housing Material | Polymer |
| Contact Material | Phosphor Bronze |
| Series | FTSH |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Gold |
| Number of Contacts | 26 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Mating Pin Length | 1.91mm |
| Insulator Material | Black LCP |
Key Features
- Features a straight orientation with two rows and 26 gold-plated phosphor bronze contacts.
- Supports a current rating of 1.75 A at 80°C for efficient power handling.
- Constructed with a polymer housing and black LCP insulator for durability.
- Offers a surface mount type suitable for board-to-board and wire-to-board systems.
- Operates across a temperature range from -55°C to 125°C.
- Contact tails are matte tin plated with a mating pin length of 1.91 mm.
- Termination via solder ensures secure electrical connections.
- Unshrouded design allows easy access for mating with FFSD IDC cable assemblies and CLP/FLE socket strips.
Product Description
Samtec FTSH-113-02-F-D Straight Surface Pin Header is a high-quality electronic connector designed for precise and reliable interfacing in PCB applications. Featuring 26 male contacts arranged in two rows at a 1.27 mm pitch, it provides dependable board-to-board and wire-to-board connectivity through its surface mount design.
The connector housing is made of robust polymer material with a black liquid crystal polymer (LCP) insulator, ensuring high mechanical strength and thermal stability. The phosphor bronze contacts are gold plated for optimal conductivity and corrosion resistance, with tails plated in matte tin for solder termination.
Rated for currents up to 1.75 A at 80 °C, this pin header operates reliably within a wide temperature range from -55 °C to 125 °C. The 1.91 mm mating pin length enables secure connection with compatible sockets or IDC cable assemblies, such as Samtec's FFSD, CLP, and FLE series.
Its unshrouded, straight orientation and through-hole mount style make it well suited for various electronic assembly contexts in industrial, electronics manufacturing, telecommunications, and computing equipment.
Straight orientation with two rows and 26 contacts. 1.27 mm pitch ensuring compact design and compatibility. Gold-plated phosphor bronze contacts for high conductivity. Polymer housing with black LCP insulator for durability.
Surface mount through-hole type for ease of assembly. Rated current of 1.75 A at standard operating temperatures. Wide operating temperature range from -55°C to 125°C. Solder termination for robust electrical connections.
Unshrouded design enables mating with various sockets and cable assemblies. Ideal for industrial, telecommunications, and manufacturing sectors.
This Samtec FTSH Series pin header is an excellent choice for engineers and manufacturers looking for reliable, durable, and high-performance PCB connectors. Browse EnvMart's electronic components category for a comprehensive selection of connectors and PCB accessories.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pin header is rated for a current of 1.75 A at 80 °C.
The contacts are arranged at a pitch of 1.27 mm.
It operates within a temperature range from -55 °C to 125 °C.
This model features 26 male contacts arranged in two rows.
The housing is made of polymer with a black liquid crystal polymer (LCP) insulator, and the contacts are made of phosphor bronze with gold plating.
It uses solder termination for secure electrical connections.
Yes, it is designed for both board-to-board and wire-to-board connectivity.
The mating pin length is 1.91 mm.
This pin header supports a surface mount type for ease of assembly.
The contacts are oriented straight in an unshrouded design.
It is suitable for various electronic assembly contexts in industrial, telecommunications, and computing equipment.
The pin header is manufactured in India.
