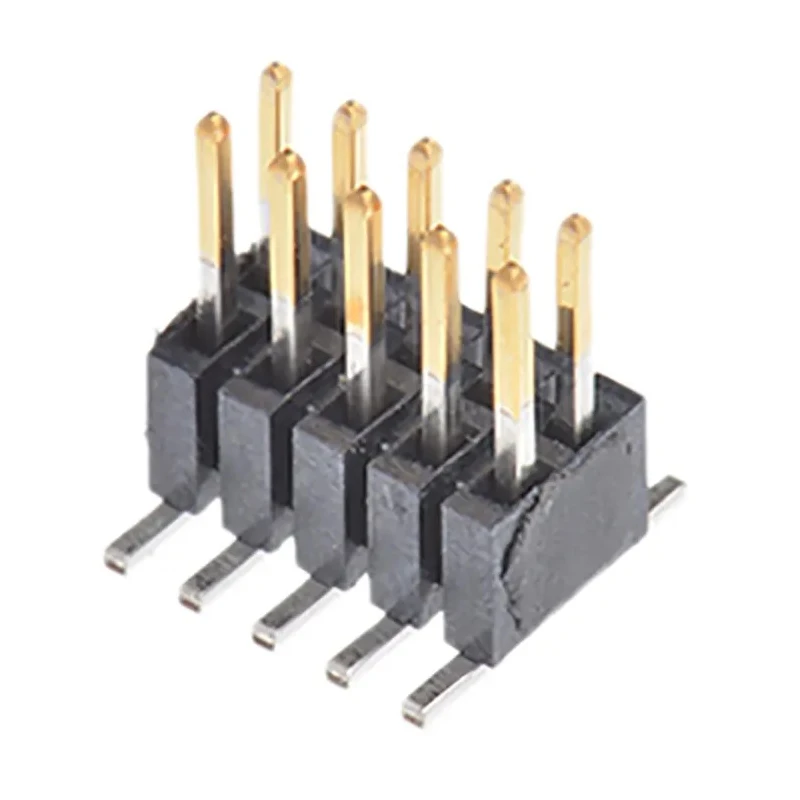

Samtec FTSH Series Straight Surface Pin Header 10 Contacts 1.27 mm Pitch 2 Row Unshrouded FTSH-105-04-F-DV
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Orientation | Straight |
| Current | 1.75A |
| Model | FTSH-105-04-F-DV |
| Mount Type | Surface |
| Housing Material | Polymer |
| Contact Material | Phosphor Bronze |
| Series | FTSH |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Mating Pin Length | 3.81mm |
Key Features
- Features a two-row, unshrouded configuration for versatile applications.
- Constructed with polymer housing and phosphor bronze contacts plated with gold.
- Supports a maximum current rating of 1.75 A at 80°C operating temperature.
- Optimal for board-to-board and wire-to-board connector systems.
- Termination type is solder with a mating pin length of 3.81 mm.
- Operates reliably between -55°C and 125°C temperature range.
- Surface mount technology compatible mounting type ensures ease of assembly.
- Male contact gender ensures proper mating with corresponding female connectors.
Product Description
Samtec FTSH-105-04-F-DV Straight Surface Pin Header is a high-quality PCB connector featuring 10 contacts arranged in two rows with 1.27 mm pitch, designed for precise and reliable electrical connections in various electronic applications.
The pin header utilizes a durable polymer housing with phosphor bronze contacts plated in gold to enhance conductivity and corrosion resistance. Its unshrouded design provides easy access and solder termination ensures solid mechanical and electrical connections on surface mount PCBs.
With a current rating of 1.75 A at 80°C, it is well suited for moderate power applications and can endure operating temperature extremes from -55°C to 125°C, making it suitable for harsh environmental conditions.
The connector is intended for both board-to-board and wire-to-board systems, improving design flexibility in compact electronic assemblies. The 3.81 mm mating pin length facilitates secure mating with compatible sockets and IDC cable assemblies.
Widely used in industrial, telecommunications, computing, and consumer electronics, this pin header aids in streamlined circuit board interfacing and ensures long-term durability. Two-row unshrouded surface mount micro header with 1.27 mm pitch.
Polymer housing with gold-plated phosphor bronze contacts for reliable conductivity. Supports solder termination providing secure PCB mounting. Rated for 1.75 A current with a wide -55°C to 125°C operating range. Compatible with FFSD, CLP, and FLE series mating accessories.
Robust design suitable for industrial and electronic manufacturing use cases. Explore more PCB Headers and connectors from Samtec available on EnvMart to complete your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current rating of 1.75 A at an operating temperature of 80°C.
It operates reliably between -55°C and 125°C, making it suitable for harsh environmental conditions.
This pin header features 10 contacts arranged in two rows.
It utilizes solder termination for secure connections on surface mount PCBs.
The housing is made of polymer, and the contacts are phosphor bronze plated with gold for enhanced conductivity and corrosion resistance.
The contacts are arranged with a pitch of 1.27 mm.
The mating pin length is 3.81 mm, facilitating secure mating with compatible sockets and IDC cable assemblies.
It is designed for both board-to-board and wire-to-board connector systems.
This model features an unshrouded design, allowing for easy access during installation.
It is compatible with surface mount technology, ensuring ease of assembly.
The contact gender is male, ensuring proper mating with corresponding female connectors.
The country of origin for this pin header is India.
