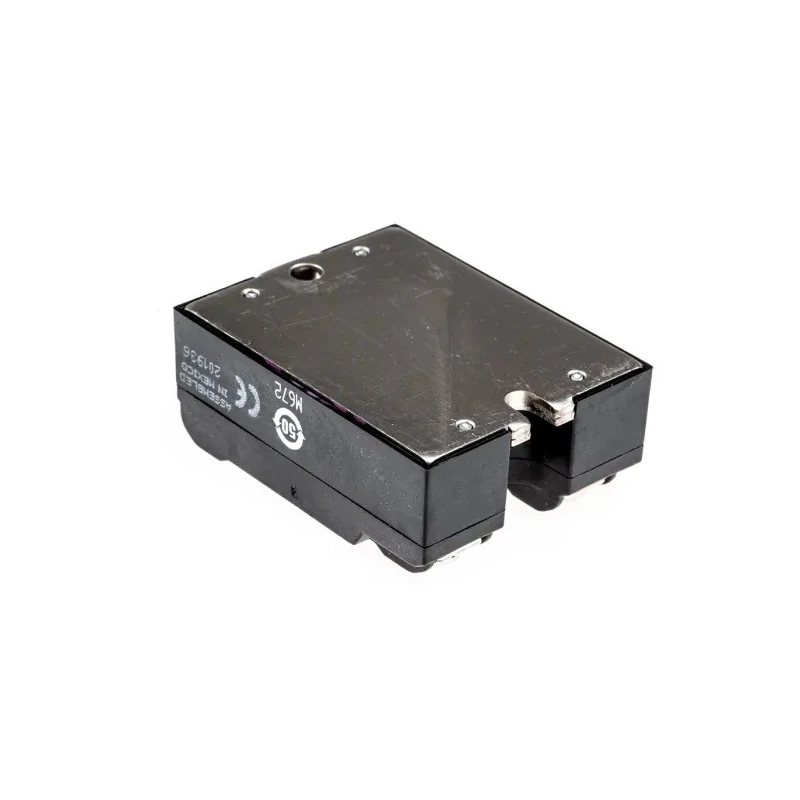

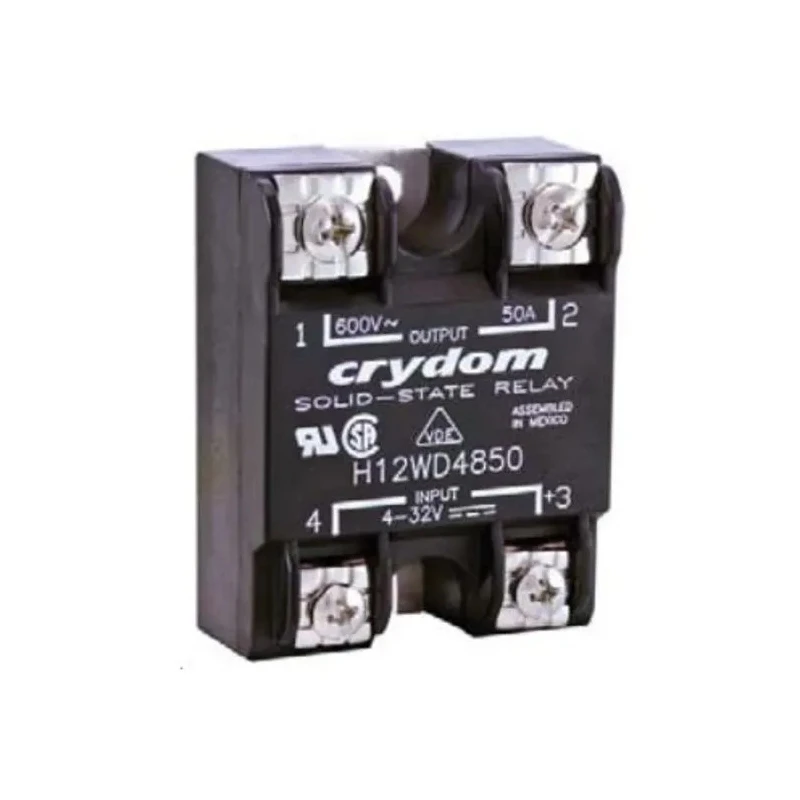

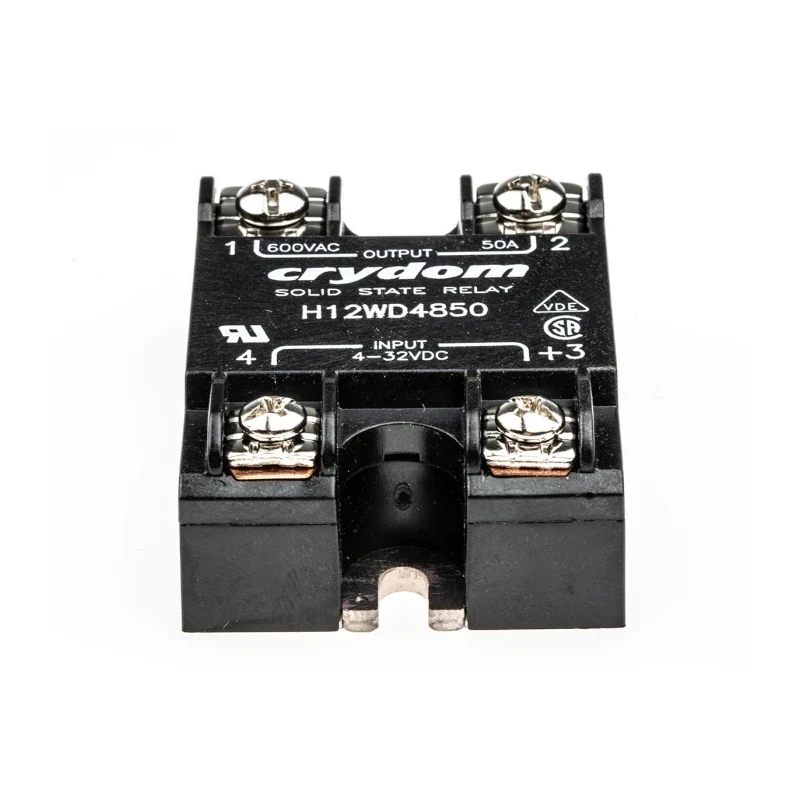

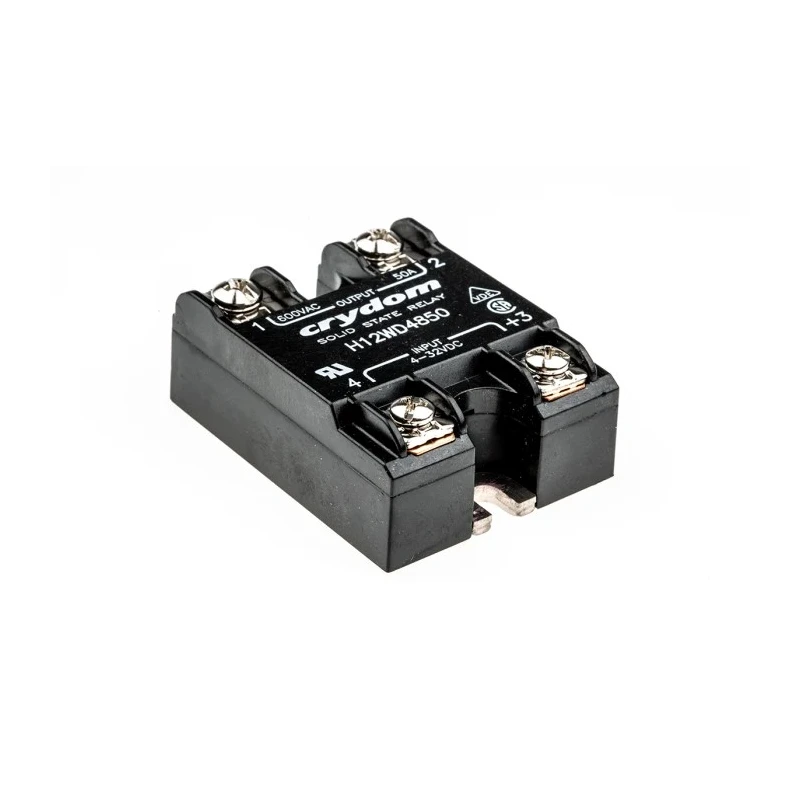

Crydom H12 Series Solid State Relay Panel Mount 50 A Load 660 V AC Load 32 V Control H12WD4850
Specifications
| Country of Origin | China |
|---|---|
| Brand | Crydom |
| Height | 22.9mm |
| Length | 58.4mm |
| Model | H12WD4850 |
| IP Rating | IP20 |
| Width | 22.6mm |
| Mount Type | Panel |
| Output type | SCR |
| Series | H12 |
| Maximum Operating Temperature | 80°C |
| Capacitance | 8pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Switching Function | Zero Cross |
| Maximum Load Current | 50A |
| Standards/Approvals | RoHS, CSA, UR |
| Maximum Load Voltage | 660V ac |
| Minimum Load Voltage | 48V ac |
| Minimum Control Voltage | 4V |
| Maximum Control Voltage | 32V |
| Off State Leakage Current | 1mA |
Key Features
- The relay features a wide control voltage range from 4 V to 32 V for versatile operation.
- Panel mount type ensures stable and convenient integration into control panels.
- Housing includes anti-rotation barriers to maintain secure mounting under industrial conditions.
- Operating temperature range is from -40°C to +80°C, suitable for harsh industrial environments.
- The relay utilizes SCR output type with zero cross switching function for improved load switching performance.
- Robust aluminium baseplate provides resistance against impact and corrosion.
- Includes screw terminal type connections for reliable wire attachment.
- Maintains low off-state leakage current of 1 mA for energy efficiency.
Product Description
Crydom H12WD4850 Solid State Relay is a high-performance panel mount relay designed for industrial electrical circuits requiring reliable switching of heavy-duty loads with a maximum current of 50 A and AC load voltage up to 660 V. It offers a broad control voltage range from 4 V to 32 V and operates within a wide temperature range from -40°C to +80°C, ensuring durability in harsh environments.
The device's housing incorporates anti-rotation barriers, providing stable mounting essential for industrial panel integration. The rugged aluminium baseplate resists impact and corrosion, enhancing longevity and performance stability. The zero cross switching function minimizes electrical noise and surges, protecting connected equipment.
This SCR-based relay features screw terminals for secure wiring and maintains a low off-state leakage current of 1 mA, contributing to overall system efficiency. The relay complies with key international standards including RoHS, CSA, and UR, demonstrating safety and environmental adherence.
Compactly sized with dimensions of 22.9 mm in height, 22.6 mm in width, and 58.4 mm in length, it fits efficiently in most control panel arrangements. The Crydom H12 Series reliability is reflected in its MTBF rate, ensuring long-lasting operation in demanding industrial, manufacturing, HVAC, and automation control applications.
The relay supports AC load voltages from 48 V to 660 V, making it versatile across a wide range of industrial requirements. The panel mount design simplifies installation and replacement processes in control systems. Ideal for use in industrial automation, manufacturing controls, HVAC systems, and power management applications.
Designed to provide silent operation without mechanical wear due to the absence of physical contacts. Offers reliable switching performance with minimal electrical noise and high durability under continuous operation.
Choose the Crydom H12WD4850 Solid State Relay for dependable and efficient control of your electrical loads. Explore more products from Crydom and related Solid State Relays in our Electronics & Electricals category to find solutions tailored to your industrial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this model is 50 A.
It features a control voltage range from 4 V to 32 V.
This relay operates within a temperature range of -40°C to +80°C.
It utilizes an SCR output type with a zero cross switching function.
The dimensions are 22.9 mm in height, 22.6 mm in width, and 58.4 mm in length.
The off-state leakage current is 1 mA.
It includes screw terminal type connections for secure wiring.
It complies with RoHS, CSA, and UR standards.
This model is designed for panel mounting, ensuring stable integration into control panels.
The minimum load voltage is 48 V AC.
It features a robust aluminium baseplate that resists impact and corrosion.
It is suitable for industrial automation, manufacturing controls, HVAC systems, and power management applications.
