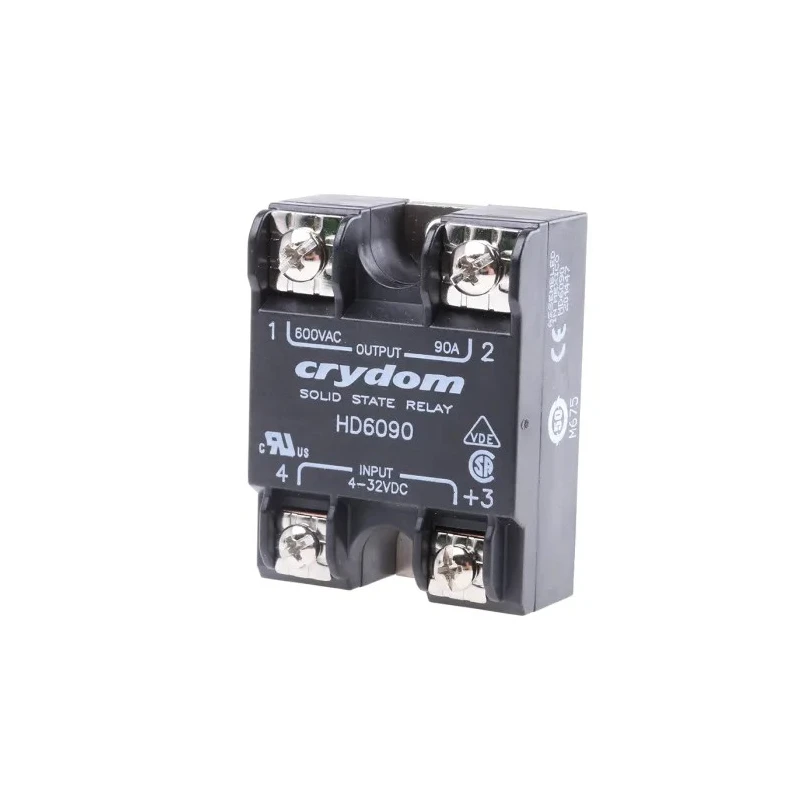

Crydom HD Series Solid State Relay Panel Mount 90A Load 660V AC Load 32V Control HD6090
Specifications
| Country of Origin | India |
|---|---|
| Brand | Crydom |
| Height | 23mm |
| Length | 58.4mm |
| Model | HD6090 |
| IP Rating | IP20 |
| Width | 22.6mm |
| Mount Type | Panel |
| Output type | SCR |
| Series | HD |
| Maximum Operating Temperature | 80°C |
| Capacitance | 8pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Switching Function | Zero Cross |
| Maximum Load Current | 90A |
| Standards/Approvals | UR, CSA, RoHS |
| Maximum Load Voltage | 660V ac |
| Minimum Load Voltage | 48V ac |
| Minimum Control Voltage | 4V |
| Maximum Control Voltage | 32V |
| Off State Leakage Current | 1mA |
Key Features
- Panel mount solid state relay designed for heavy industrial loads.
- Supports a maximum load current of 90 Amps and load voltage up to 660V AC.
- Operates with control voltages ranging from 4V to 32V.
- Equipped with screw terminals and anti-rotation barriers for secure installation.
- Features zero cross switching to minimize electrical noise.
- Robust design using Direct Bond Copper (DBC) technology enhances thermal performance.
- Built to operate reliably from -40°C to 80°C ambient temperatures.
- Complies with UR, CSA, and RoHS standards ensuring safety and environmental compliance.
Product Description
Crydom HD6090 Solid State Relay is a high-performance panel mount switch designed for industrial and automation applications requiring reliable AC load control. This model supports a maximum load current of 90A and a load voltage of up to 660V AC, making it suitable for heavy electrical loads.
The relay features robust SCR output technology and zero cross switching function, which reduces electrical noise and protects connected equipment during turn-on. It supports a flexible control voltage range from 4V minimum to 32V maximum, with screw terminal connections for secure wiring.
Manufactured using advanced Direct Bond Copper (DBC) substrate technology, the HD Series relays provide superior thermal performance ensuring long-term reliability in demanding industrial environments. Anti-rotation barriers prevent relay rotation during installation and use.
With an IP20 ingress protection rating, this relay is suitable for panel mounting applications in electrical control panels and automation systems. It is compliant with UL, CSA, VDE approvals, and certified RoHS, supporting international safety and environmental standards.
Panel mount solid state relay for heavy industrial loads. 90A maximum load current and 660V AC load voltage rating. Control voltage from 4V to 32V with screw terminal connections. Zero cross switching for reduced electrical noise.
Advanced thermal performance with Direct Bond Copper technology. Operating temperature range between -40°C and 80°C. Compliant with UR, CSA, and RoHS standards.
This Crydom HD6090 relay is ideal for industrial automation, manufacturing process control, HVAC systems, and other commercial electrical control applications. It enables efficient and reliable switching of high-power AC loads with extended service life.
Explore EnvMart for a wide range of Solid State Relays and industrial automation components to support your project requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this relay is 90 Amps.
It supports a load voltage of up to 660V AC.
This model operates with control voltages ranging from 4V to 32V.
The relay has an IP20 ingress protection rating.

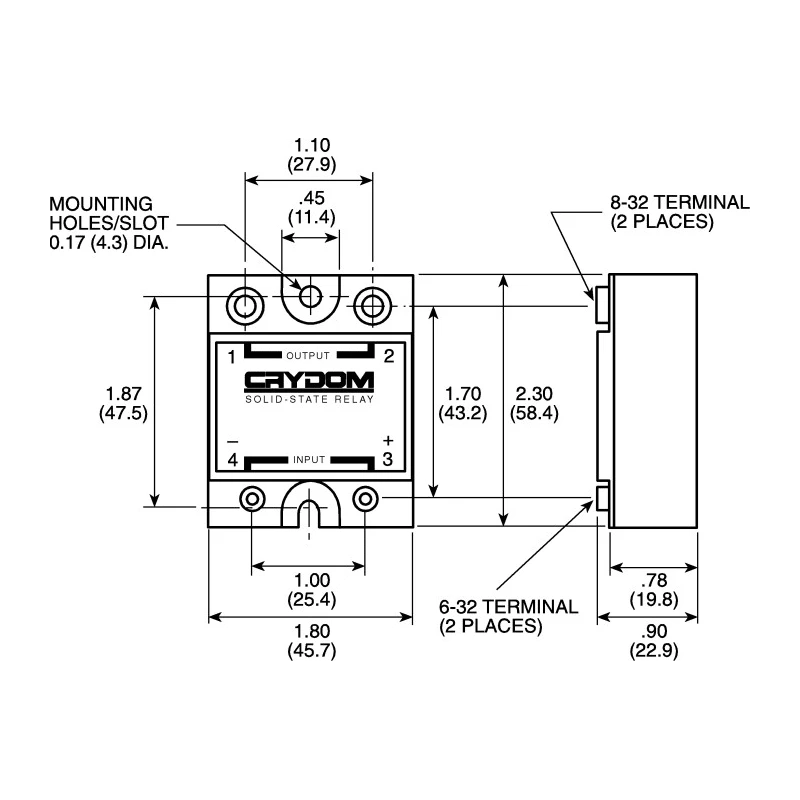

The dimensions are 58.4mm in length, 22.6mm in width, and 23mm in height.
It operates reliably within a temperature range of -40°C to 80°C.
It is equipped with screw terminals for secure wiring connections.
The relay features a zero cross switching function to minimize electrical noise.
It complies with UR, CSA, and RoHS standards.
The output type is SCR (Silicon Controlled Rectifier).
The off state leakage current is 1mA.
It utilizes Direct Bond Copper (DBC) technology for superior thermal performance.
