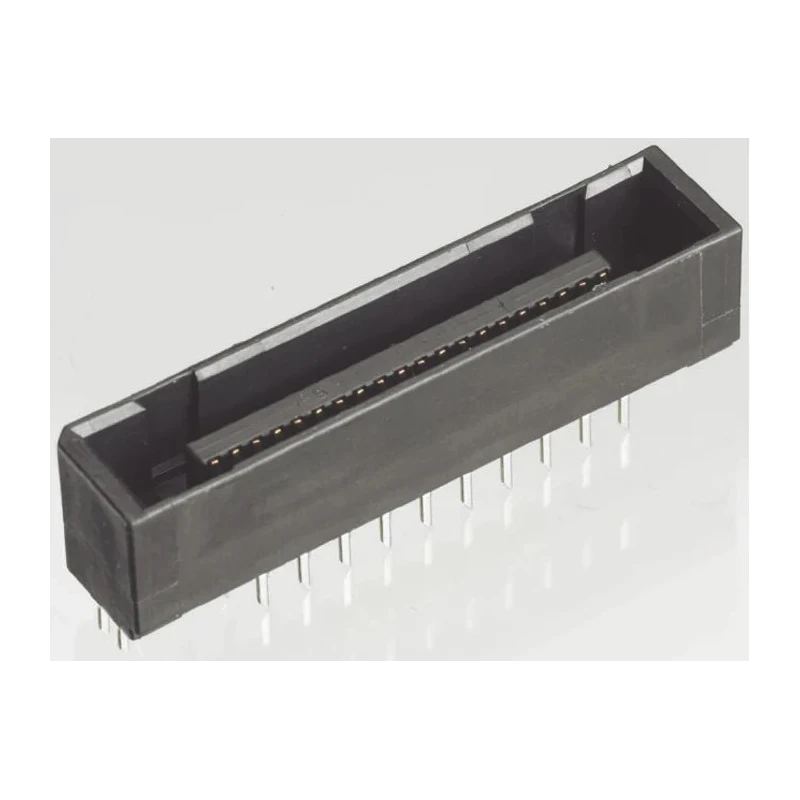

JAE TX25 Series Straight Through Hole PCB Header, 100 Contacts, 2.54 mm Pitch, 2 Rows, Shrouded TX25

JAE TX25 Series Straight Through Hole PCB Header with model TX25 is engineered for high reliability in board-to-board electronic applications. Featuring 100 contacts arranged in 2 rows at a 2.54 mm pitch, this connector ensures compact and efficient PCB connections. The straight orientation and shrouded housing protect contacts and provide polarized alignment to prevent misconnection.

Contacts are manufactured from copper alloy and plated with gold to deliver low resistance and long-term durability. The housing material, polybutylene terephthalate, offers mechanical robustness and resistance to environmental factors. This connector system supports up to 1 ampere current and a voltage rating of 500 volts, suitable for many electronic circuits.

The connector accommodates a wide operating temperature range from -40°C to 80°C, making it versatile for industrial, manufacturing, and electronic assembly environments. The solder termination type provides secure and lasting PCB attachment, enhancing production reliability.

The design features a long electrical engagement length and non-pin type contacts to withstand mating and unmating twisting forces, ensuring a stable and dependable electrical connection with an audible click action to confirm proper connection.

This TX25 Series PCB Header is ideal for rack and panel connector applications and is widely used in industrial electronics, power connectors assemblies, and electronic manufacturing. The shrouded design offers additional protection to the contacts while simplifying alignment during assembly.

Designed for board-to-board connections with through hole mounting. Contacts made of copper alloy plated with gold for reliable conductivity. Housing constructed from durable polybutylene terephthalate for stability. Supports current rating of 1A and voltage up to 500V.

Shrouded housing ensures connector protection and polarized alignment. Suitable for operating temperature range from -40°C to 80°C. Termination type is solder for secure PCB attachment. Two rows of contacts provide compact doubling of connection points.

Stable connection with long electrical engagement and reliable click action design. Explore the comprehensive selection of PCB connectors and related components at EnvMart for high-quality electronic assembly solutions.
