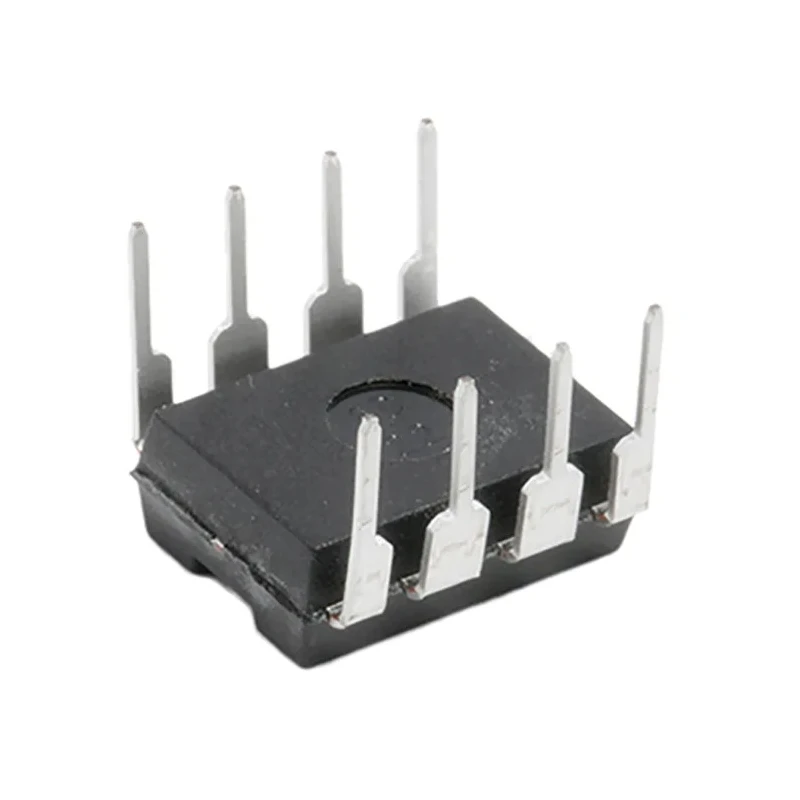

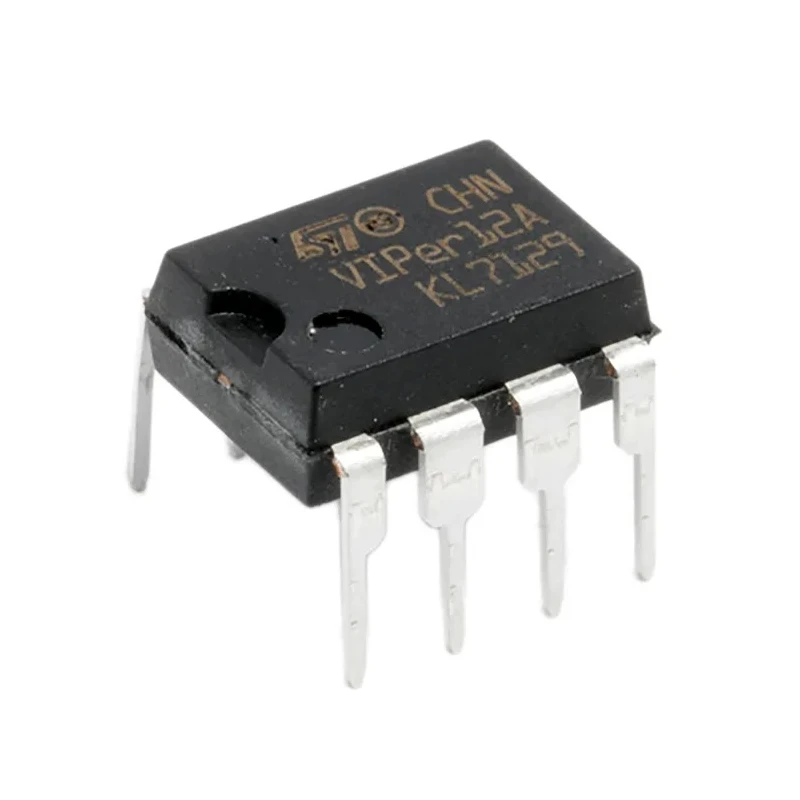

STMicroelectronics 8-Pin PDIP PWM Controller, 66 kHz Switching Frequency, 5V Supply, Through Hole Assembly VIPER12ADIP-E
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 2.92mm |
| Length | 9.02mm |
| Model | VIPER12ADIP-E |
| Width | 6.1mm |
| Mount Type | Through Hole |
| Maximum Duty Cycle | 16% |
| Series | VIPER12A-E |
| Output Current | 480mA |
| Maximum Operating Temperature | 150°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Maximum Switching Frequency | 66kHz |
| Standards/Approvals | ECOPACK |
| Pin Count | 8 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | 0mV |
| Supply Current | 5mA |
| PWM Controller Type | Current Mode |
Key Features
- Features a current mode PWM controller integrated with a 700V vertical power MOSFET.
- Supports a maximum switching frequency of 66 kHz for efficient power control.
- Design includes an output current of 480 mA and a 16% maximum duty cycle.
- Operates within a temperature range from -40°C to 150°C ensuring reliability in harsh environments.
- Mounting type is through-hole in an 8-pin PDIP package for easy assembly.
- Complies with ECOPACK standards for environmental safety.
- Suitable for offline power supply applications including primary or secondary side regulation loops.
- Series designation is VIPER12A-E, without automotive standard certification.
Product Description
STMicroelectronics VIPER12ADIP-E PWM Controller is a high-voltage off-line converter IC, engineered for sophisticated power management in electronic designs. It integrates a PWM controller and a vertical power MOSFET designed for fixed-frequency operation at 66 kHz, supporting a 5V maximum supply voltage and 8-pin PDIP through-hole assembly.
This device enables efficient and reliable power conversion in AC/DC converter systems, delivering up to 480 mA output current and operating at a maximum duty cycle of 16%. It endures a broad operating temperature range from -40°C to 150°C, suitable for industrial and commercial environments requiring durable components.
Measuring 9.02 mm in length, 6.1 mm in width, and 2.92 mm in height, the compact profile supports dense PCB layouts and ease of manufacturing. The controller complies with ECOPACK environmental standards, minimizing ecological impact.
Potential applications include offline power supplies with regulation loops either on the primary or secondary side, making it versatile for various power management solutions in industrial machinery, consumer electronics, and automation systems.
Current mode PWM controller integrated with a 700V vertical power MOSFET. Maximum switching frequency of 66 kHz for precise power regulation. Through-hole mounting with 8-pin PDIP package design. Operates efficiently under temperature extremes ranging from -40°C to 150°C.
ECOPACK compliant ensuring environmental safety. Supports maximum supply voltage of 5V and maximum output current of 480 mA. Maximum duty cycle limited to 16% for controlled power delivery. Ideal for AC/DC offline power converter circuits in industrial environments.
Explore more Power Management ICs and components at EnvMart for your industrial and electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output current of this model is 480 mA.
It supports a maximum switching frequency of 66 kHz.
This unit operates within a temperature range from -40°C to 150°C.
It features a through-hole mounting type in an 8-pin PDIP package.
The maximum duty cycle is limited to 16%.
It measures 9.02 mm in length, 6.1 mm in width, and 2.92 mm in height.
The maximum supply voltage is 5V, with a minimum supply voltage of 0 mV.
It complies with ECOPACK standards for environmental safety.
It is a current mode PWM controller integrated with a vertical power MOSFET.
It is suitable for offline power supply applications, including primary or secondary side regulation loops.
The country of origin is India.
The supply current is 5 mA.
