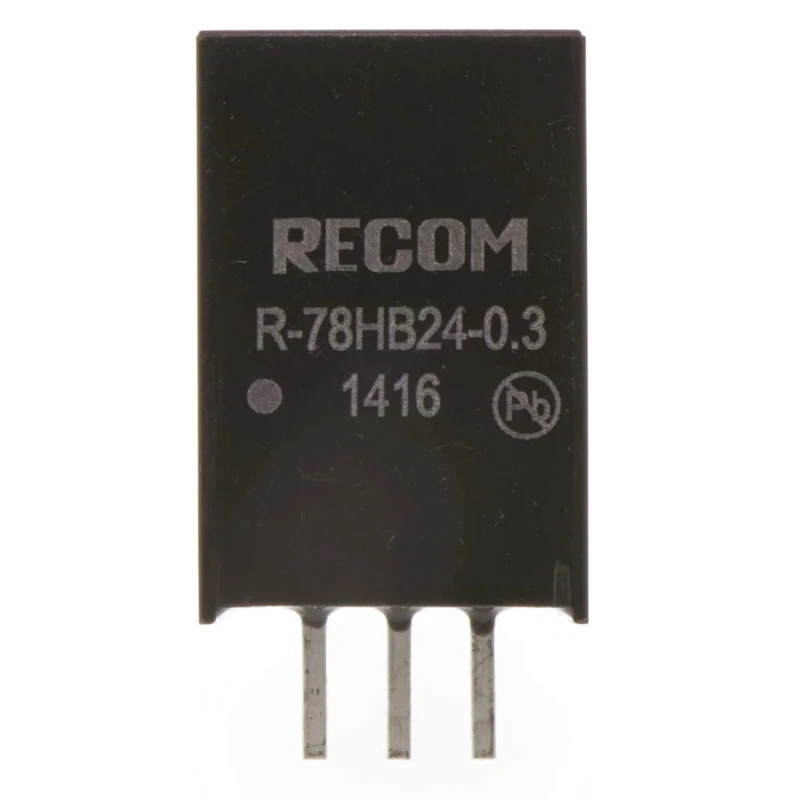

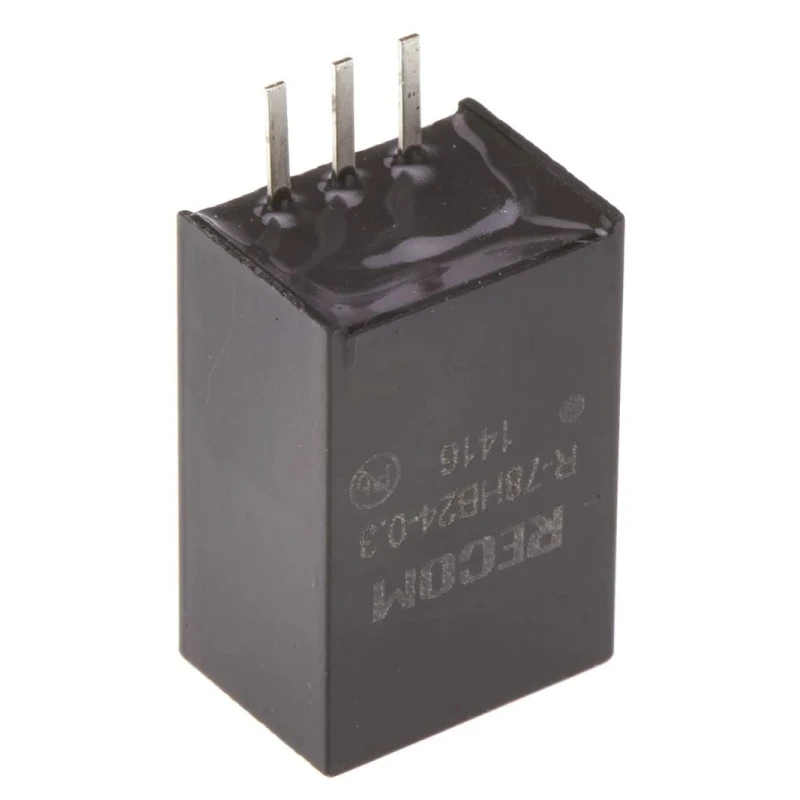

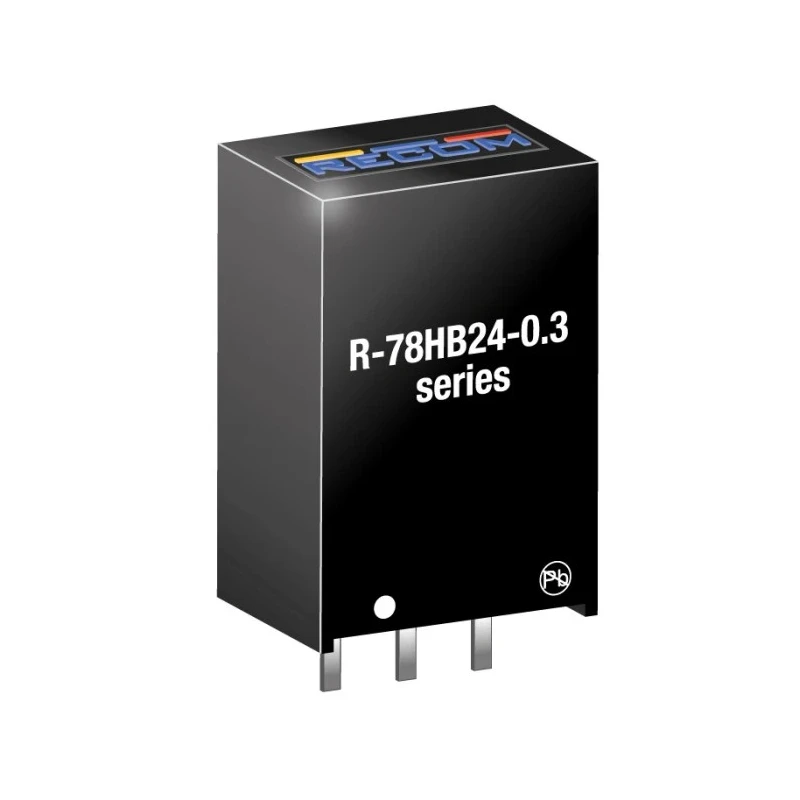

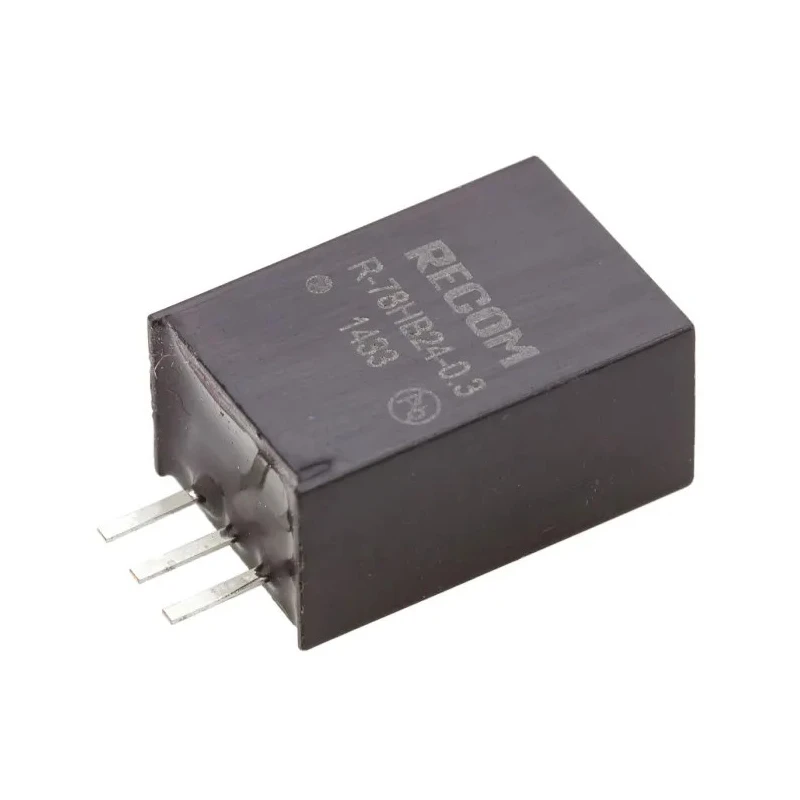

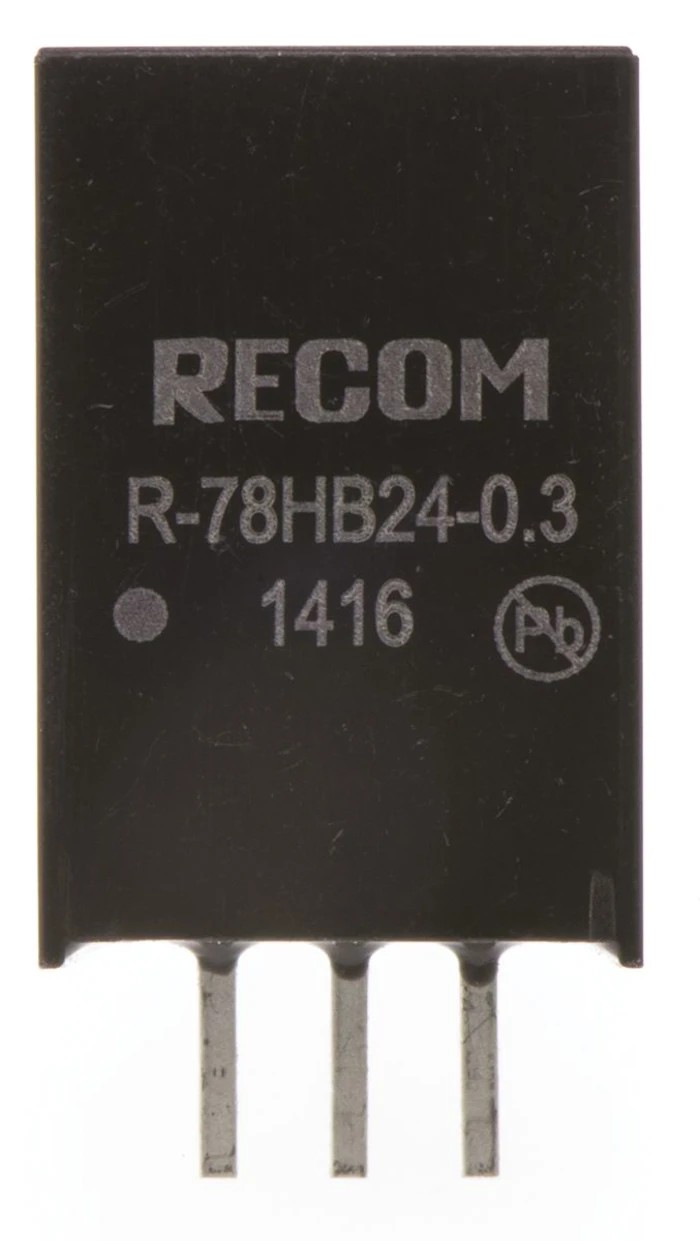

Recom Through Hole Switching Regulator 24V DC Output Voltage 72V DC Max Input, 300mA Output Current, 8W Power R-78HB24-0.3
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / Switching Regulators Recom Switching Regulator, Through Hole, 24V d |
| Brand | Recom |
| Power | 8W |
| Efficiency | 92% |
| Length | 11.5mm |
| Model | R-78HB24-0.3 |
| Depth | 17.5mm |
| Gross Weight | 4g |
| Width | 8.5mm |
| Mount Type | Through Hole |
| Series | R-78HB |
| Output Current | 300mA |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Load Regulation | ±0.6 % |
| Minimum Operating Temperature | -40°C |
| MTBF | 7395000h |
| Number of outputs | 1 |
| Ripple and Noise | 20mV Pk-Pk |
| Maximum Input Voltage | 72V dc |
| Line Regulation | ±1 % |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 36V |
| Output Voltage 1 | 24V dc |
Key Features
- Features a broad operating temperature range from -40°C to +85°C ensuring performance in harsh environments.
- Includes an internal 1μF capacitor input filter for improved stability and noise reduction.
- High efficiency of 92% reduces energy consumption and heat generation.
- Designed with non-conductive plastic casing for safe handling and circuit protection.
- Mean time between failures (MTBF) of over 7.3 million hours for reliable long-term operation.

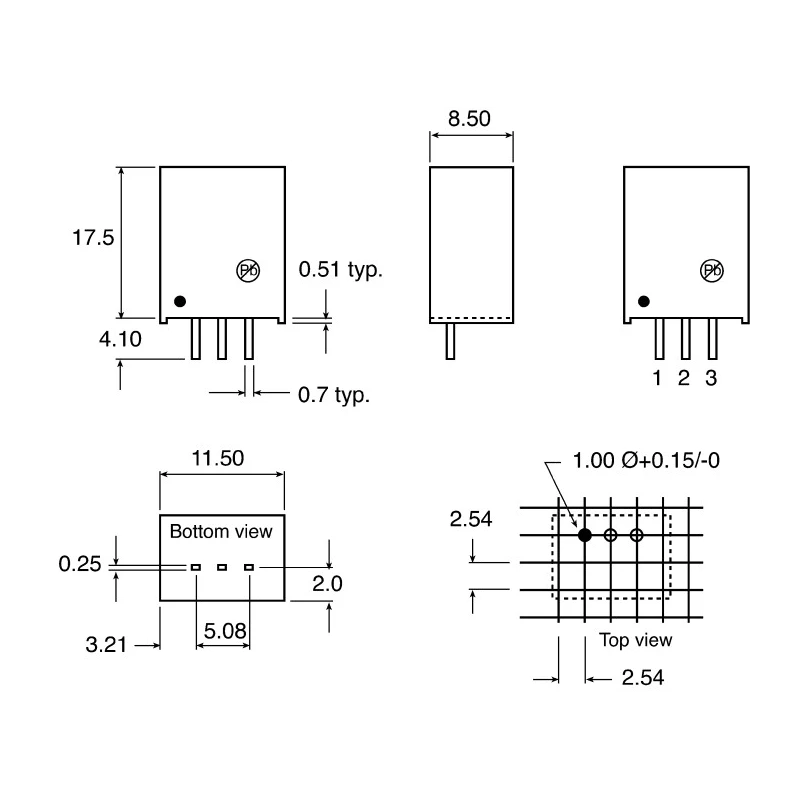

- Compact SIP package measuring 11.5mm length, 8.5mm width, and 17.5mm depth.
- Short circuit protection safeguards device and connected electronics from damage.
- Suitable for consumer electronics, aerospace, telecommunications, and automotive applications.
Product Description
Recom R-78HB24-0.3 is a through hole switching regulator designed to convert input voltages between 36V and 72V DC into a stable 24V DC output at 300mA current, delivering 8W of power with up to 92% efficiency. This compact and efficient power supply solution fits in a SIP package and operates reliably over a wide temperature range from -40°C to +85°C.
Equipped with an internal 1μF input capacitor filter, it minimizes ripple and noise to 20mV peak-to-peak, ensuring clean power delivery to sensitive electronic components. The non-conductive plastic enclosure provides safe handling and circuit protection, while built-in short circuit protection safeguards connected electronics against faults.
With a mean time between failures (MTBF) exceeding 7.3 million hours, the R-78HB24-0.3 offers exceptional reliability for demanding industrial and commercial applications such as consumer electronics, aerospace equipment, telecommunications systems, and automotive design.
The regulator is an efficient replacement for traditional LM78xx linear regulators, increasing energy savings and eliminating the need for bulky heat sinks or external cooling devices. Its through hole mount style ensures straightforward integration on printed circuit boards.
Broad operating temperature range from -40°C to +85°C. Internal 1μF capacitor input filter for noise reduction. High efficiency of 92% reduces power loss and heat. Non-conductive plastic casing ensures safety and durability.
MTBF of over 7.3 million hours for reliable performance. Compact SIP package with dimensions 11.5mm x 8.5mm x 17.5mm. Short circuit protection enhances device safety. Ideal for use in aerospace, telecom, automotive, and consumer electronics.
This Switching Regulator is a versatile and energy-efficient solution suitable for demanding industrial, laboratory, and commercial power supply designs. Explore more power management products from Recom and other top brands on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The R-78HB24-0.3 provides a stable output voltage of 24V DC with an output current of 300mA, delivering a total power of 8W.
This switching regulator can accept a maximum input voltage of 72V DC.
It features a high efficiency rating of 92%, which helps reduce energy consumption and heat generation.
The compact SIP package measures 11.5mm in length, 8.5mm in width, and 17.5mm in depth.
This model operates reliably over a broad temperature range from -40°C to +85°C.
It is designed for through hole mounting, making it easy to integrate into printed circuit boards.
The R-78HB24-0.3 includes short circuit protection to safeguard both the device and connected electronics from damage.
It minimizes ripple and noise to 20mV peak-to-peak, ensuring clean power delivery to sensitive components.
This model is compliant with RoHS standards, ensuring it meets environmental regulations.
It is suitable for various applications including consumer electronics, aerospace, telecommunications, and automotive designs.
The load regulation for this switching regulator is ±0.6%, ensuring stable output under varying load conditions.
