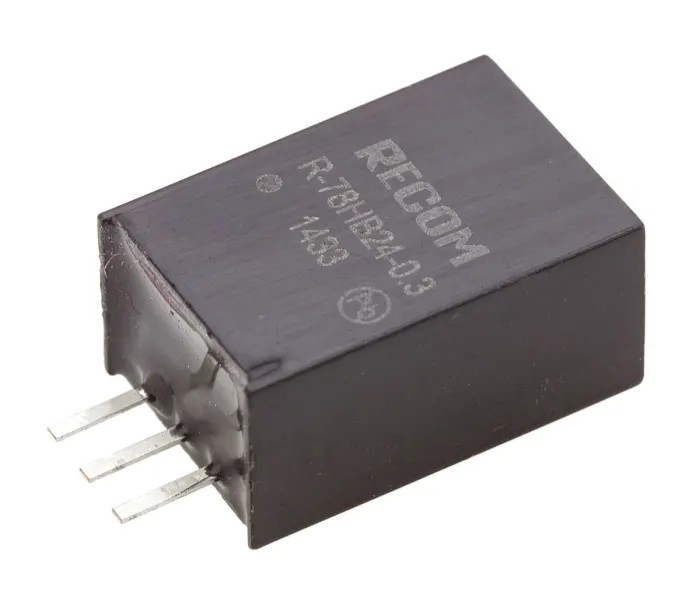

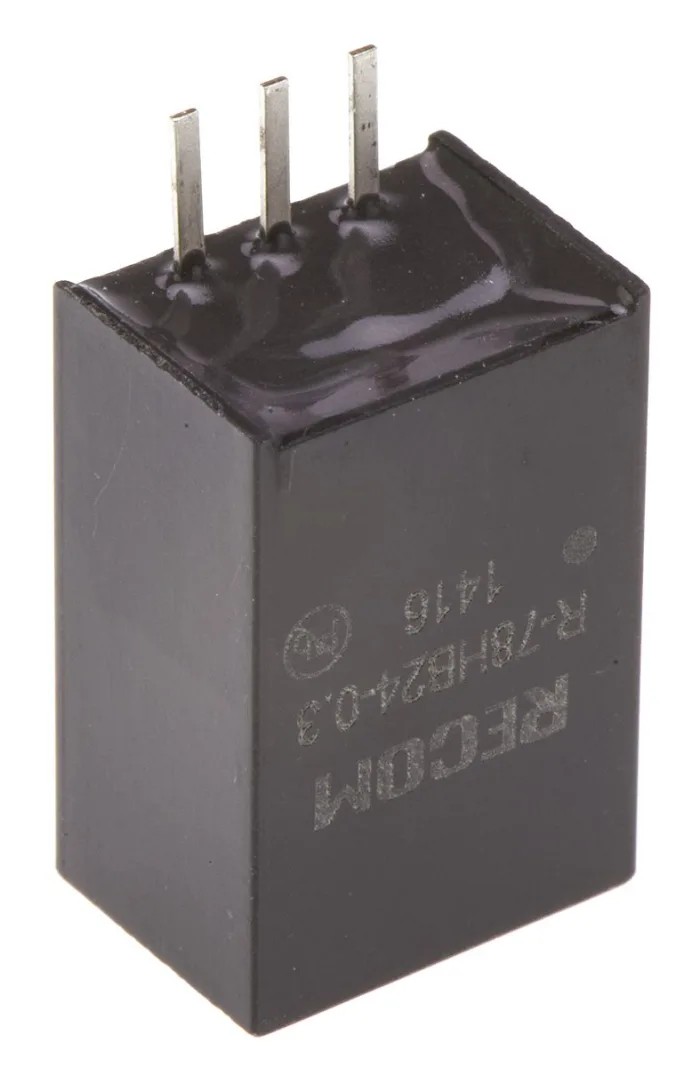

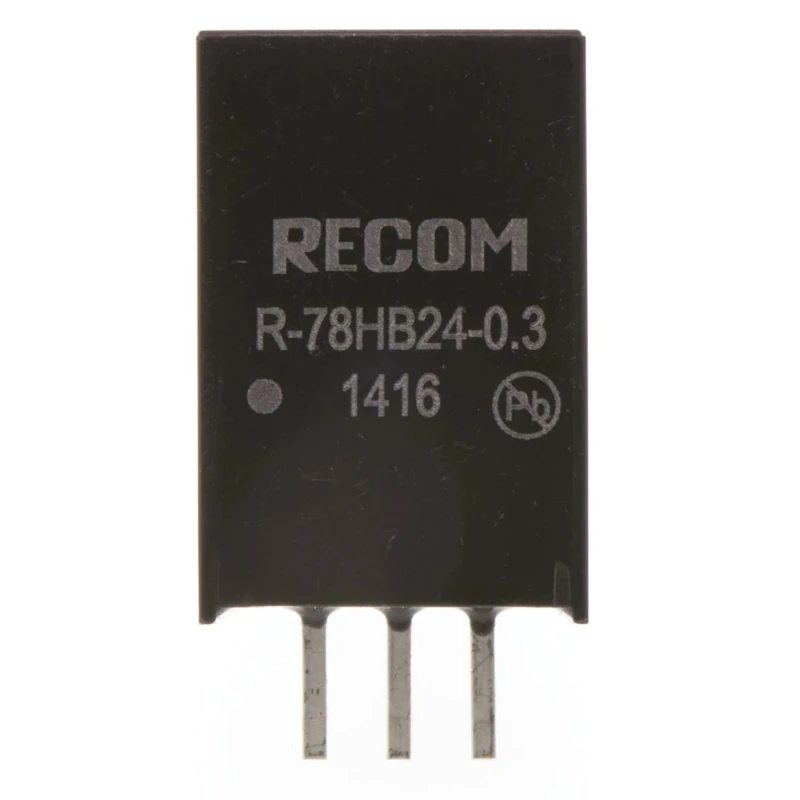

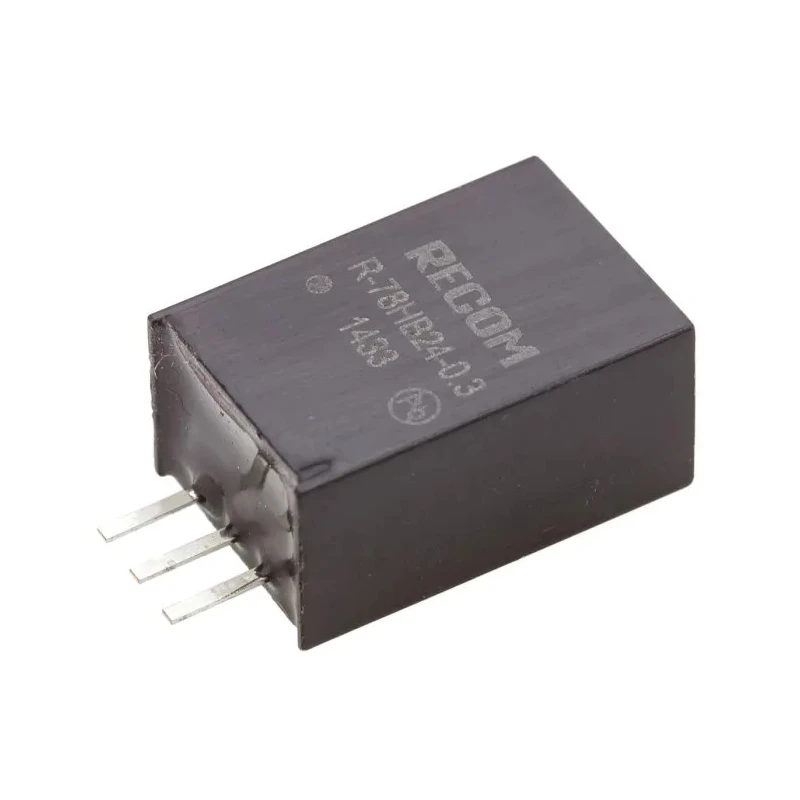

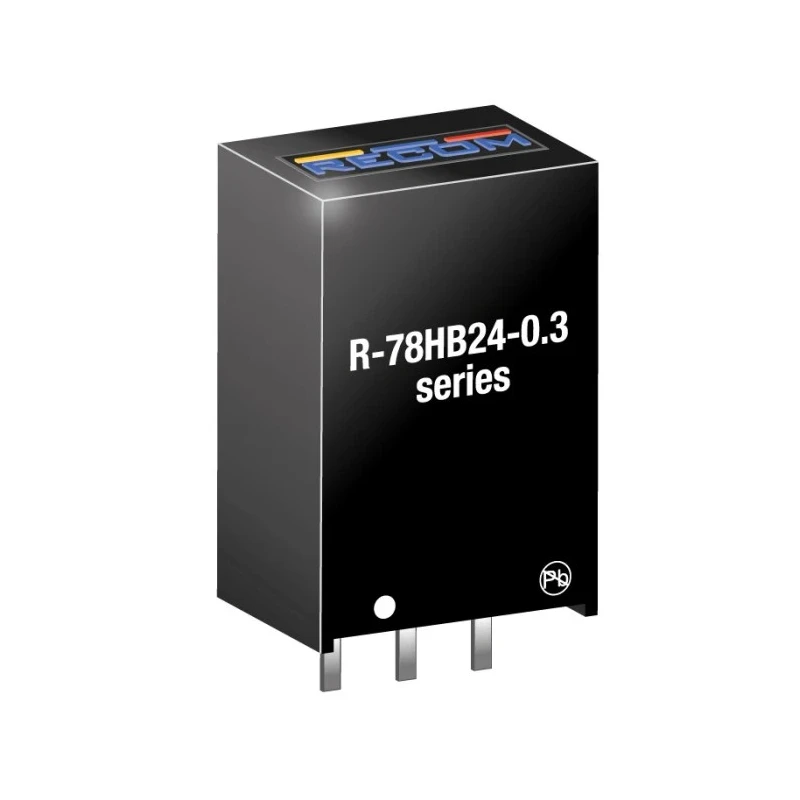

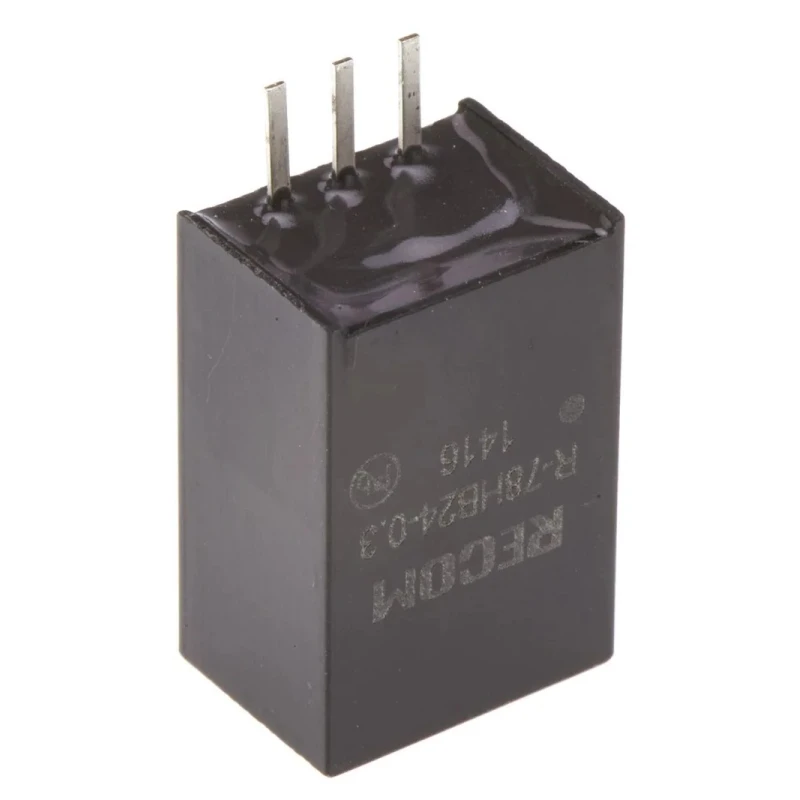

Recom Switching Regulator Through Hole 24V DC Output, 72V DC Max Input, 300mA, 8W Power R-78HB24-0.3

Recom R-78HB24-0.3 switching regulator is a high-efficiency through-hole power supply module designed to convert input voltages between 36 and 72 V DC into a stable 24 V DC output at a current of 300 mA with 8 W power output and 92% efficiency.

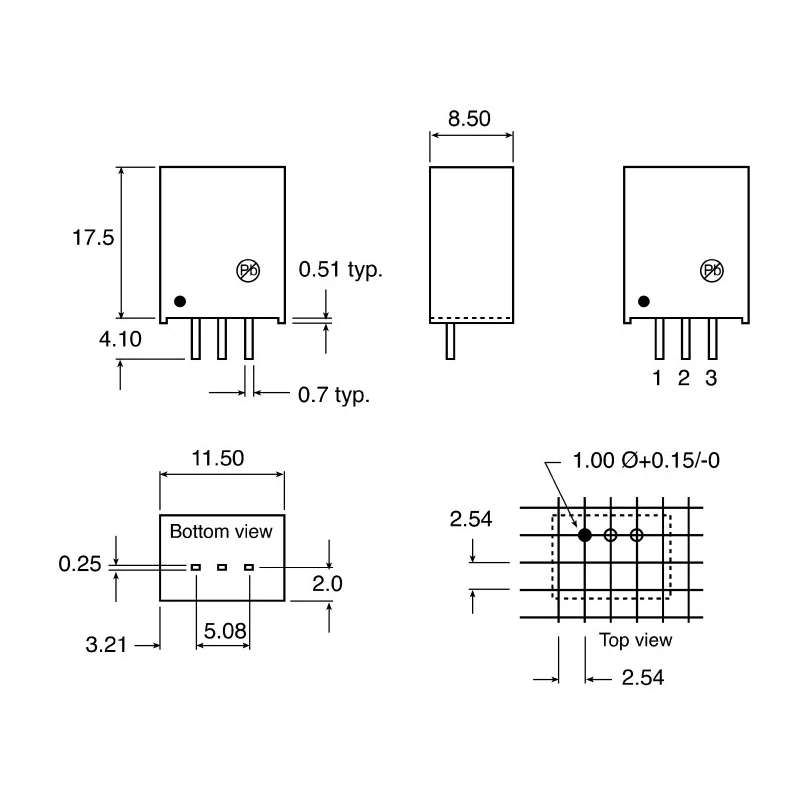

The device comes in a compact SIP package measuring 11.5 mm in length, 8.5 mm in width, and 17.5 mm in depth. It supports a broad operating temperature range of -40°C to +85°C, making it suitable for demanding industrial and electronic environments.

This switching regulator features advanced performance metrics including low ripple and noise of 20 mV peak-to-peak, line regulation of ±1%, and load regulation of ±0.6%, which ensure stable voltage supply critical for sensitive applications. It incorporates a 1μF internal input capacitor filter and uses a non-conductive plastic casing, providing electrical isolation and safety during handling.

The product conforms to RoHS standards, ensuring it is environmentally compliant and safe for use. It offers an impressive mean time between failures (MTBF) of over 7.3 million hours, demonstrating its reliability for long-term usage.

This regulator is ideal for use in consumer electronics, aerospace equipment, telecommunication systems, and automotive design, delivering efficient voltage regulation while reducing power consumption compared to traditional linear regulators.

Furthermore, this model can replace older LM78xx-series linear regulators to enhance circuit energy efficiency without requiring external cooling devices. This through-hole switching regulator delivers regulated 24 V DC output at 300 mA current.

Broad input voltage range from 36 V DC to 72 V DC offers flexibility for various power sources. High efficiency of 92% minimizes heat dissipation and energy loss. Low ripple and noise output signal of 20 mV pk-pk ensures clean power supply.

Wide operating temperature range from -40°C to +85°C supports diverse industrial applications. Compact SIP package and plastic casing provide safety and ease of installation. Compliant with RoHS environmental standards. Long-term reliability with MTBF of 7,395,000 hours.

Suitable for consumer electronics, aerospace, telecom, and automotive systems. Direct replacement for LM78xx linear regulators improves efficiency. Explore the full range of Switching Regulators at EnvMart for reliable power management solutions in your industrial and electronic systems.
