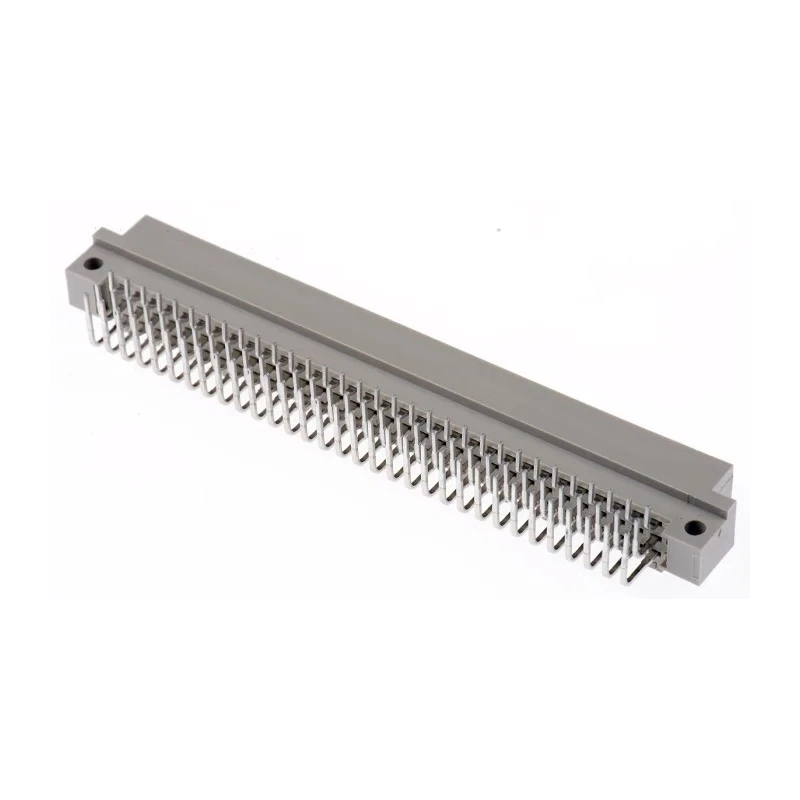

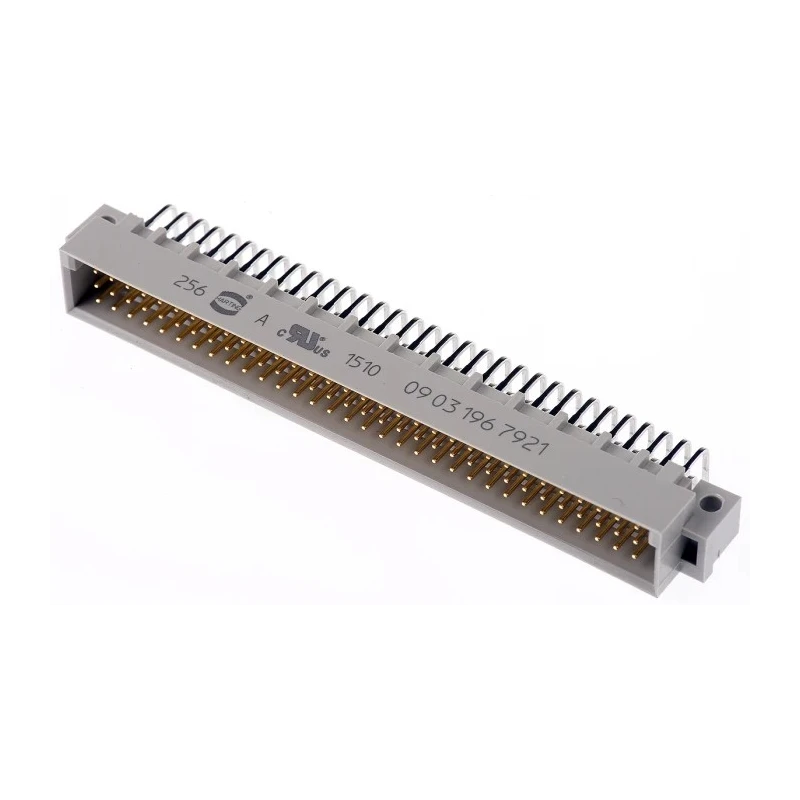

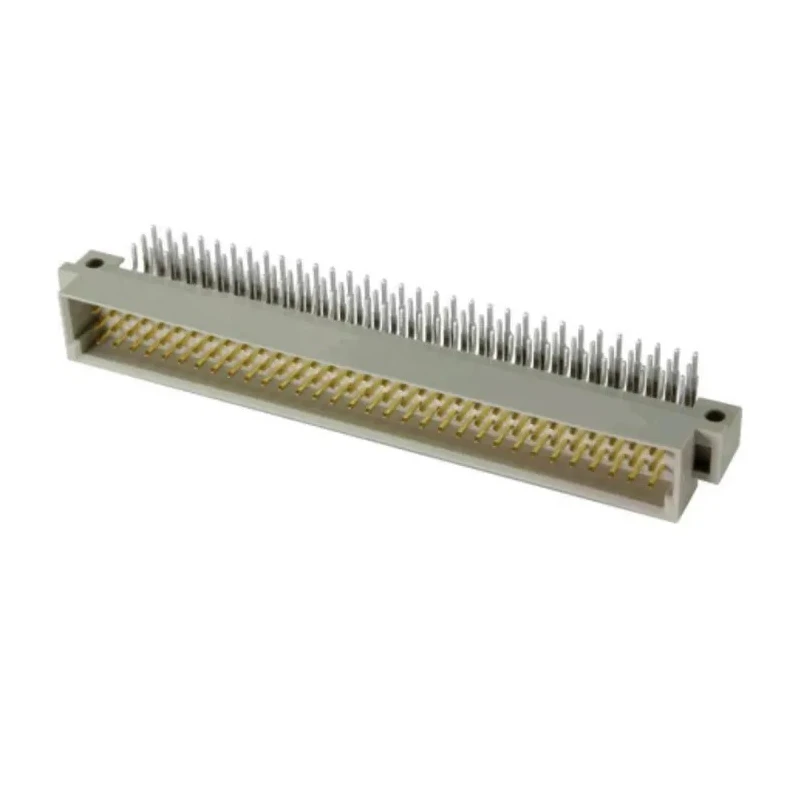

HARTING DIN 41612 Connector 96 Way 2.54 mm Pitch Through Hole Solder Termination Type C/3 Class C3 3 Row Male 09031967921
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | HARTING |
| Orientation | Right Angle |
| Current | 2A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | DIN 41612 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | C/3 |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 3 |
| Pitch | 2.54mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 96 |
| Contact Gender | Male |
| Connector Gender | Male |
| Maximum Contact Resistance | 20mΩ |
| Row Loading | A/B/C |
Key Features
- The connector features 96 contacts arranged in three rows for versatile connectivity.
- Right angle orientation optimizes circuit layout in compact spaces.
- Gold plating over nickel on copper alloy contacts improves conductivity and corrosion resistance.
- Durable polybutylene terephthalate housing withstands harsh environments.
- Class C3 solder termination ensures strong mechanical bonding to PCBs.
- Maximum contact resistance is low at 20 milliohms for efficient signal transfer.
- The connector operates reliably across a broad temperature range from -55°C to +125°C.
- Designed for automation, electronics, electrical machinery, and mechanical interfacing applications.
Product Description
HARTING 09031967921 DIN 41612 Connector is a robust industrial-grade male electrical connector featuring 96 gold-plated copper alloy contacts arranged in three rows (A/B/C) with a 2.54 mm pitch. The right angle body orientation helps efficient use of PCB space and facilitates compact circuit layouts for various electronics applications. It is engineered for through-hole solder termination using Class C3 methodology to ensure secure connections suitable for demanding industrial environments.
The connector supports a maximum current of 2 amperes and performs reliably within an operating temperature range of -55°C to 125°C, making it ideal for applications subjected to temperature extremes. Its polybutylene terephthalate housing provides high durability and resistance to mechanical and thermal stresses. Gold plating over nickel contact surfaces delivers excellent electrical conductivity and corrosion protection, maintaining long-term signal integrity.
These connectors are especially applicable in automation systems for signal distribution, electronics board-to-board connections, electrical machinery requiring rugged connectors, and mechanical interfacing applications where reliability and compact design are crucial.
Features 96 contacts organized in three rows for high-density connections. Right angle connector minimizes board height for space-saving layouts. Gold plated contacts on copper alloy ensure reliable conductivity. Thermoplastic housing offers mechanical strength and thermal stability.
Through-hole solder termination provides robust attachment to circuit boards. Operates between -55°C and +125°C for versatile industrial usage. Low maximum contact resistance of 20 milliohms guarantees efficient signals.
Conforms to DIN 41612 series connector standards for compatibility.
Manufactured in Germany, the HARTING 09031967921 connector meets stringent quality requirements for professional electronics and industrial applications. Explore more DIN 41612 Connectors and reliable electronic components on EnvMart for demanding technical solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this model is 2 amperes, making it suitable for various electronic applications.
The contacts in this connector are arranged with a pitch of 2.54 mm, which is standard for many electronic applications.
This connector operates reliably within a temperature range of -55°C to 125°C, accommodating a variety of industrial environments.
The connector features a total of 96 contacts arranged in three rows, allowing for high-density connections.
The housing of this model is made from polybutylene terephthalate, which provides mechanical strength and thermal stability.
It utilizes a solder termination type, specifically Class C3, ensuring secure connections to circuit boards.
The maximum contact resistance is low at 20 milliohms, which helps ensure efficient signal transfer.
This model features a right angle orientation, which helps optimize circuit layout in compact spaces.
The contacts are plated with gold over nickel, enhancing conductivity and corrosion resistance.
This connector is manufactured in Germany, adhering to stringent quality requirements for industrial applications.
It is designed for applications in automation, electronics, electrical machinery, and mechanical interfacing.
This model is designed for through-hole mounting, providing robust attachment to circuit boards.
