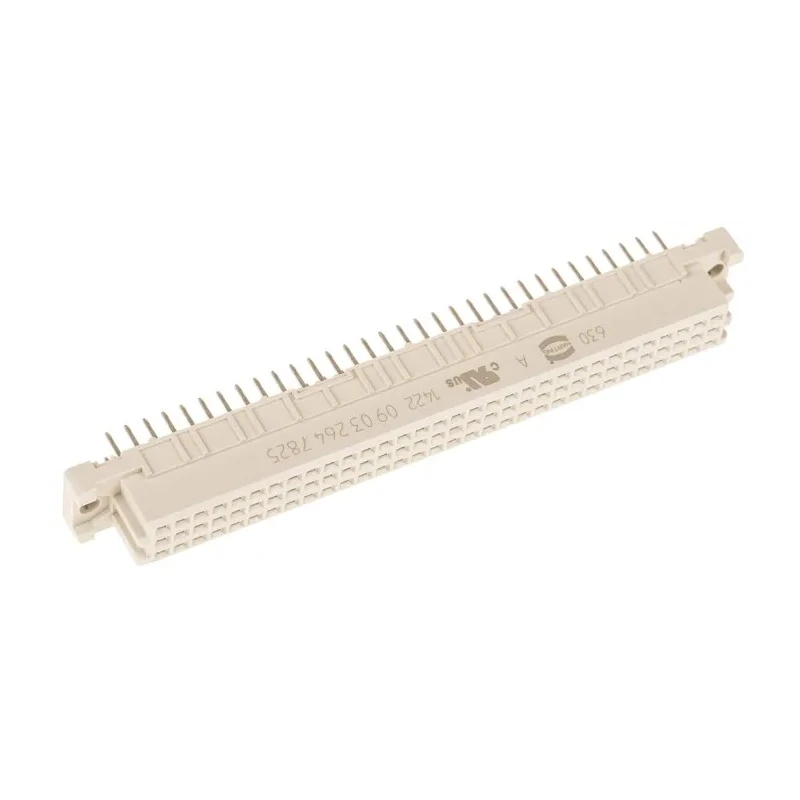

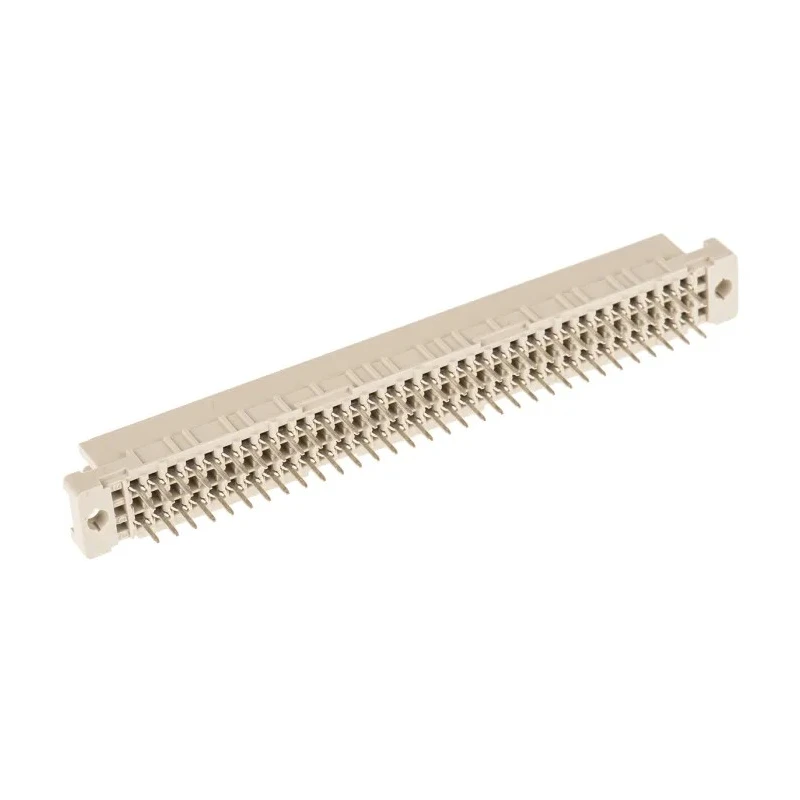

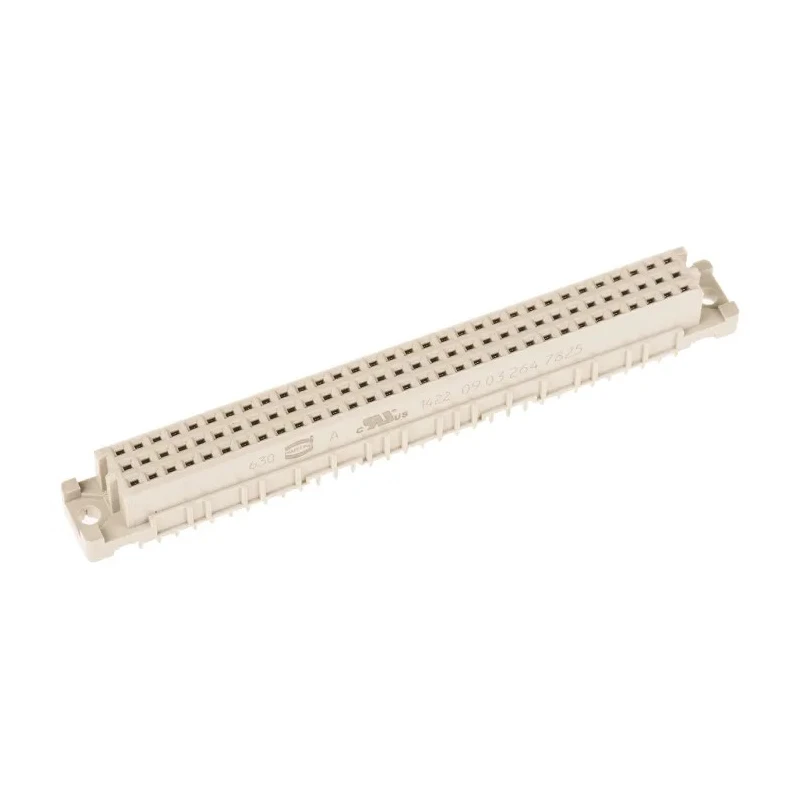

HARTING DIN 41612 64 Way 2.54 mm Pitch Type Through Hole Type C/3 Solder Class Class C3 3 Row Female Straight 09032647825

Free Delivery in India | Lowest Global Shipping Charges

HARTING DIN 41612 64 Way 2.54 mm Pitch Type Through Hole Type C/3 Solder Class Class C3 3 Row Female Straight 09032647825

Name: HARTING DIN 41612 64 Way 2.54 mm Pitch Type Through Hole Type C/3 Solder Class Class C3 3 Row Female Straight 09032647825
Brand: HARTING
SKU: 117864
Price: 20.22 USD
Availability: InStock



Category DIN 41612 Connector Brand HARTING Condition New

Specifications

Country of Origin	Germany
Brand	HARTING
Orientation	Straight
Current	2A
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Copper Alloy
Series	DIN 41612
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	C/3
Minimum Operating Temperature	-55°C
Number of Rows	3
Pitch	2.54mm
Contact Plating	Gold over Nickel
Number of Contacts	64
Contact Gender	Female
Connector Gender	Female
Maximum Contact Resistance	20mΩ
Row Loading	A/B/C

Key Features

Designed for PCB connection with robust copper alloy contacts plated with gold over nickel.
Features a polybutylene terephthalate housing for durability and electrical insulation.
Operates reliably from -55°C to 125°C, suitable for industrial environments.
Maximum contact resistance is 20 milliohms ensuring low electrical loss.
HARTING DIN 41612 connectors support all 19in Eurocard racking systems uses.
Class C3 solder specification for secure through hole mounted connections.
Compatible with all 19-inch Eurocard racking systems and backplane applications.
Manufactured in Germany to high-quality standards ensuring consistent performance.

Product Description

HARTING 09032647825 is a DIN 41612 backplane signal connector featuring 64 contacts arranged in 3 rows with a 2.54 mm pitch. This through hole, type C/3 connector offers a solder termination and class C3 solder specification for secure and reliable electrical connections. The connector’s female orientation and straight mounting provide easy integration with PCBs for industrial electronic applications.

The contacts employ a copper alloy material with gold over nickel plating, delivering excellent conductivity and corrosion resistance. The polybutylene terephthalate housing is glass fiber filled, ensuring mechanical strength and flame retardance. Operating temperatures range from -55°C to +125°C, making it suitable for harsh environments including industrial, laboratory, and manufacturing setups.

This HARTING DIN 41612 Connector is widely used for backplane and rack interconnection in electronic systems, offering a long mating cycle life and economical solution for signal transmission. It meets DIN 41612 standards and is designed for durability and reliable performance over extended service life.

Designed for PCB connection with robust copper alloy contacts plated with gold over nickel. Features a polybutylene terephthalate housing for durability and electrical insulation. Operates reliably from -55°C to 125°C, suitable for industrial environments.

Maximum contact resistance is 20 milliohms ensuring low electrical loss. Class C3 solder specification for secure through hole mounted connections. Compatible with all 19-inch Eurocard racking systems and backplane applications.

Manufactured in Germany to high-quality standards ensuring consistent performance.

This connector is suitable for applications in industrial electronics, telecommunications equipment, computing systems, and other environments where reliable backplane connectivity is essential. Discover more connectors and related components from HARTING in our extensive catalog on EnvMart.
