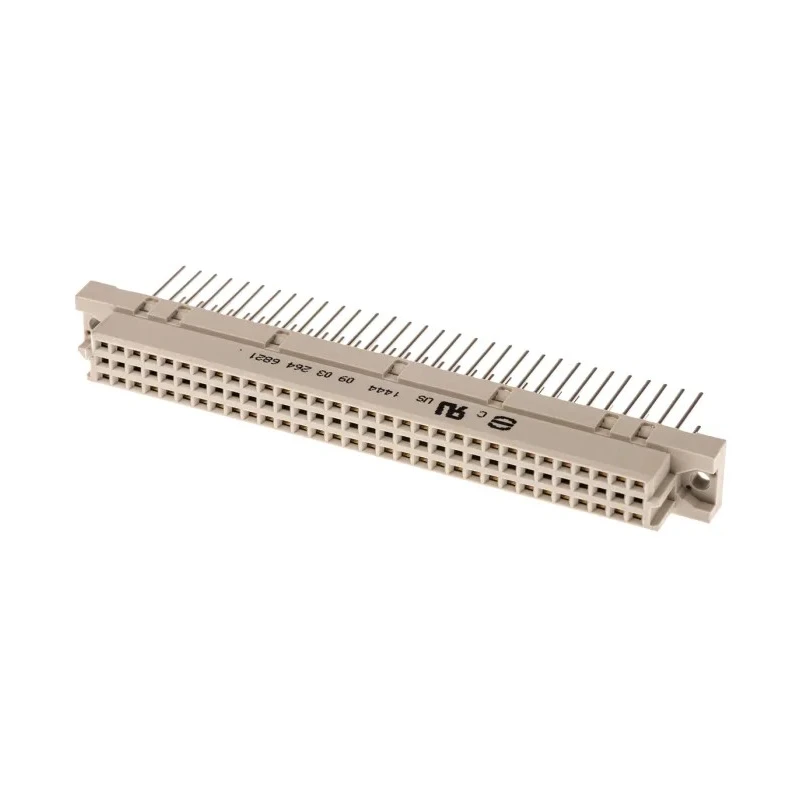

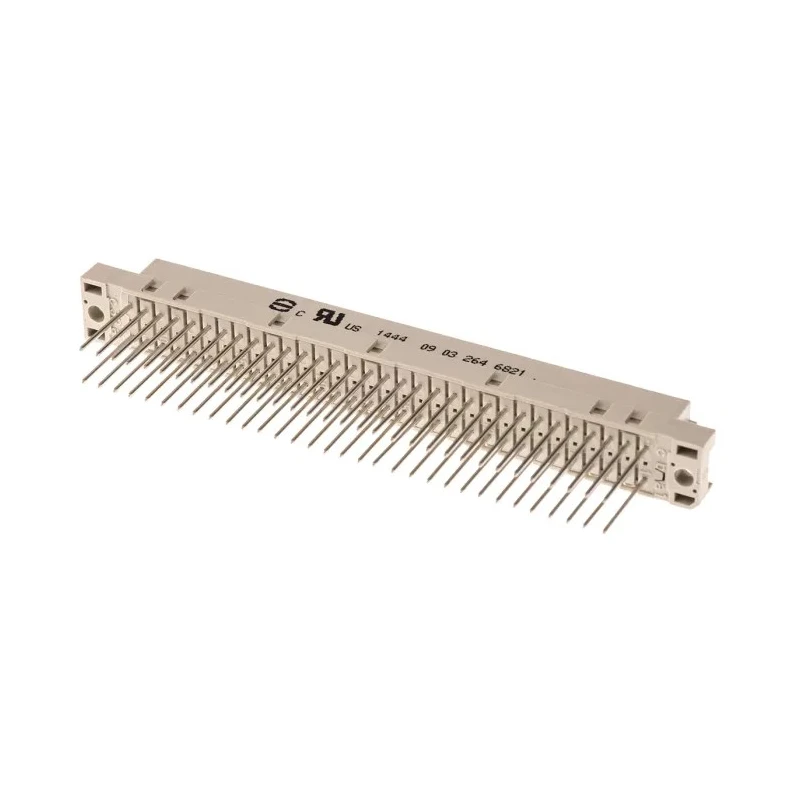

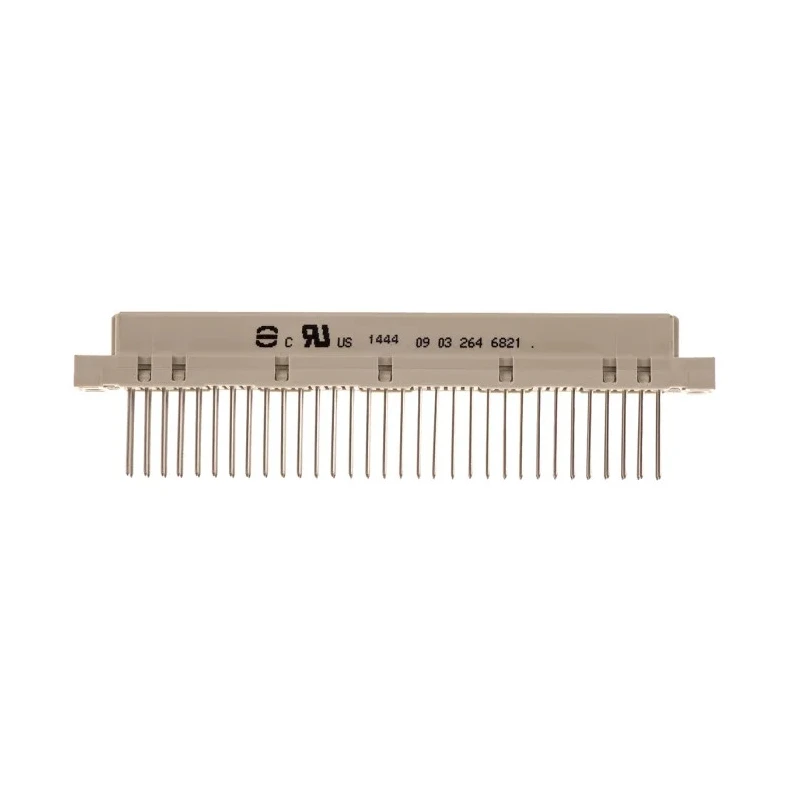

HARTING DIN 41612 64 Way 2.54 mm Pitch Type Through Hole Wire Wrap Class C2 2 Row Female Connector 09032646821

Free Delivery in India | Lowest Global Shipping Charges

HARTING DIN 41612 64 Way 2.54 mm Pitch Type Through Hole Wire Wrap Class C2 2 Row Female Connector 09032646821

Name: HARTING DIN 41612 64 Way 2.54 mm Pitch Type Through Hole Wire Wrap Class C2 2 Row Female Connector 09032646821
Brand: HARTING
SKU: 117863
Price: 20.22 USD
Availability: InStock



Category DIN 41612 Connector Brand HARTING Condition New

Specifications

Country of Origin	India
Brand	HARTING
Orientation	Straight
Current	2A
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Copper Alloy
Series	DIN 41612
Termination Type	Wire Wrap
Maximum Operating Temperature	125°C
Sub Type	C/2
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold over Nickel
Number of Contacts	64
Contact Gender	Female
Connector Gender	Female
Maximum Contact Resistance	20mΩ
Row Loading	A/C

Key Features

Features 64 contacts arranged in 2 rows with a straight orientation.
Class C2 wire wrap termination type with gold over nickel plated contacts.
Operates reliably between -55°C and 125°C for wide temperature applications.
Constructed with copper alloy contacts and polybutylene terephthalate housing for durability.
Through hole mount type ensuring secure insertion into PCBs.
Maximum contact resistance of up to 20 milliohms for efficient signal transmission.
Compatible with DIN 41612 standards for backplane and rack connectors.
Connector gender is female with row loading configuration A/C.

Product Description

HARTING 09032646821 DIN 41612 64 Way 2.54 mm Pitch Type Through Hole Wire Wrap Class C2 2 Row Female Connector offers a reliable and economical solution for PCB signal connections in industrial and electronic applications.

This DIN 41612 Type C backplane signal connector features gold over nickel plated copper alloy contacts, ensuring a high-quality electrical connection with a maximum contact resistance of 20 milliohms. Its polybutylene terephthalate housing provides mechanical robustness and resistance to environmental stress.

Rated for operation within -55°C to 125°C temperature range and supporting currents up to 2A, this connector is engineered to endure challenging environments commonly found in industrial, laboratory, manufacturing, and commercial electronic systems.

Its 64-contact design arranged in 2 rows and a straight orientation with through hole mounting type makes it ideal for integration in all 19 inch Eurocard racking systems and backplane architectures compliant with DIN 41612 standards.

Features 64 contacts arranged in 2 rows with a straight orientation. Class C2 wire wrap termination type with gold over nickel plated contacts. Operates reliably between -55°C and 125°C for wide temperature applications.

Constructed with copper alloy contacts and polybutylene terephthalate housing for durability. Through hole mount type ensuring secure insertion into PCBs. Maximum contact resistance of up to 20 milliohms for efficient signal transmission.

Compatible with DIN 41612 standards for backplane and rack connectors. Connector gender is female with row loading configuration A/C. Designed to support current ratings up to 2 Amperes. This connector is suitable for diverse applications including industrial automation, telecommunications, instrumentation systems, and electronic manufacturing.
